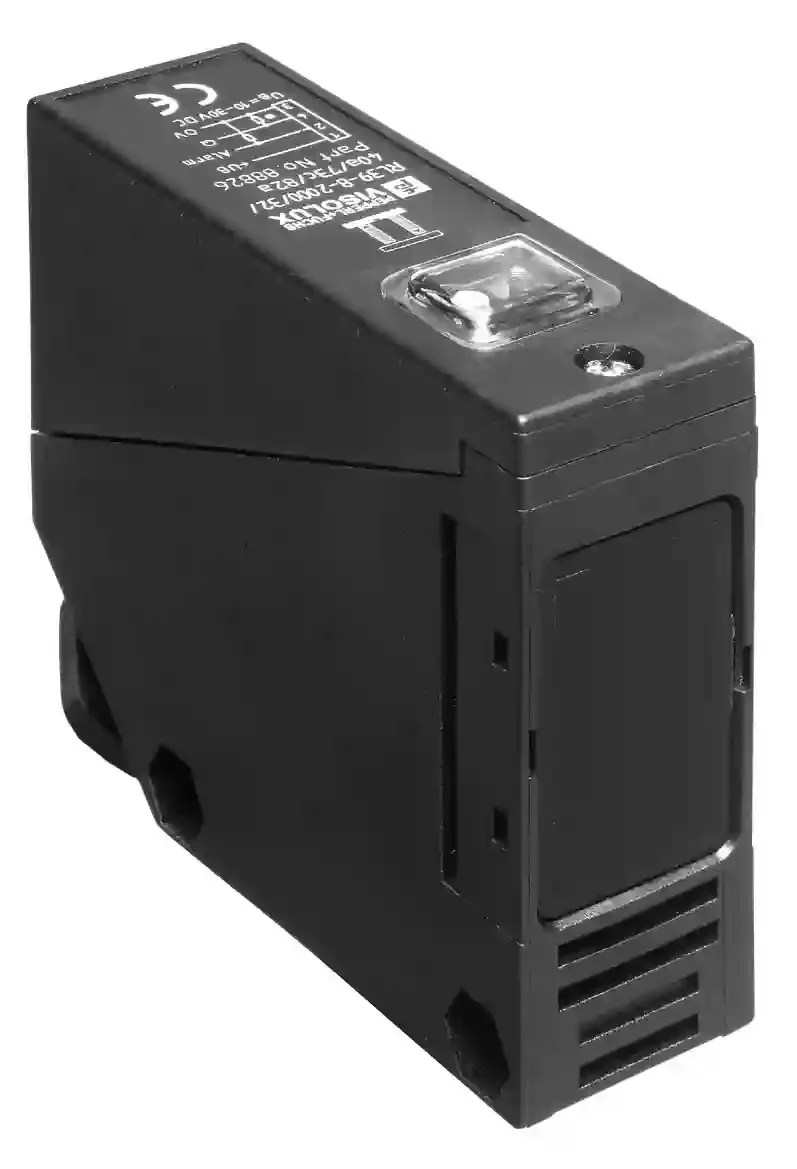

Pepperl Fuchs RLK39-8-2000-Z/31/40a/116

Diffuse mode sensor. Infrared light, Light-on/dark-on, switchable, Timer function, Degree of protection IP54. Detection range: 0 … 2000 mm. Adjustment range: 200 … 2000 mm. Reference target: standard white 200 mm x 200 mm. Light source: IRED. Light type: modulated infrared light. Ambient light limit: IEC / EN 60947-5-2 , 10000 Lux. MTTFd: 803 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED yellow: switching stateLED red: pre-fault indication. Control elements: Sensing range adjuster, light-on/dark-on changeover switch. Control elements: switch for timer function. Operating voltage: 12 … 240 V DC 24 … 240 V AC (50 … 60 Hz). Ripple: 10 %. No-load supply current: ≤ 50 mA. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Caution!The protection class 2 is only valid when the terminal compartment is closed. output circuit has basic insulation to control circuit according to IEC/EN 61140. Power consumption: ≤ 3 VA. Time delay before availability: ≤ 300 ms. Switching type: light/dark on. Signal output: 1 relay output. Switching voltage: max. 240 V AC ; 150 V DC. Switching current: max. 3 A. Switching power: DC: max. 90 W AC: max. 750 VA. Switching frequency: ≤ 25 Hz. Response time: ≤ 20 ms. Timer function: On-/off-delay or pulse extension on choice. Product standard: EN 60947-5-2. CCC approval: Certified by China Compulsory Certification (CCC). Approvals: CE. Ambient temperature: -25 … 55 °C (-13 … 131 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP54. Connection: terminal compartment PG9 , ≤ 0.75 mm2. Material: . HousingPBTOptical facePMMA: . Housing: PBT. Optical face: PMMA. Mass: approx. 110 g. Dimensions: . Height64 mmWidth25 mmDepth75 mm: . Height: 64 mm. Width: 25 mm. Depth: 75 mm. Scope of delivery: Mounting aid
