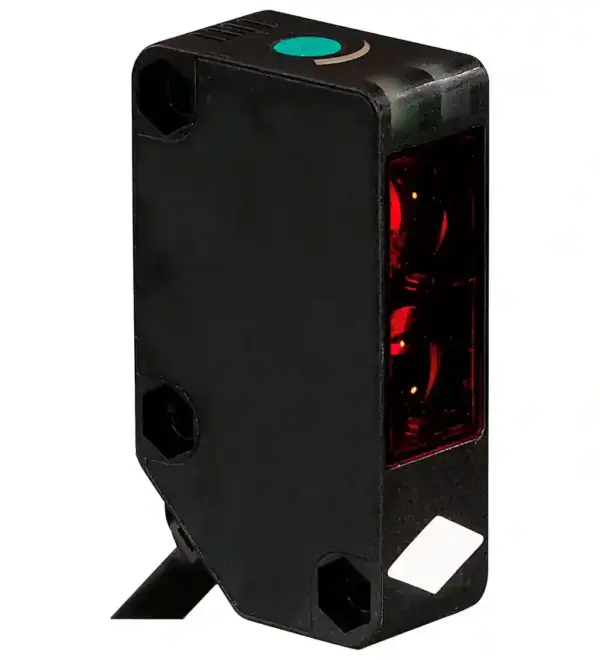

Pepperl Fuchs RLK31-8-2500-IR/31/115

Diffuse mode sensor. Diffuse mode sensor, plastic housing, 2500 mm adjustable detection range, AC/DC version, infrared light, light on, relay contact output, fixed cable, Operating voltage AC / DC, Highly visible LED, Relay output, 1 potential free alternator, Compact and stable housing, Protection class II. Detection range: 0 … 2500 mm adjustable. Reference target: standard white 200 mm x 200 mm. Light source: IRED. Light type: modulated infrared light , 850 nm. Polarization filter: no. Diameter of the light spot: approx. 50 mm at a distance of 2.5 m. Opening angle: 2 °. Ambient light limit: 50000 Lux ; according to EN 60947-5-2. MTTFd: 790 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow, lights up with receiver lit. Control elements: Sensing range adjuster. Operating voltage: 24 … 240 V AC 12 … 240 V DC. No-load supply current: ≤ 40 mA. Power consumption: ≤ 2 VA. Switching type: light-on. Signal output: Relay, 1 alternator. Switching voltage: max. 240 V AC/DC. Switching current: max. 3 A. Switching power: DC: max. 150 W AC: max. 750 VA. Switching frequency: ≤ 20 Hz. Response time: ≤ 25 ms. Product standard: EN 60947-5-2. Protection class: II , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 … 55 °C (-13 … 131 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: Fixed cable 1.94 m , 5-wire. Material: . HousingPolycarbonateOptical facePMMA: . Housing: Polycarbonate. Optical face: PMMA. Mass: 155 g. Dimensions: . Height62 mmWidth18 mmDepth35 mm: . Height: 62 mm. Width: 18 mm. Depth: 35 mm
