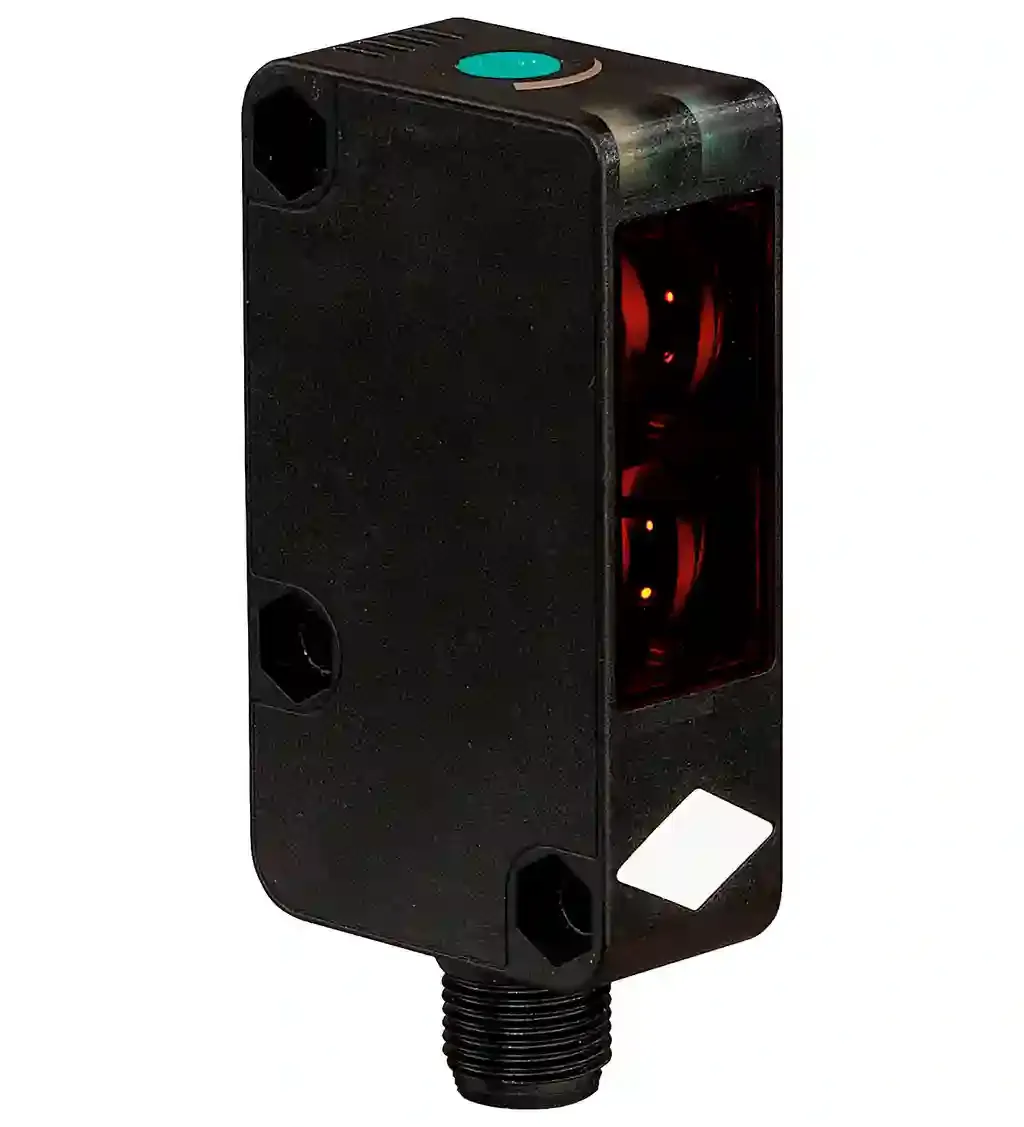

Pepperl Fuchs RL31-8-1200-RT/73c/136

Diffuse mode sensor. Diffuse mode sensor, plastic housing, 1200 mm adjustable detection range, red light, light on, push-pull output, M12 plug, Highly visible LED, Powerful push-pull output, Red transmission light, Compact and stable housing, Protection class II. Detection range: 0 … 1200 mm adjustable. Detection range max.: 0 … 1200 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light , 630 nm. Diameter of the light spot: approx. 25 mm at a distance of 1.2 m. Opening angle: 2 °. Ambient light limit: 50000 Lux ; according to EN 60947-5-2. MTTFd: 920 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow, lights up with receiver lit. Control elements: Sensing range adjuster. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 20 mA. Switching type: light-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 1.5 V. Switching frequency: ≤ 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. Protection class: II , rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 … 55 °C (-22 … 131 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: 4-pin, M12 x 1 connector. Material: . HousingPolycarbonateOptical facePMMA: . Housing: Polycarbonate. Optical face: PMMA. Mass: 25 g. Dimensions: . Height62 mmWidth18 mmDepth35 mm: . Height: 62 mm. Width: 18 mm. Depth: 35 mm
