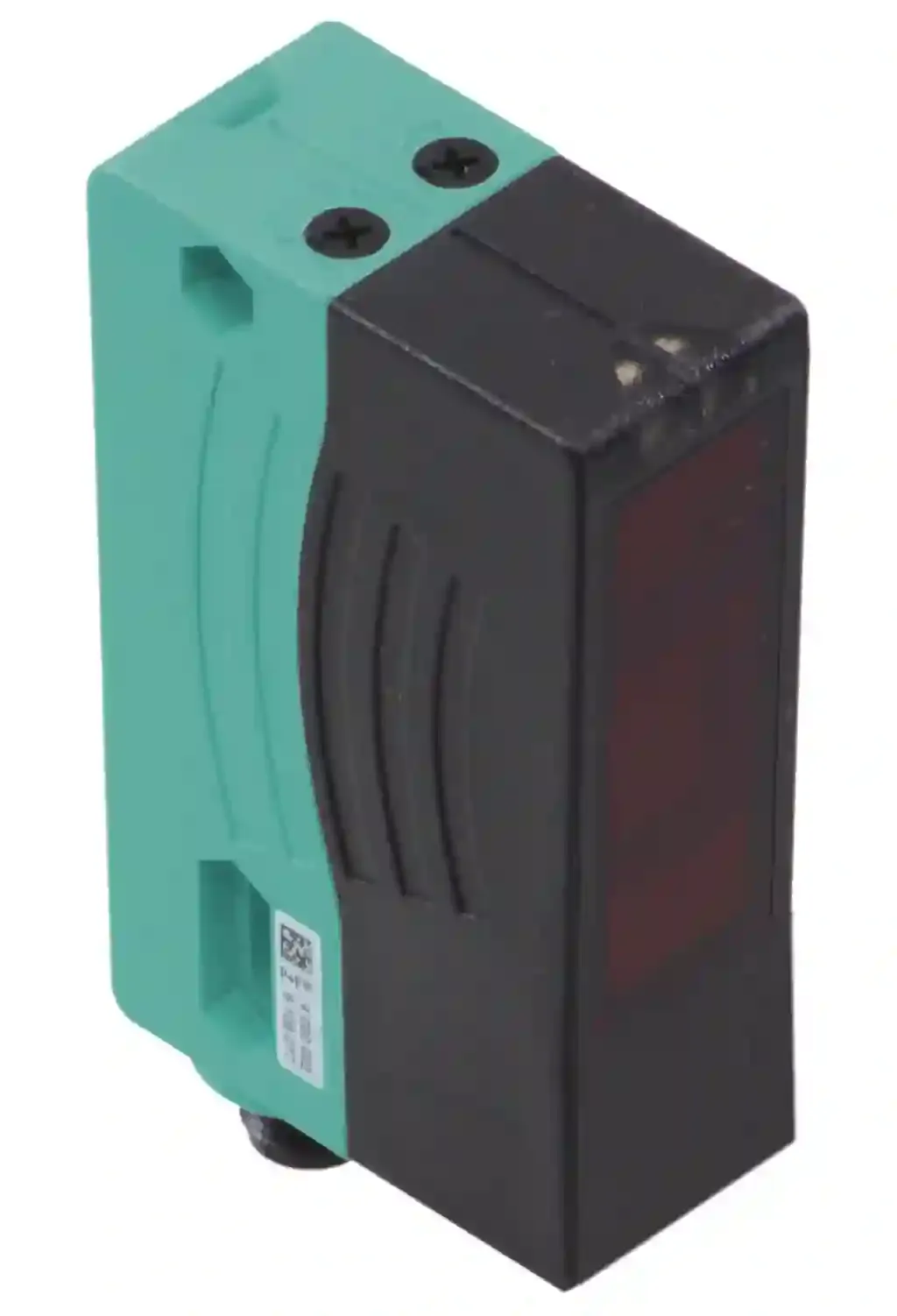

Pepperl Fuchs RL28-8-H-2000-IR/47/105

Background suppression sensor. Background suppression sensor, Ultra bright LEDs for power on and switching state, Minimal black-white difference through the infrared transmission LED, Not sensitive to ambient light, even with energy saving lamps, Waterproof, degree of protection IP67, Protection class II. Detection range: 20 … 2000 mm. Detection range min.: 20 … 200 mm. Detection range max.: 20 … 2000 mm. Background suppression: max. + 10 % of the upper limit of the detection range. Light source: IRED. Light type: modulated infrared light , 880 nm. Black-white difference (6 %/90 %): < 40 %. Diameter of the light spot: approx. 70 mm at a distance of 2000 mm. Opening angle: transmitter 2°receiver 2°. Ambient light limit: 50000 Lux. MTTFd: 720 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range. Control elements: Sensing range adjuster , Light-on/dark-on changeover switch. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 40 mA. Switching type: light/dark on switchable. Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 250 Hz. Response time: 2 ms. Product standard: EN 60947-5-2. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 … 60 °C (-40 … 140 °F). Storage temperature: -40 … 60 °C (-40 … 140 °F). Degree of protection: IP67. Connection: 5-pin, M12 x 1 connector. Material: . HousingPlastic ABSOptical faceplasticConnectorplastic: . Housing: Plastic ABS. Optical face: plastic. Connector: plastic. Mass: 70 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm
