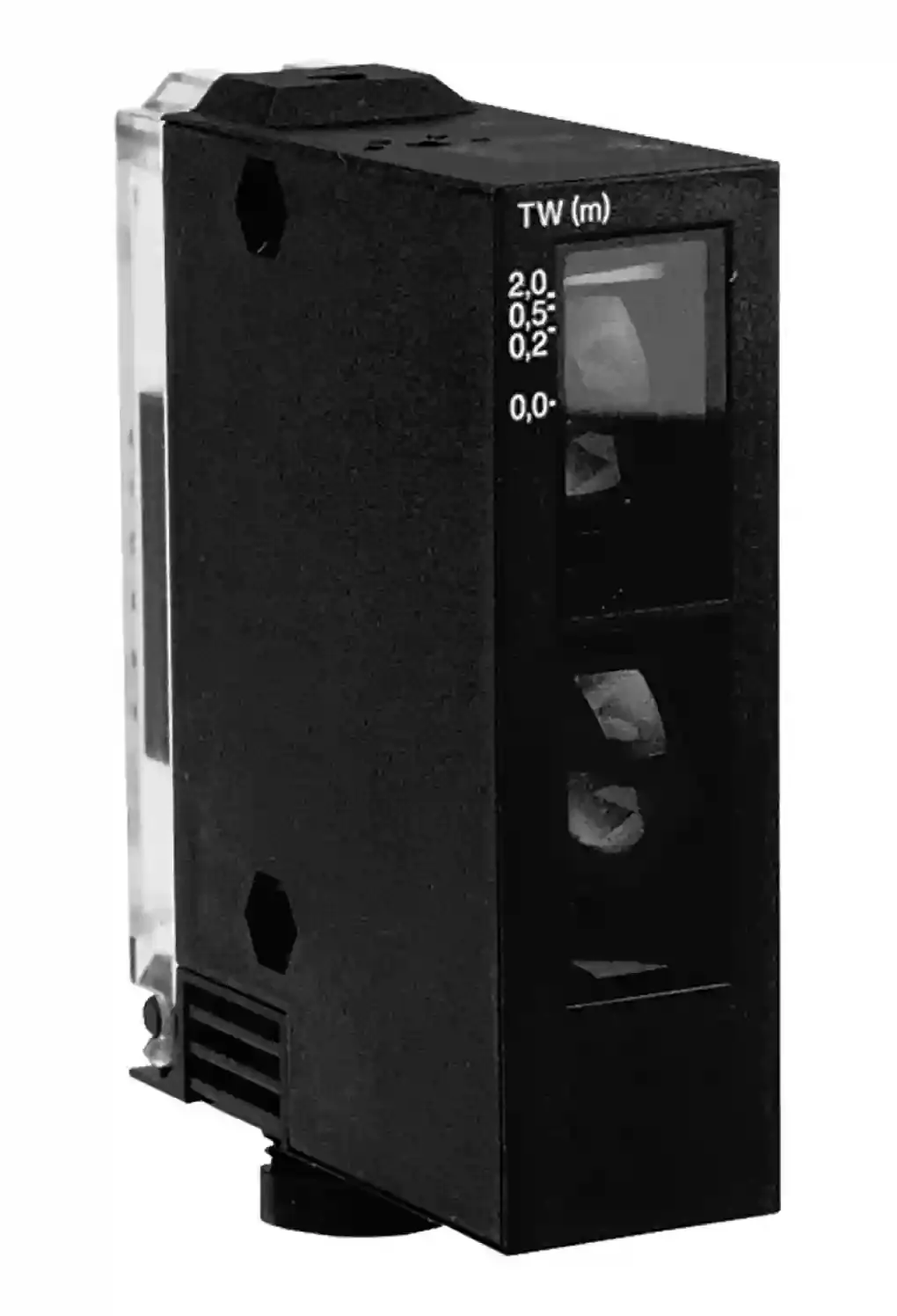

Pepperl Fuchs RL23-8-H-1000-IR/104/116/125

Background suppression sensor. Background suppression sensor, Adjustable background suppression, Infrared light, Sturdy plastic housing, Optical surface made of scratch-resistant glass, Protected against mutual interference (no cross-talk). Detection range: 50 … 1000 mm. Detection range min.: 50 … 150 mm. Detection range max.: 50 … 1000 mm. Light source: IRED. Light type: modulated infrared light. Black-white difference (6 %/90 %): < 10 %. Diameter of the light spot: 25 mm at 1000 mm sensor range. Opening angle: 1.5 °. Ambient light limit: 12000 Lux. MTTFd: 540 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED yellow, lights up with receiver lit. Control elements: Programming switch for light/dark switching. Control elements: Sensing range adjuster. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: 100 mA. Test input: emitter deactivation at +UB. Switching type: light/dark on. Signal output: 2 PNP, complementary, 1 NPN short-circuit protected, reverse polarity protected. Switching voltage: 30 V DC. Switching current: max. 200 mA. Switching frequency: 10 Hz. Response time: 50 ms. Product standard: EN 60947-5-2. UL approval: cULus. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -20 … 75 °C (-4 … 167 °F). Degree of protection: IP65. Connection: terminal compartment. Material: . HousingTerluran® GV15Optical faceglass: . Housing: Terluran® GV15. Optical face: glass. Mass: 180 g. Dimensions: . Height91 mmWidth26.8 mmDepth67.6 mm: . Height: 91 mm. Width: 26.8 mm. Depth: 67.6 mm
