Pepperl Fuchs R-SP-E12

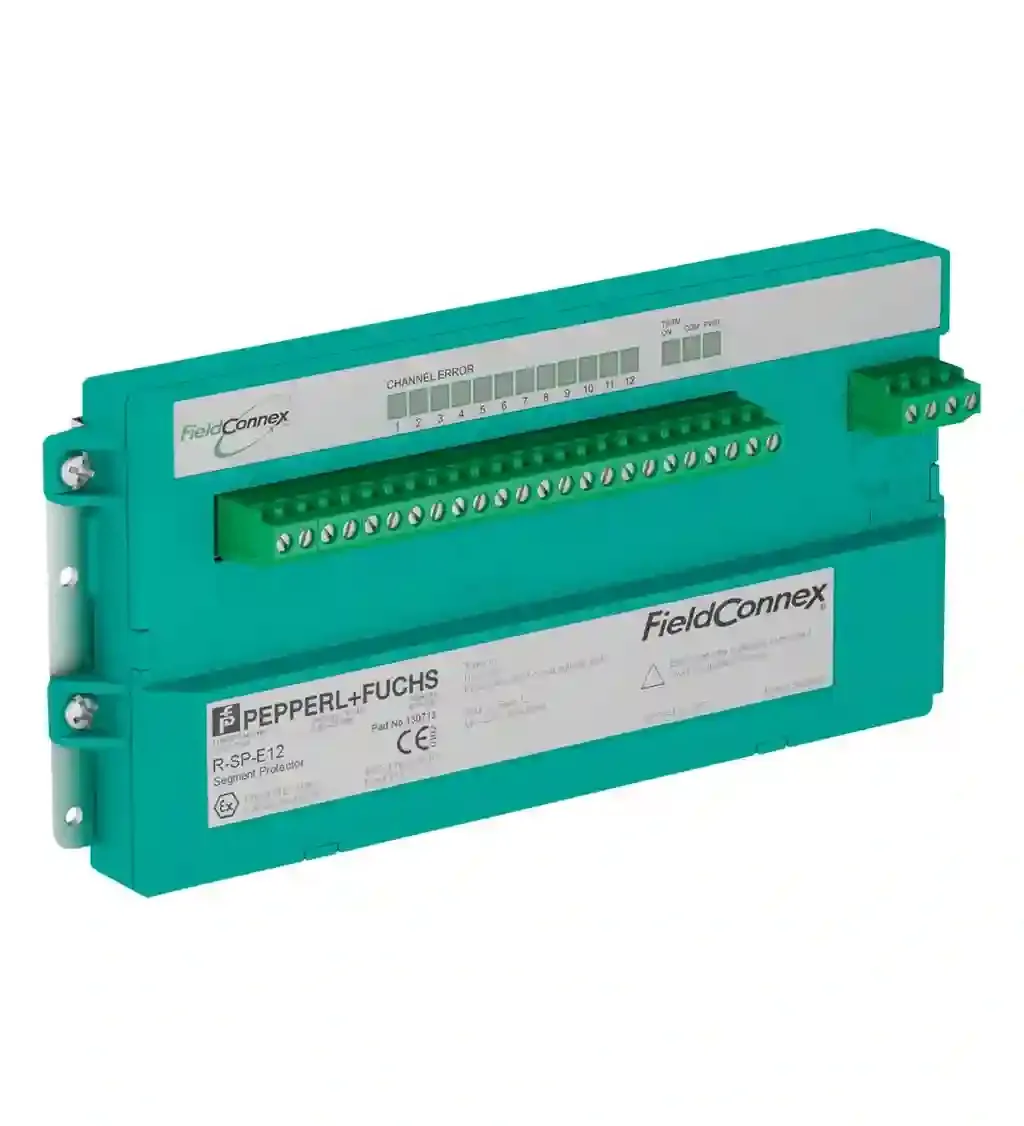

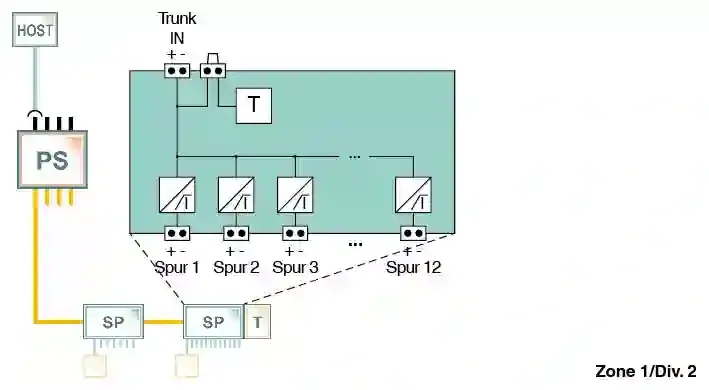

Segment Protector. Segment protector, junction box for fieldbus with short-circuit protection, Field junction box, module for DIN rail mounting, 12 increased safety outputs (Ex e), Short circuit current limitation per output, Segment Protector in Zone 1/Div. 2, Instruments in Zone 1/Div. 1, For FOUNDATION Fieldbus H1 and PROFIBUS PA, IECEx approval, Europe, Device coupler location: Zone 1 – high-power trunk, Instrument location / spur protection: Zone 1 – increased safety, Function: Device coupler. Design / Mounting: Cabinet installation. Installation in hazardous area: Zone 1 / Div. 2. Power dissipation: 250 mW. Main cable (Trunk): . Cable entry typescrew terminal , fixedRated voltage9 … 32 V DC: . Cable entry type: screw terminal , fixed. Rated voltage: 9 … 32 V DC. Outputs: . Number of outputs12Cable entry typescrew terminal , fixedRated voltagemax. 32 VRated currentmax. 40 mAShort-circuit currentmax. 52 mA: . Number of outputs: 12. Cable entry type: screw terminal , fixed. Rated voltage: max. 32 V. Rated current: max. 40 mA. Short-circuit current: max. 52 mA. Self current consumption: max. 9 mA. Voltage drop main cable/outputs: max. 1.3 V. Terminating resistor: selectable 100 Ω integrated. Surge protection: trunk, spurs overvoltage protected if voltage exceeds typ. 39 V, max. 41 V. LED PWR: green: Fieldbus voltage > 10 V. LED CHANNEL ERROR: red flashing: short-circuit. LED COM: yellow: bus activity. LED TERM ON: yellow: termination activated. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21:2006. Degree of protection: IEC 60529. Fieldbus standard: IEC 61158-2. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -40 … 70 °C (-40 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: 95 % non-condensing. Shock resistance: 15 g , 11 ms. Vibration resistance: 5 g , 10 … 150 Hz. Connection type: screw terminal , fixed. Core cross section: max. 2.5 mm2 / AWG 12-24. Housing material: Polycarbonate. Degree of protection: IP20. Mass: 800 g. Dimensions: . Height100 mmWidth216 mmDepth50 mm: . Height: 100 mm. Width: 216 mm. Depth: 50 mm. Mounting: DIN rail mounting. Coating: resin filled. EU-type examination certificate: PTB 04 ATEX 2100 X. Marking II 2 G Ex eb mb IIC T4 Gb: . Marking: II 2 G Ex eb mb IIC T4 Gb. Maximum values: . Rated voltage≤ 35 VProspective short-circuit current100 A: . Rated voltage: ≤ 35 V. Prospective short-circuit current: 100 A. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-18:2015+A1:2017: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-18:2015+A1:2017. IECEx approval: . IECEx certificateIECEx PTB 05.0010XIECEx markingEx eb mb IIC T4 Gb: . IECEx certificate: IECEx PTB 05.0010X. IECEx marking: Ex eb mb IIC T4 Gb. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
