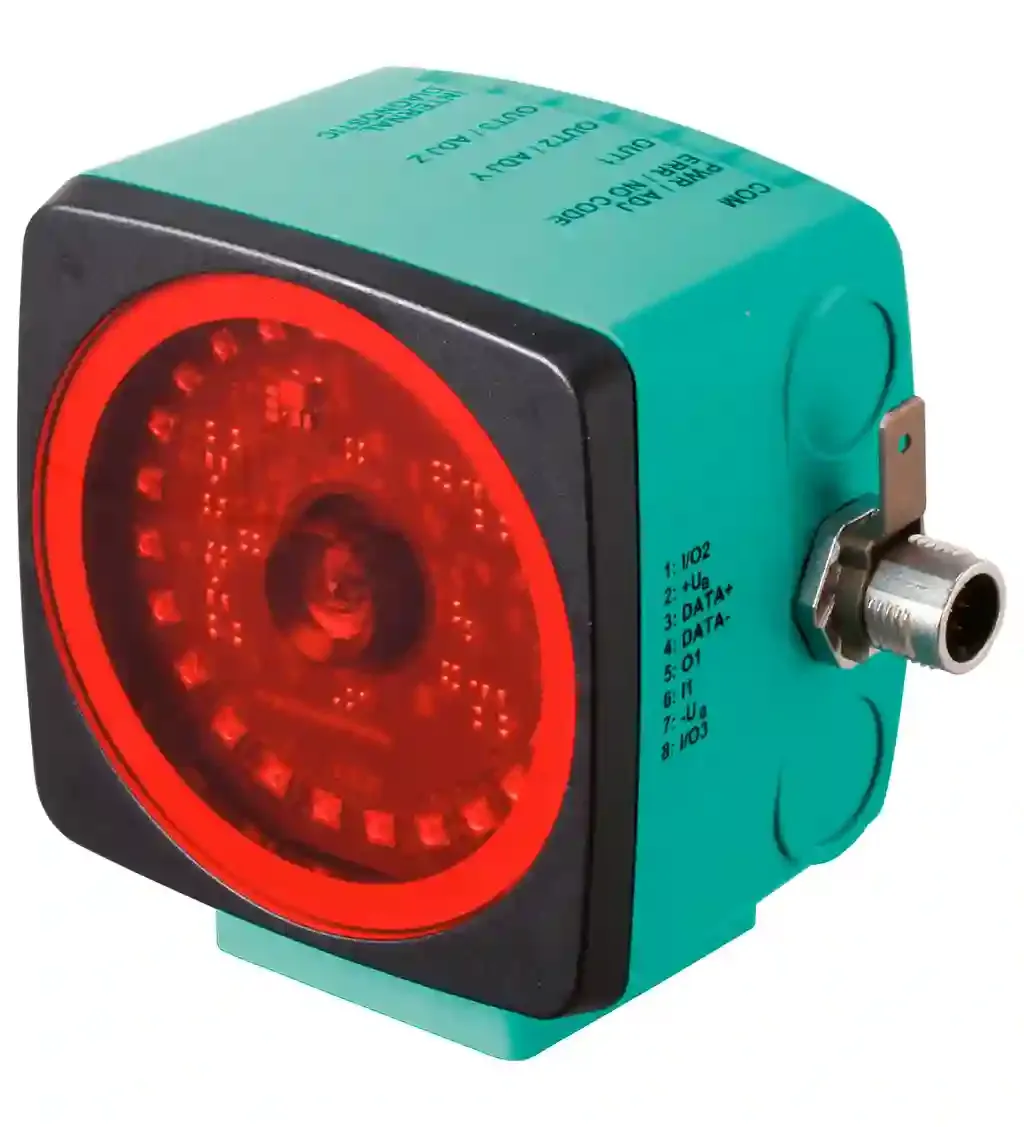

Pepperl Fuchs PXV100-F200-R4-V19

Optical reading head. Read head for incident light positioning system, RS-485 interface, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Travel ranges up to 10 km. Passage speed: ≤ 8 m/s. Measuring length: max. 10000 m. Light type: Integrated LED lightning (red). Scan rate: 40 s-1. Read distance: 100 mm. Depth of focus: ± 50 mm. Reading field: 115 mm x 73 mm. Ambient light limit: 100000 Lux. Accuracy: ± 0.2 mm. Camera: . TypeCMOS , Global shutter: . Type: CMOS , Global shutter. Processor: . Clock pulse frequency600 MHzSpeed of computation4800 MIPSDigital resolution32 Bit: . Clock pulse frequency: 600 MHz. Speed of computation: 4800 MIPS. Digital resolution: 32 Bit. MTTFd: 98 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED indication: 7 LEDs (communication, alignment aid, status information). Operating voltage: 15 … 30 V DC , PELV. No-load supply current: max. 200 mA. Power consumption: 3 W. Interface type: RS-485 – Interface. Data output code: binary code. Transfer rate: 38400 … 230400 Bit/s. Termination: Switchable terminal resistor. Query cycle time: ≥ 10 ms. Interface type: USB Service. Input type: 1 to 3 functional inputs , programmable. Input impedance: ≥ 27 kΩ. Output type: 1 to 3 switch outputs , PNP , programmable , short-circuit protected. Switching voltage: Operating voltage. Switching current: 150 mA each output. Photobiological safety: exempt group according to EN 62471:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. CE conformity: CE. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 … 60 °C (32 … 140 °F) , -20 … 60 °C (-4 … 140 °F) (noncondensing; prevent icing on the lens!). Storage temperature: -20 … 85 °C (-4 … 185 °F). Relative humidity: 90 % , noncondensing. Connection type: 8-pin, M12 x 1 connector. Degree of protection: IP67. Material: . HousingPC/ABS: . Housing: PC/ABS. Mass: approx. 160 g. Dimensions: . Height70 mmWidth70 mmDepth50 mm: . Height: 70 mm. Width: 70 mm. Depth: 50 mm. X resolution (protocol): 1 mm. Y resolution (protocol): 1 mm. Code tape orientation: 0 °. Address: 0. Baud rate: 115200 Bd. Bus termination: ON. “No Position” X value: 0. “No Position” Y value: 0. “No Position” speed value: 127. Overspeed threshold (protocol): 12.5 m/s. X value in case of error: Error number. Y value in case of error: Error number. Speed value in case of error: Error number. Code tape width: one-rowed. X positon offset: 0 mm. Function input/output: inactive
