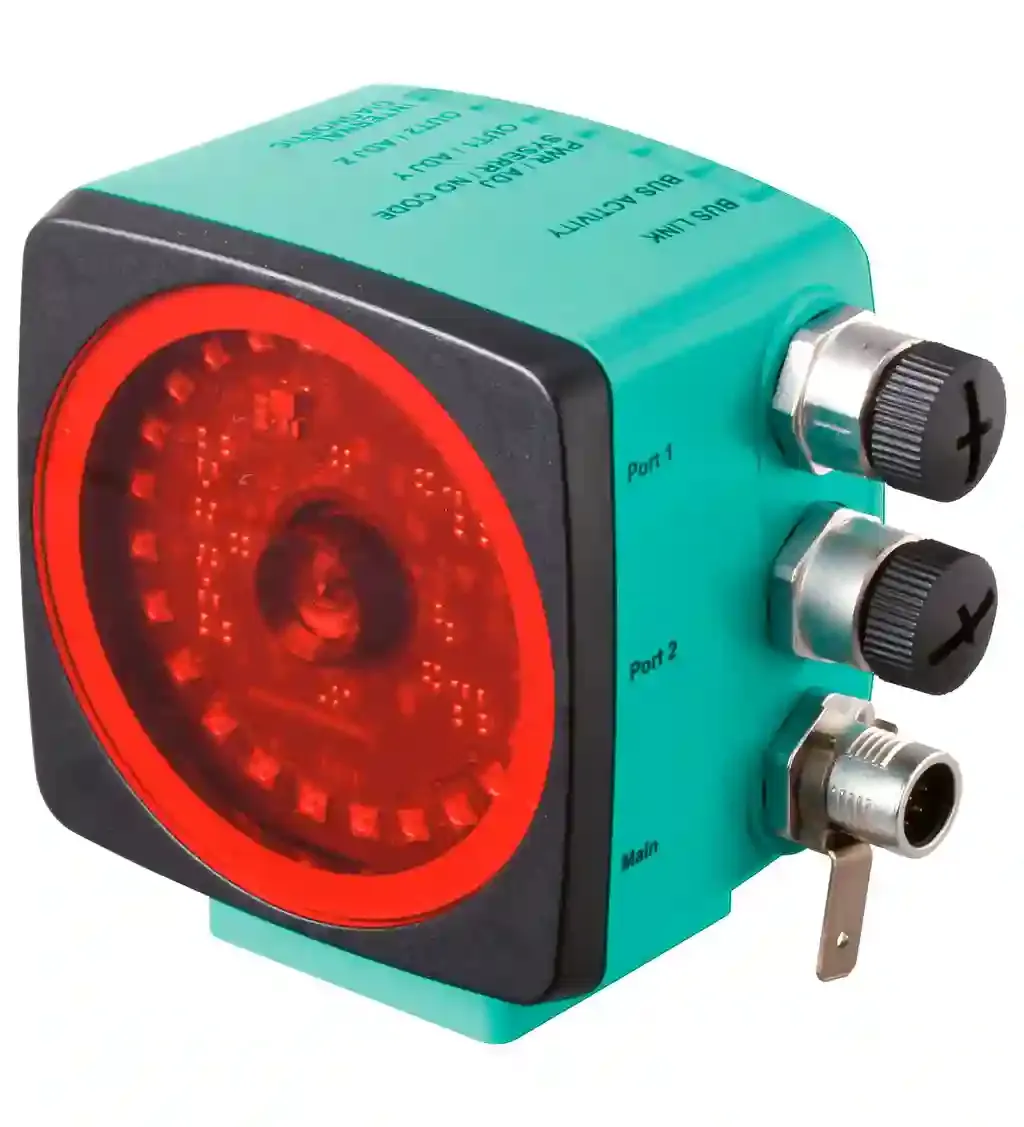

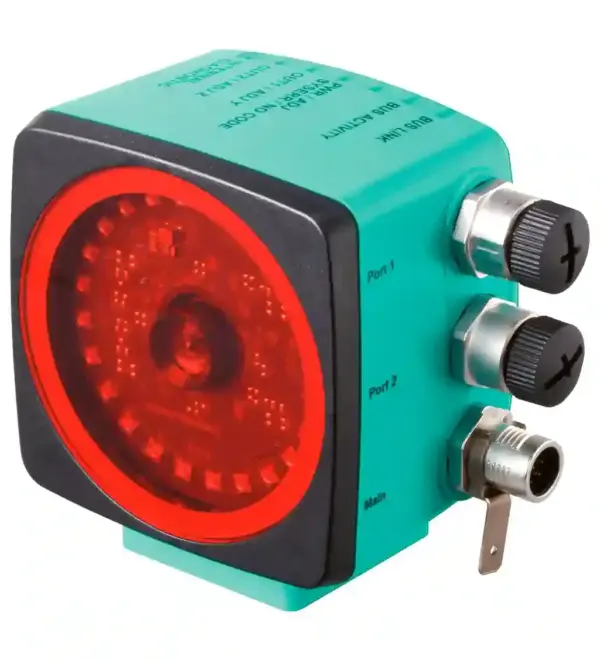

Pepperl Fuchs PXV100-F200-B25-V1D

Optical reading head. Read head for incident light positioning system, EtherNet/IP, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Integrated switch, Travel ranges up to 10 km. Passage speed: ≤ 8 m/s. Measuring length: max. 10000 m. Light type: Integrated LED lightning (red). Scan rate: 40 s-1. Read distance: 100 mm. Depth of focus: ± 50 mm. Reading field: 115 mm x 73 mm. Ambient light limit: 100000 Lux. Accuracy: ± 0.2 mm. Camera: . TypeCMOS , Global shutter: . Type: CMOS , Global shutter. Processor: . Clock pulse frequency600 MHzSpeed of computation4800 MIPSDigital resolution32 Bit: . Clock pulse frequency: 600 MHz. Speed of computation: 4800 MIPS. Digital resolution: 32 Bit. MTTFd: 99 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED indication: 7 LEDs (communication, alignment aid, status information). Operating voltage: 15 … 30 V DC , PELV. No-load supply current: max. 400 mA. Power consumption: 6 W. Interface type: 100 BASE-TX. Protocol: EtherNet/IP. Transfer rate: 100 MBit/s. Interface type: USB Service. Input type: 1 funtion input0-level: -UBor unwired1-level: +8 V … +UB , programmable. Input impedance: ≥ 27 kΩ. Output type: 1 to 3 switch outputs , programmable , short-circuit protected. Switching voltage: Operating voltage. Switching current: 150 mA each output. Photobiological safety: exempt group according to EN 62471:2008. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. CE conformity: CE. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 … 60 °C (32 … 140 °F) , -20 … 60 °C (-4 … 140 °F) (noncondensing; prevent icing on the lens!). Storage temperature: -20 … 85 °C (-4 … 185 °F). Relative humidity: 90 % , noncondensing. Connection type: 8-pin, M12x1 connector, standard (supply+IO) 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN). Degree of protection: IP67. Material: . HousingPC/ABS: . Housing: PC/ABS. Mass: approx. 200 g. Dimensions: . Height70 mmWidth70 mmDepth50 mm: . Height: 70 mm. Width: 70 mm. Depth: 50 mm
