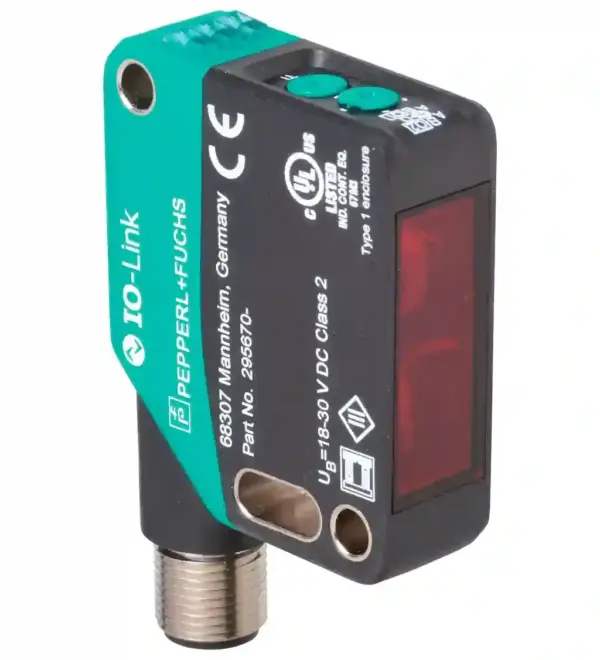

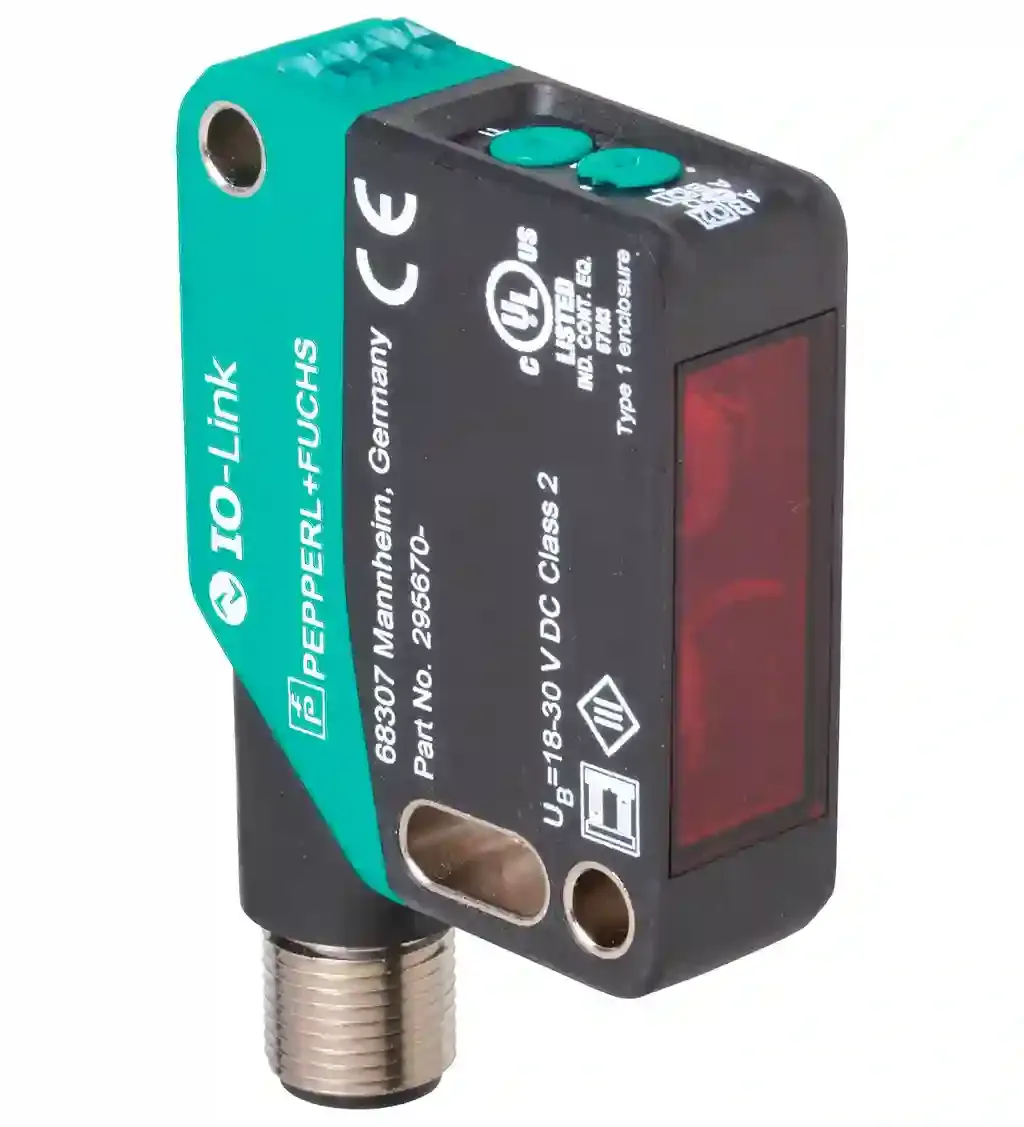

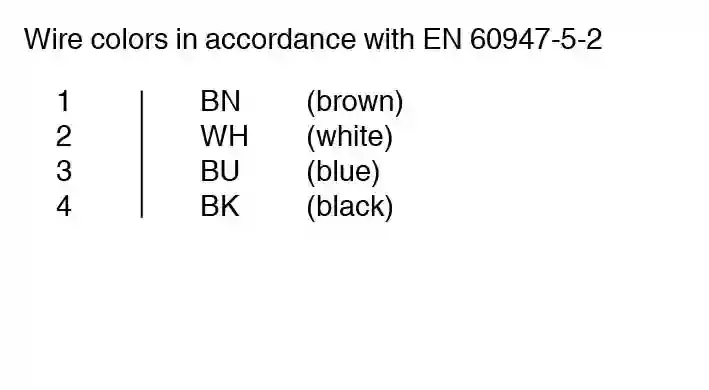

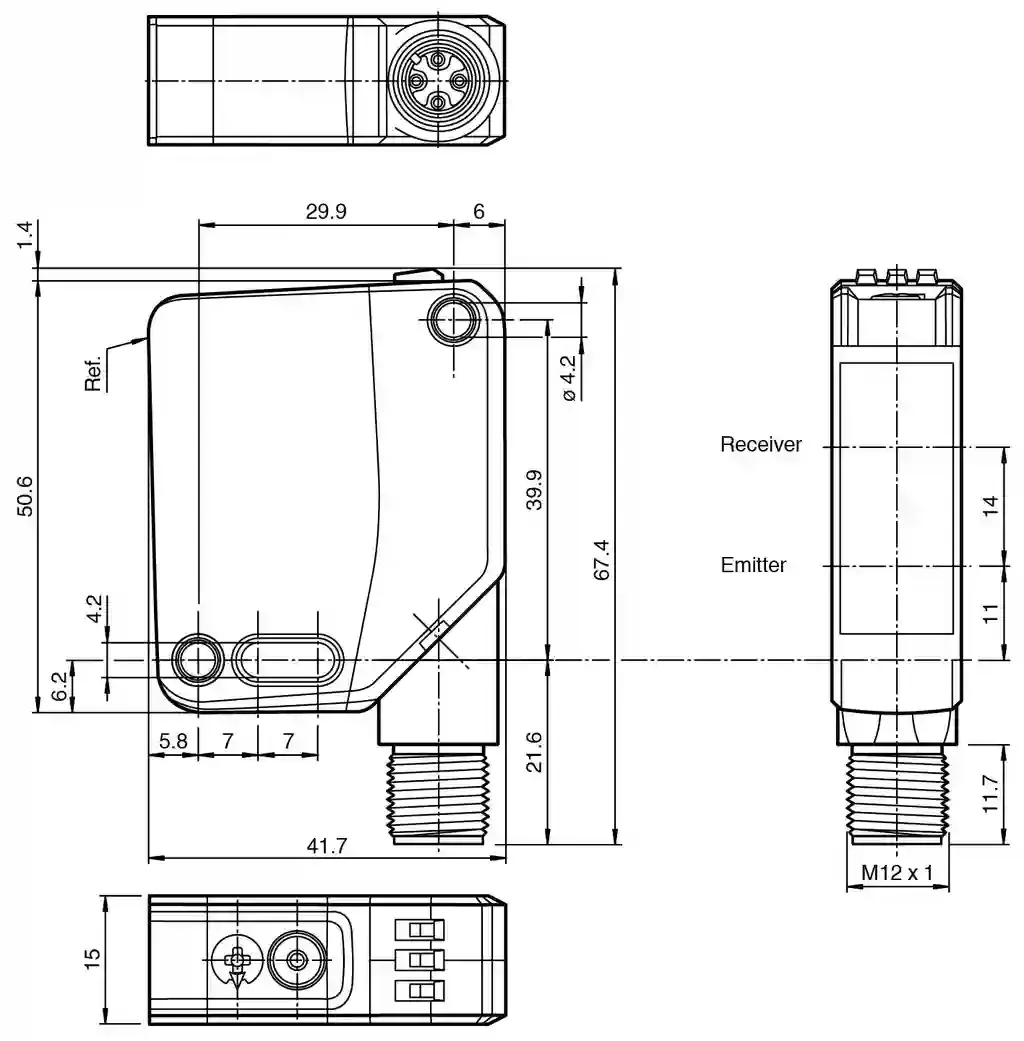

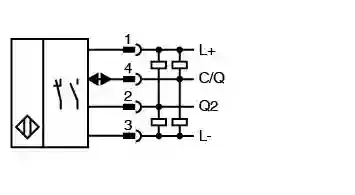

Pepperl Fuchs OQT400-R200-2EP-IO-V1

Triangulation sensor (SbR). Measuring sensor with multiple switch points, Medium design with versatile mounting options, Multi Pixel Technology (MPT) – flexibility and adaptability, Reduction of device variety – several switch points within one sensor, Reliable detection of all surfaces, independent of color and structure, Low sensitivity to target color. Detection range: 40 … 400 mm. Detection range min.: 40 … 100 mm. Detection range max.: 40 … 400 mm. Adjustment range: 100 … 400 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Black-white difference (6 %/90 %): < 5 %. Diameter of the light spot: approx. 15 mm at a distance of 400 mm. Opening angle: approx. 2.5 °. Ambient light limit: EN 60947-5-2 : 70000 Lux. MTTFd: 600 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:constantly on – power onflashing (4Hz) – short circuitflashing with short break (1 Hz) – IO-Link mode. Function indicator: LED yellow:constantly on – switch output activeconstantly off – switch output inactive. Control elements: Teach-In key. Control elements: 5-step rotary switch for operating modes selection. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA at 24 V supply voltage. Protection class: III. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Device profile: Identification and diagnosisSmart Sensor type 0. Device ID: 0x111801 (1120257). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: Process data input 2 BitProcess data output 2 Bit. SIO mode support: yes. Compatible master port type: A. Switching type: The default setting is: C/Q – Pin4: NPN normally open, PNP normally closed, IO-Link Q2 – Pin2: NPN normally-open, PNP normally-closed. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 217 Hz. Response time: 2.3 ms. Communication interface: IEC 61131-9. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 … 60 °C (-40 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67 / IP69 / IP69K. Connection: 4-pin, M12 x 1 connector, 90° rotatable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 37 g. Dimensions: . Height50.6 mmWidth15 mmDepth41.7 mm: . Height: 50.6 mm. Width: 15 mm. Depth: 41.7 mm
