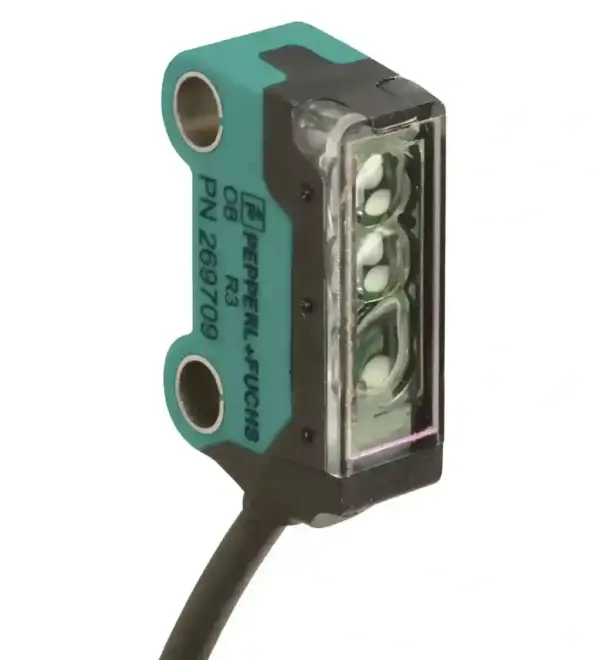

Pepperl Fuchs OBT80-R3-E0-P

Triangulation sensor (BGS). Triangulation sensor with background suppression for standard applications, miniature design, 80 mm detection range, red light, light on, NPN output, 2 m fixed cable, 45° cable outlet for maximum mounting freedom under extremely tight space constraints, Highly visible light spot, even on dark materials, Precision object detection, almost irrespective of the color, Extremely long detection range paves the way for new applications. Detection range: 15 … 80 mm. Reference target: standard black, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light , 630 nm. Black-white difference (6 %/90 %): < 20 %. Angle deviation: approx. 2 °. Diameter of the light spot: approx. 5 mm at a distance of 80 mm. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 800 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: LED yellow: lights when object is detected. Operating voltage: 10 … 30 V DC , class 2. No-load supply current: < 10 mA. Protection class: III. Switching type: NO contact / light-on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 50 mA. Voltage drop: ≤ 1.5 V DC. Switching frequency: approx. 800 Hz. Response time: 600 µs. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 60 °C (-13 … 140 °F). Storage temperature: -30 … 70 °C (-22 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC/ABS and TPUOptical facePCCablePUR: . Housing: PC/ABS and TPU. Optical face: PC. Cable: PUR. Mass: approx. 20 g. Dimensions: . Height26 mmWidth7.5 mmDepth13.8 mm: . Height: 26 mm. Width: 7.5 mm. Depth: 13.8 mm. Cable length: 2 m
