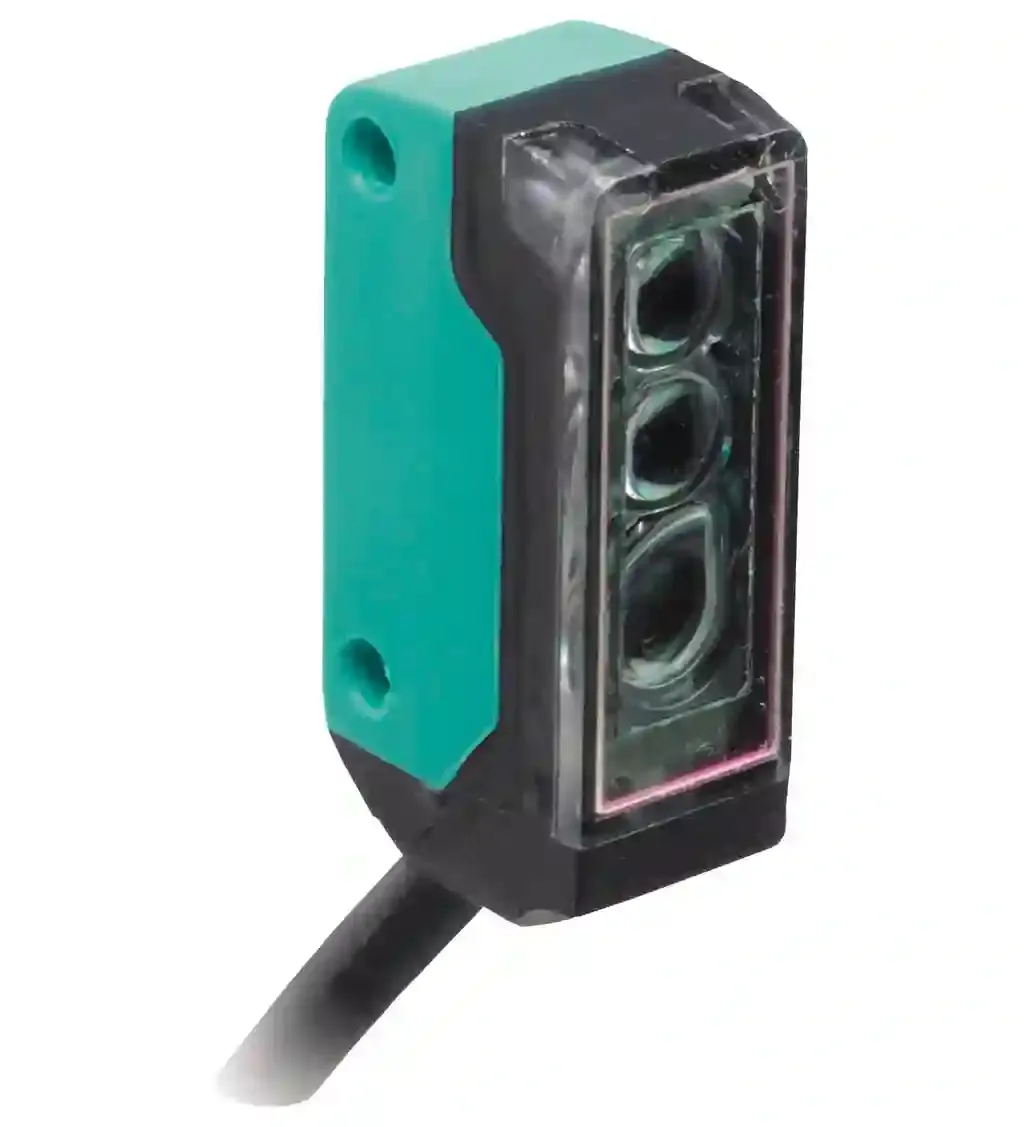

Pepperl Fuchs OBT50-R2-E0-P-L

Triangulation sensor (BGS). Laser triangulation sensor with background suppression, ultra-small design with M2 mounting, 50 mm sensing range, light on, NPN output, 2 m fixed cable, Ultra-small housing design, DuraBeam Laser Sensors – durable and employable like an LED, 45° cable outlet for maximum mounting freedom under extremely tight space constraints, Precision object detection, almost irrespective of the color. Detection range: 7 … 50 mm. Reference target: standard white, 100 mm x 100 mm. Light source: laser diode. Light type: modulated visible red light , 680 nm. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length680 nmBeam divergence> 5 mradPulse lengthapprox. 3 µsRepetition rateapprox. 16.6 kHzmax. pulse energy9.5 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 680 nm. Beam divergence: > 5 mrad. Pulse length: approx. 3 µs. Repetition rate: approx. 16.6 kHz. max. pulse energy: 9.5 nJ. Black-white difference (6 %/90 %): < 10 % at 50 mm. Diameter of the light spot: approx. 0.8 mm at a distance of 50 mm. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 800 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: LED yellow ON: lights when object is detected. Operating voltage: 12 … 24 V. No-load supply current: < 10 mA. Protection class: III. Switching type: NO contact / light-on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 50 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: approx. 2 kHz. Response time: 250 µs. Product standard: EN 60947-5-2. Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012 EN 60825-1:2007 UL 60947-5-2: 2014. UL approval: E87056 , cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. FDA approval: IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -30 … 70 °C (-22 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC/ABS and TPUOptical facePCCablePUR: . Housing: PC/ABS and TPU. Optical face: PC. Cable: PUR. Installation: Fixing screws , 2 x M2 allen head screws included with delivery. Mass: approx. 20 g. Dimensions: . Height24 mmWidth7.5 mmDepth11.2 mm: . Height: 24 mm. Width: 7.5 mm. Depth: 11.2 mm. Cable length: 2 m
