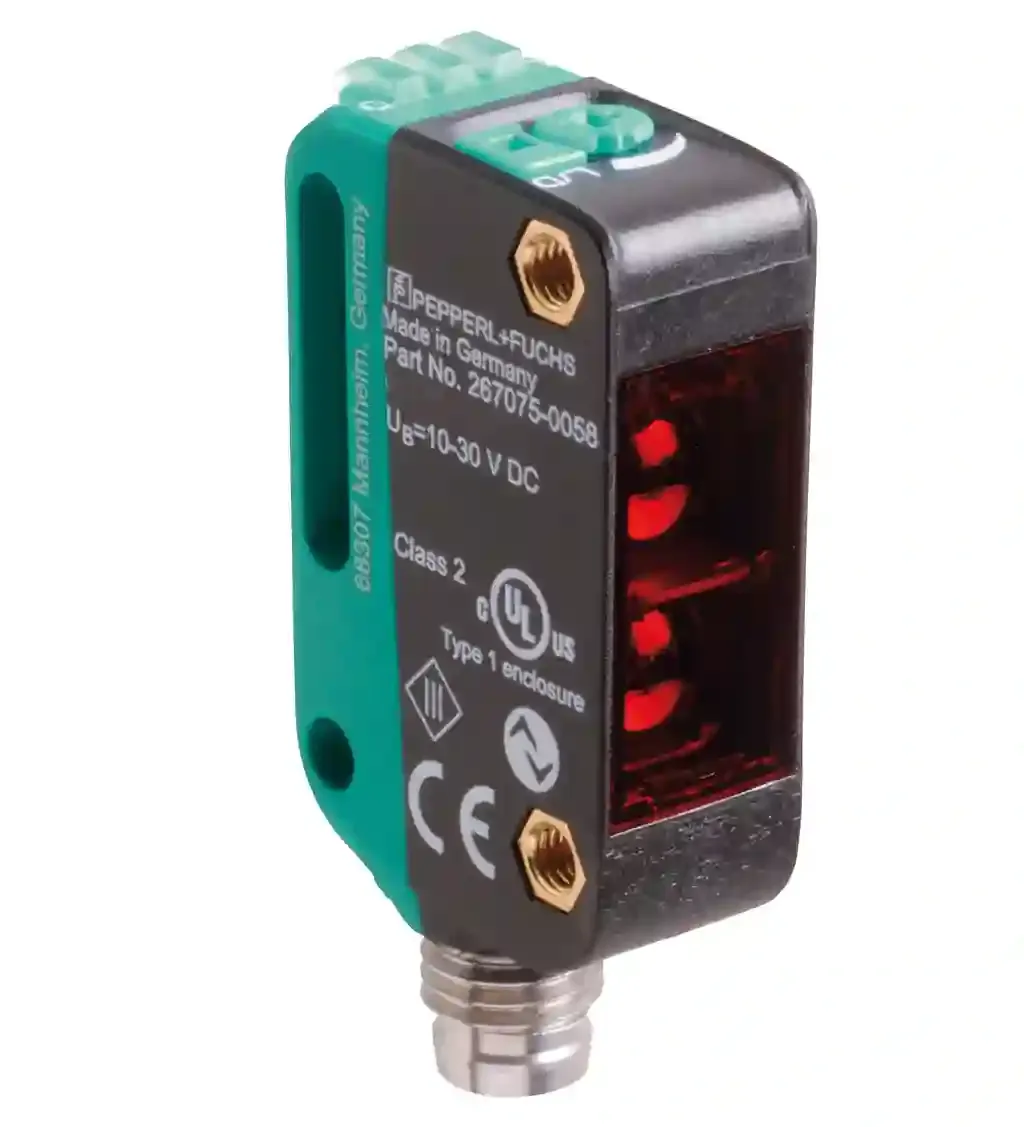

Pepperl Fuchs OBT350-R100-E5-IO-V31-IR

Triangulation sensor (BGS). Triangulation sensor with background suppression, Miniature design with versatile mounting options, Best background suppressor in its class, Precision object detection, almost irrespective of the color, Extended temperature range-40 °C … 60 °C, High degree of protection IP69K. Detection range: 5 … 350 mm. Detection range min.: 5 … 25 mm. Detection range max.: 5 … 350 mm. Adjustment range: 25 … 350 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated infrared light 850 nm. LED risk group labelling: exempt group. Black-white difference (6 %/90 %): < 15 % at 350 mm. Diameter of the light spot: approx. 26 mm at a distance of 350 mm. Opening angle: approx. 4 °. Ambient light limit: EN 60947-5-2 : 40000 Lux. MTTFd: 600 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:constantly on – power onflashing (4Hz) – short circuitflashing with short break (1 Hz) – IO-Link mode. Function indicator: LED yellow:constantly on – object detectedconstantly off – object not detected. Control elements: Light-on/dark-on changeover switch. Control elements: Sensing range adjuster. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA at 24 V supply voltage. Protection class: III. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Device profile: Smart Sensor. Device ID: 0x110614 (1115668). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: Process data input 1 BitProcess data output 2 Bit. SIO mode support: yes. Compatible master port type: A. Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q – BK: PNP normally open / light-on, IO-Link. Signal output: 1 PNP, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: 1 ms. Communication interface: IEC 61131-9. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 … 60 °C (-40 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67 / IP69 / IP69K. Connection: M8 x 1 connector, 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 10 g. Dimensions: . Height44.5 mmWidth11 mmDepth21.5 mm: . Height: 44.5 mm. Width: 11 mm. Depth: 21.5 mm
