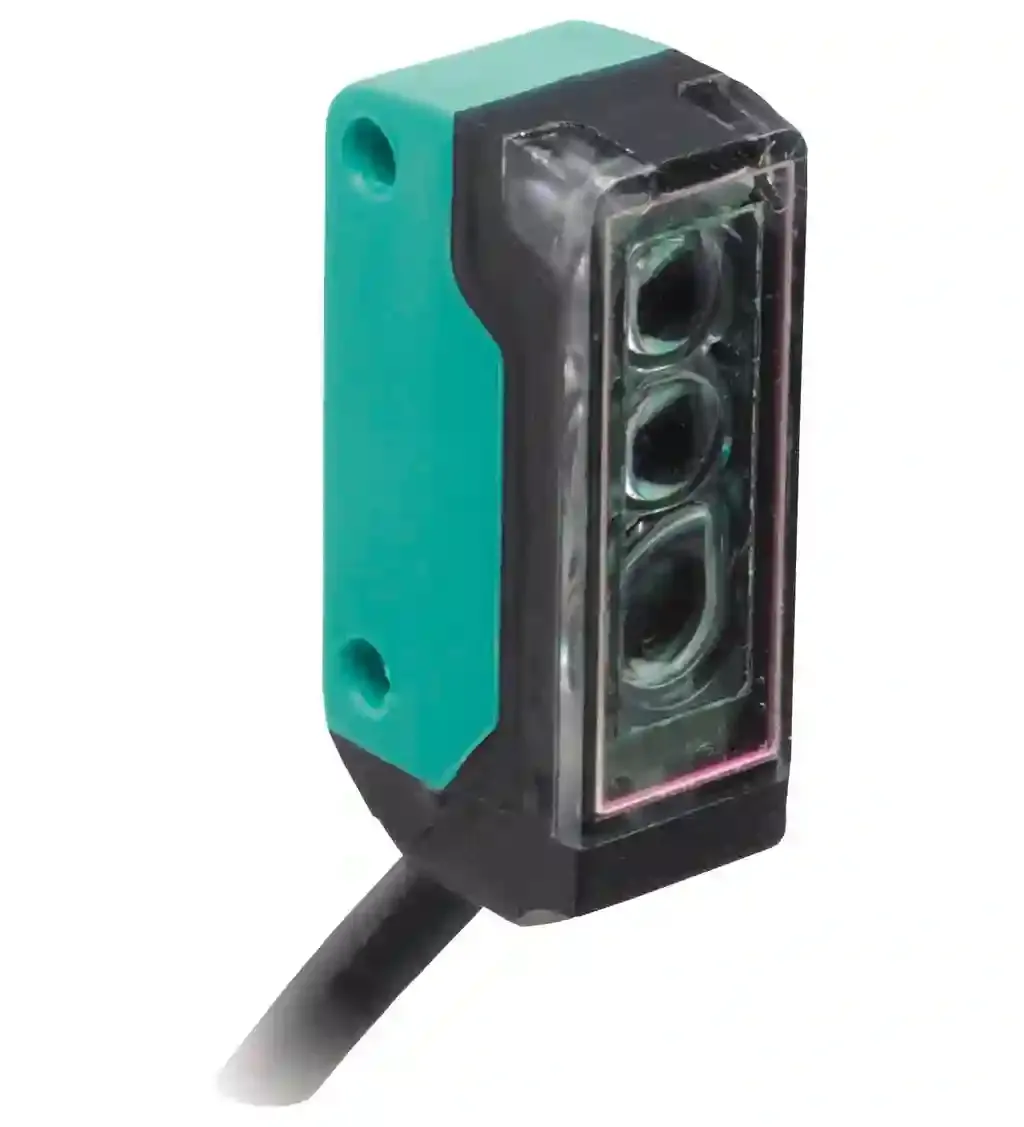

Pepperl Fuchs OBT30-R2-E0-P

Triangulation sensor (BGS). Triangulation sensor with background suppression for standard applications, miniature design, 30 mm detection range, red light, light on, NPN output, 2 m fixed cable, Ultra-small housing design, 45° cable outlet for maximum mounting freedom under extremely tight space constraints, Highly visible light spot, even on dark materials, Precision object detection, almost irrespective of the color. Detection range: 1 … 30 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light , 630 nm. Black-white difference (6 %/90 %): < 7 % at 30 mm. Angle deviation: approx. 2 °. Diameter of the light spot: approx. 2 mm at a distance of 30 mm. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 800 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: Power on flashing: Short circuit/overload indication. Function indicator: LED yellow ON: lights when object is detected. Operating voltage: 10 … 30 V DC , class 2. No-load supply current: < 10 mA. Protection class: III. Switching type: NO contact / light on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 50 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: approx. 800 Hz. Response time: 600 µs. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 60 °C (-13 … 140 °F). Storage temperature: -30 … 70 °C (-22 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC/ABS and TPUOptical facePCCablePUR: . Housing: PC/ABS and TPU. Optical face: PC. Cable: PUR. Installation: Fixing screws , 2 x M2 allen head screws included with delivery. Mass: approx. 20 g. Dimensions: . Height24 mmWidth7.5 mmDepth11.2 mm: . Height: 24 mm. Width: 7.5 mm. Depth: 11.2 mm. Cable length: 2 m
