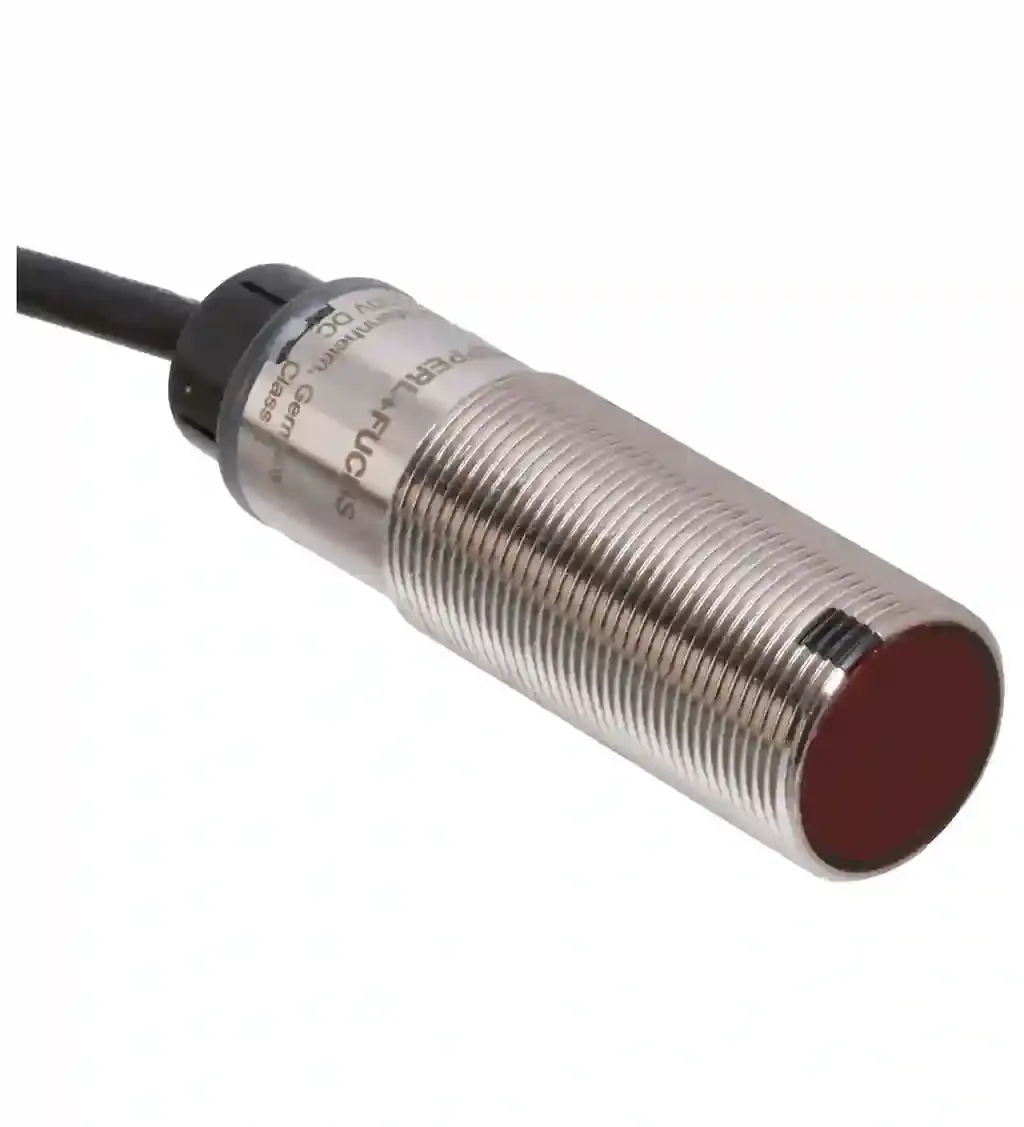

Pepperl Fuchs OBT150-18GM60-E4

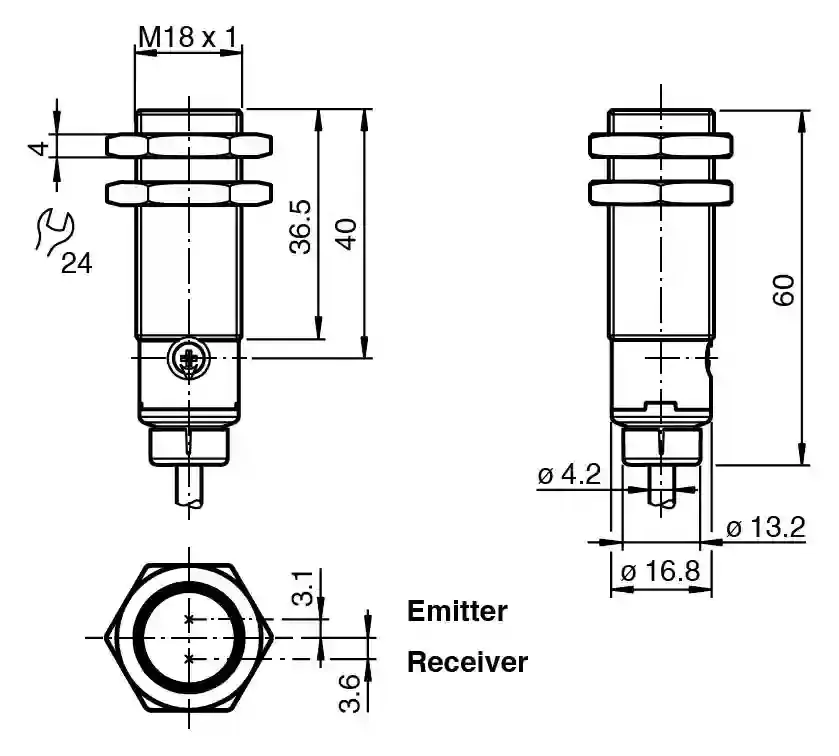

Triangulation sensor (BGS). Triangulation sensor with background suppression, Strong metallic housing in cylindrical shape M18 x 1, Adjustable background suppression, Not sensitive to ambient light, Degree of protection IP67, High operating distance. Detection range: 10 … 150 mm. Detection range min.: 10 … 40 mm. Detection range max.: 12 … 150 mm. Adjustment range: 40 … 150 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. Black-white difference (6 %/90 %): < 10 % at 150 mm. Diameter of the light spot: approx. 6 mm at detection range 150 mm. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 100000 Lux. Hysteresis: < 2 %. MTTFd: 1058 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on – power onflashing (4 Hz) – short circuit. Function indicator: LED yellow:constantly on – object detectedconstantly off – object not detected. Control elements: sensitivity adjustment. Control elements: light/dark on electrically switchable. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA. Protection class: III. Switching type: The switching type of the sensor is adjustable. The default setting is: Q – Pin4: NPN output / light-on L/D-On – WH: Low-active input. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 2 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 … 60 °C (-40 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . Housingbrass, nickel-platedOptical facePMMACablePVC: . Housing: brass, nickel-plated. Optical face: PMMA. Cable: PVC. Mass: approx. 70 g. Dimensions: . Length60 mmDiameter18 mmThread sizeM18: . Length: 60 mm. Diameter: 18 mm. Thread size: M18
