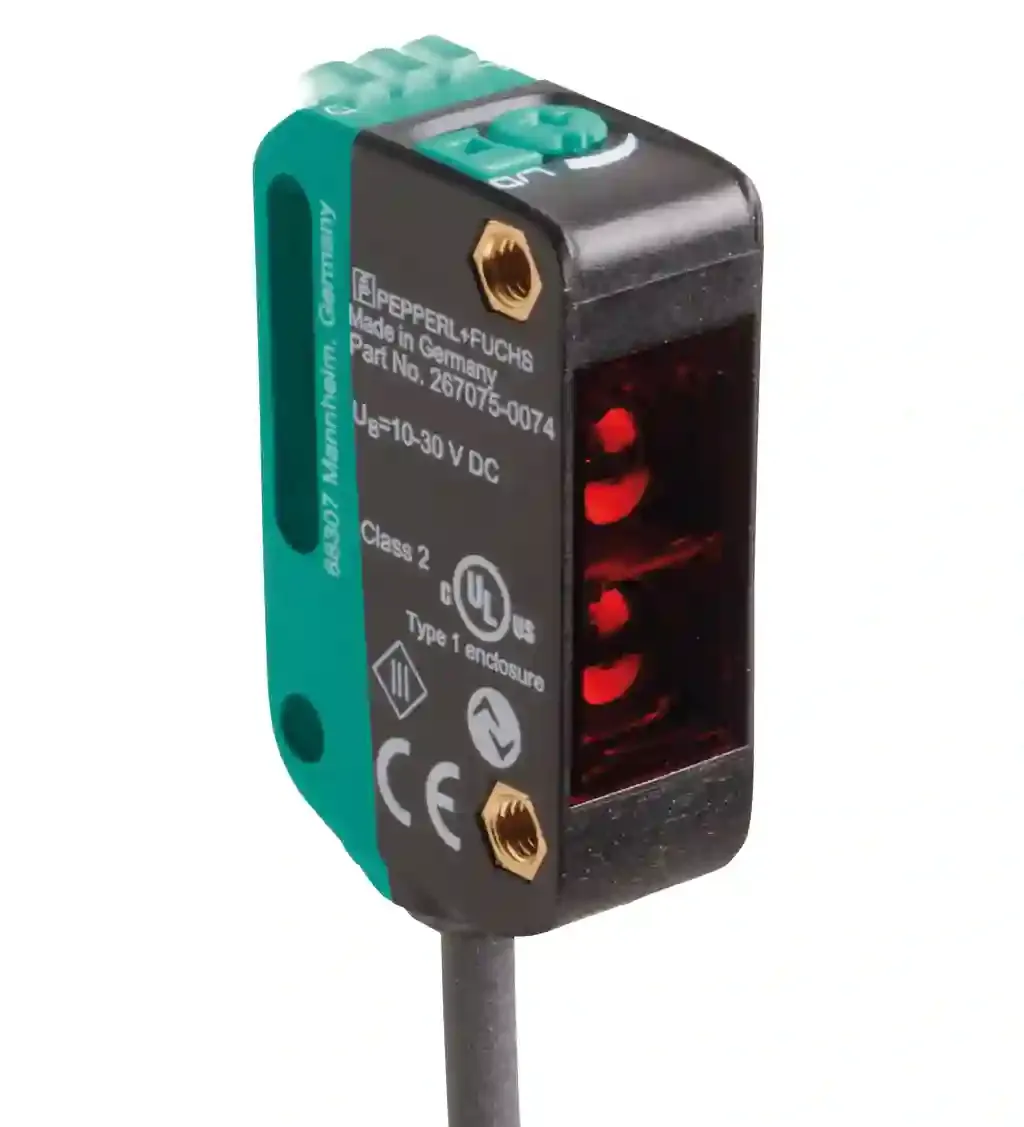

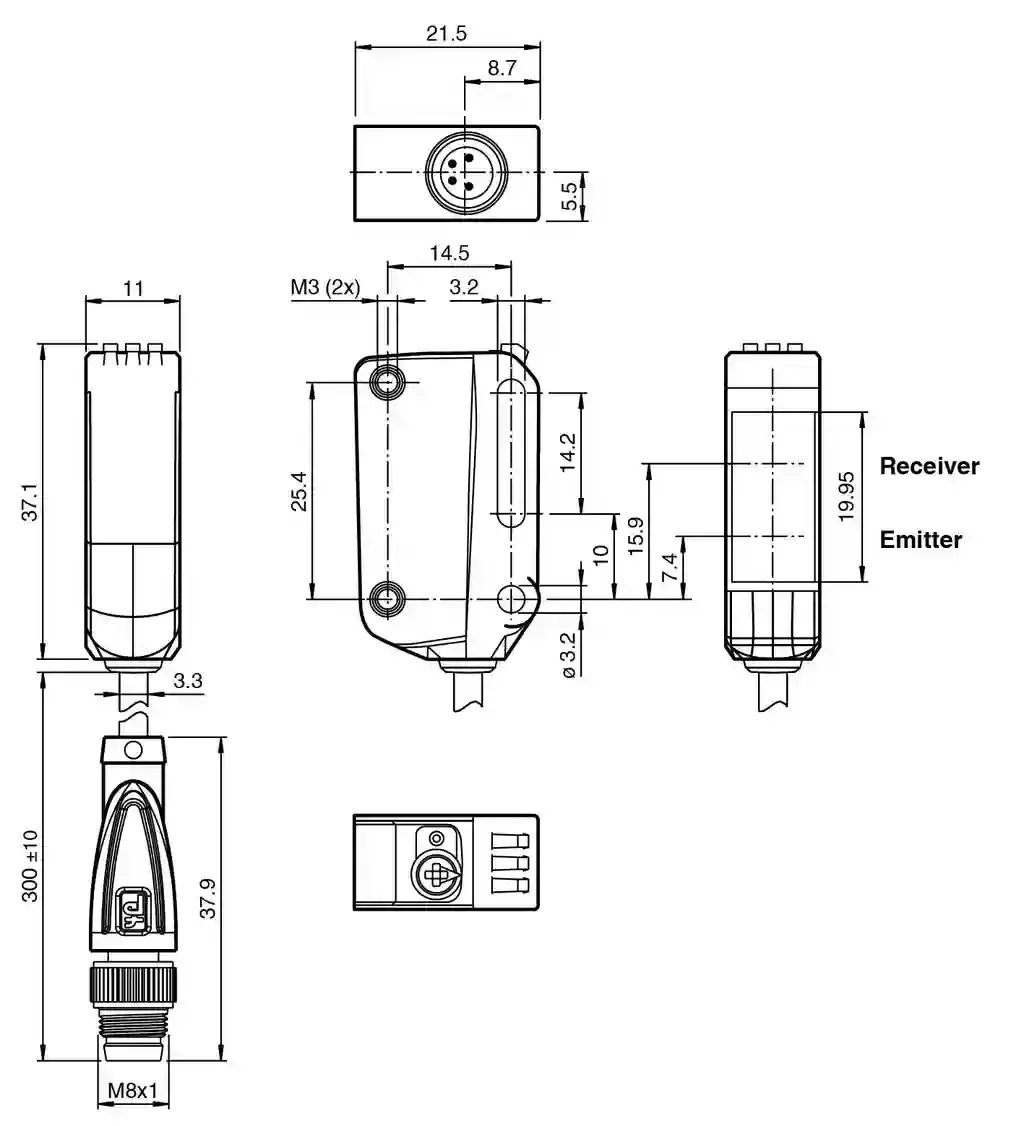

Pepperl Fuchs OBT100-R100-2EP-IO-0,3M-V31-L

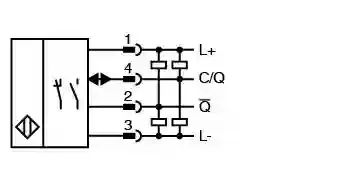

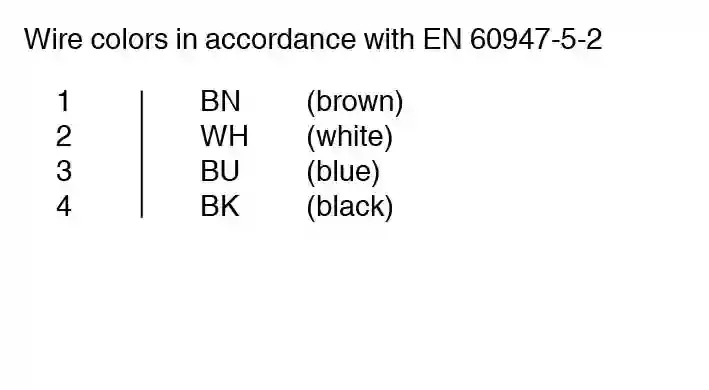

Triangulation sensor (BGS). Laser diffuse mode sensor with adjustable background suppression, Miniature design with versatile mounting options, DuraBeam Laser Sensors – durable and employable like an LED, Extended temperature range-40 °C … 60 °C, High degree of protection IP69K, IO-Link interface for service and process data. Detection range: 7 … 100 mm. Detection range min.: 7 … 25 mm. Detection range max.: 7 … 100 mm. Adjustment range: 25 … 100 mm. Reference target: standard white, 100 mm x 100 mm. Light source: laser diode. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length680 nmBeam divergence> 5 mrad d63 5 mrad d63 < 1 mm in the range of 150 mm … 250 mm. Pulse length: 3 µs. Repetition rate: approx. 13 kHz. max. pulse energy: 10.4 nJ. Black-white difference (6 %/90 %): < 5 % at 80 mm. Diameter of the light spot: < 1 mm at a distance of 60 mm. Opening angle: approx. 0.3 °. Ambient light limit: EN 60947-5-2 : 40000 Lux. MTTFd: 560 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:constantly on – power onflashing (4Hz) – short circuitflashing with short break (1 Hz) – IO-Link mode. Function indicator: LED yellow:constantly on – object detectedconstantly off – object not detected. Control elements: Light-on/dark-on changeover switch. Control elements: Sensing range adjuster. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 20 mA at 24 V supply voltage. Protection class: III. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Device profile: Smart Sensor. Device ID: 0x110603 (1115651). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: Process data input 1 BitProcess data output 2 Bit. SIO mode support: yes. Compatible master port type: A. Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link /Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1650 Hz. Response time: 300 µs. Communication interface: IEC 61131-9. Product standard: EN 60947-5-2. Laser safety: EN 60825-1:2014. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. FDA approval: IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.. Ambient temperature: -40 … 60 °C (-40 … 140 °F) , cable, fixed installation -25 … 60 °C (-13 … 140 °F) , movable cable not appropriate for conveyor chains. Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67 / IP69 / IP69K. Connection: fixed cable 300 mm with M8 x 1 male connector; 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 17 g. Dimensions: . Height37.1 mmWidth11 mmDepth21.5 mm: . Height: 37.1 mm. Width: 11 mm. Depth: 21.5 mm. Cable length: 0.3 m
