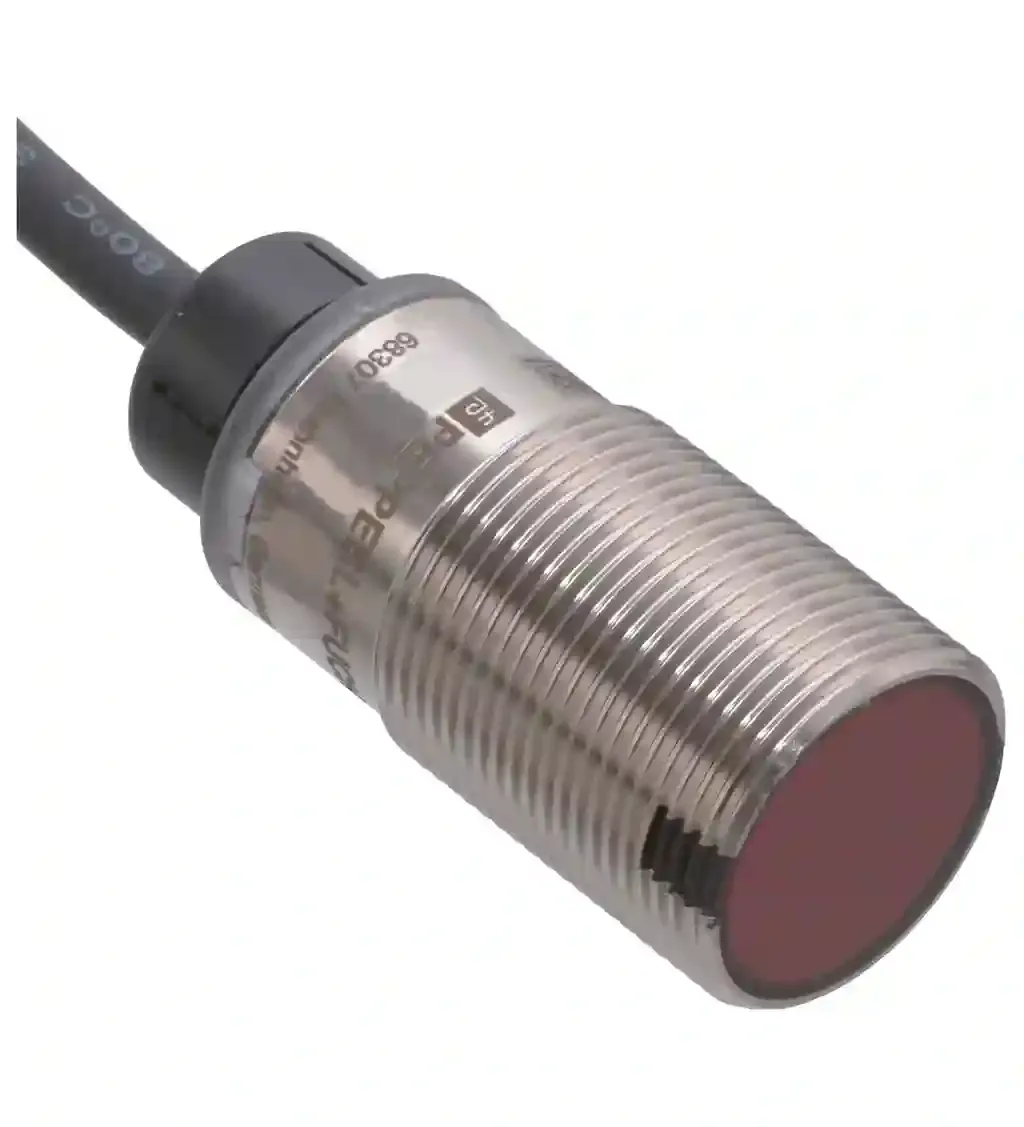

Pepperl Fuchs OBR5500-18GM40-E0

Retroreflective sensor. Retroreflective sensor, Strong metallic housing in cylindrical shape M18 x 1, Not sensitive to ambient light, Degree of protection IP67, Very high detection range. Effective detection range: 0 … 5.5 m. Reflector distance: 0 … 5.5 m. Threshold detection range: 7.8 m. Reference target: reflector C110-2. Light source: LED. Light type: modulated visible red light. Polarization filter: yes. Diameter of the light spot: approx. 350 mm at 5.5 m. Opening angle: approx. 2.6 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 40000 Lux. MTTFd: 1552 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on – power onflashing (4 Hz) – short circuit. Function indicator: Yellow LED:Permanently lit – light path clearPermanently off – object detectedFlashing (4 Hz) – insufficient operating reserve. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA. Protection class: III. Switching type: Q – Pin4: NPN normally open / dark-on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 … 60 °C (-40 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . Housingbrass, nickel-platedOptical facePMMACablePVC: . Housing: brass, nickel-plated. Optical face: PMMA. Cable: PVC. Mass: approx. 60 g. Dimensions: . Length40 mmDiameter18 mmThread sizeM18: . Length: 40 mm. Diameter: 18 mm. Thread size: M18
