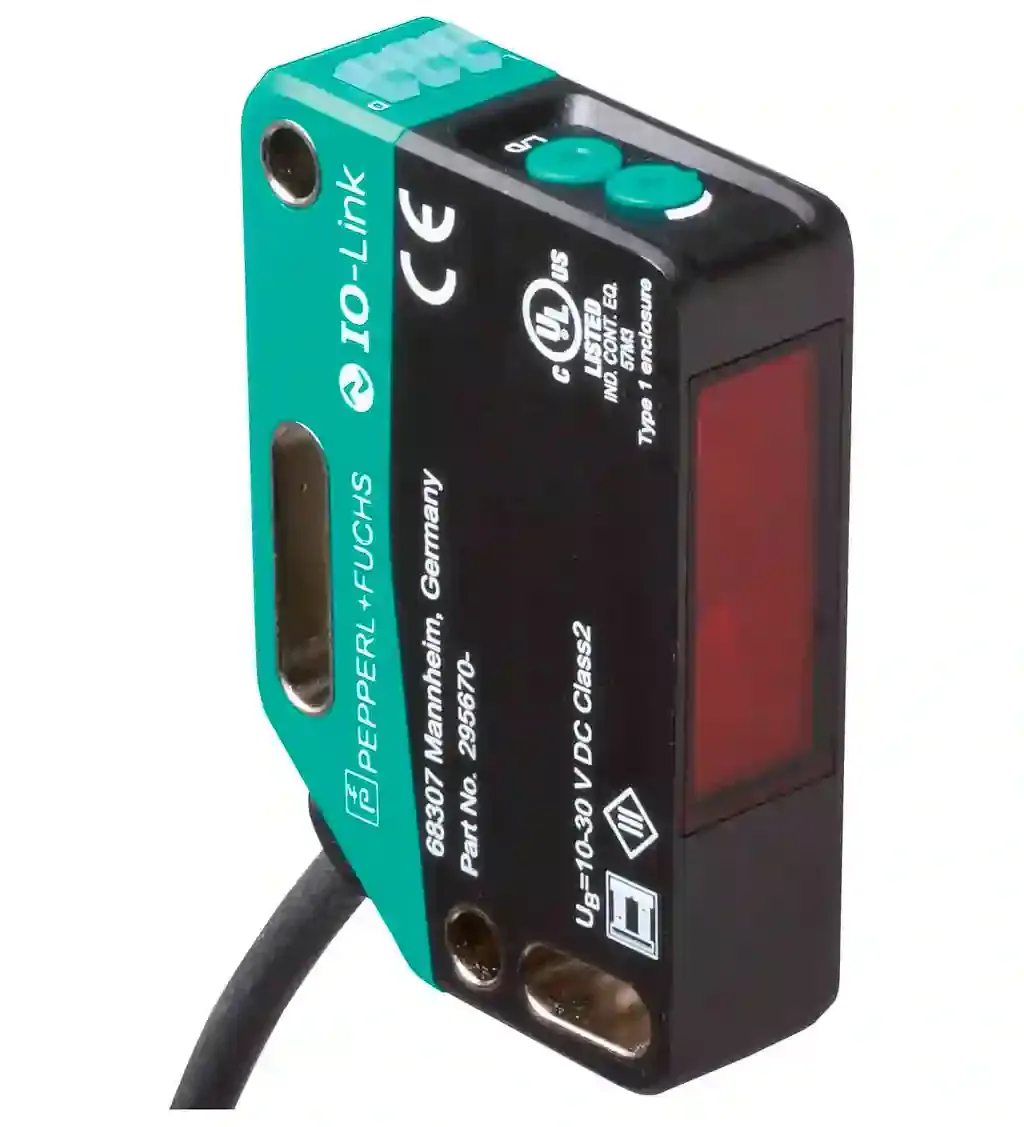

Pepperl Fuchs OBR25M-R201-2EP-IO-L

Laser retroreflective sensor. Laser retroreflective sensor, Medium design with versatile mounting options, DuraBeam Laser Sensors – durable and employable like an LED, Extended temperature range-40 °C … 60 °C, High degree of protection IP69K, IO-Link interface for service and process data. Effective detection range: 0 … 25 m. Reflector distance: 0.5 … 25 m. Threshold detection range: 33 m. Reference target: H85-2 reflector. Light source: laser diode. Light type: modulated visible red light. Polarization filter: yes. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length680 nmBeam divergence> 5 mrad d63 5 mrad d63 < 2 mm in the range of 250 mm … 750 mm. Pulse length: 1.6 µs. Repetition rate: max. 17.6 kHz. max. pulse energy: 9.6 nJ. Diameter of the light spot: approx. 50 mm at a distance of 25 m. Opening angle: approx. 0.1 °. Ambient light limit: EN 60947-5-2 : 60000 Lux. MTTFd: 672 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:constantly on – power onflashing (4Hz) – short circuitflashing with short break (1 Hz) – IO-Link mode. Function indicator: Yellow LED:Permanently lit – light path clearPermanently off – object detectedFlashing (4 Hz) – insufficient operating reserve. Control elements: Light-on/dark-on changeover switch. Control elements: sensitivity adjustment. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 15 mA at 24 V Operating voltage. Protection class: III. Interface type: IO-Link ( via C/Q = BK ). IO-Link revision: 1.1. Device profile: Identification and diagnosisSmart Sensor type 2.4. Device ID: 0x111212 (1118738). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: Process data input 2 BitProcess data output 2 Bit. SIO mode support: yes. Compatible master port type: A. Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q – BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q – WH: NPN normally closed / light-on, PNP normally open / dark-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 2000 Hz. Response time: 250 µs. Communication interface: IEC 61131-9. Product standard: EN 60947-5-2. Laser safety: EN 60825-1:2014. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. CCC approval: CCC approval / marking not required for products rated ≤36 V. FDA approval: IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.. Ambient temperature: -40 … 60 °C (-40 … 140 °F) , cable, fixed installation -20 … 60 °C (-4 … 140 °F) , movable cable not appropriate for conveyor chains. Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67 / IP69 / IP69K. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 83 g. Dimensions: . Height61.7 mmWidth15 mmDepth41.7 mm: . Height: 61.7 mm. Width: 15 mm. Depth: 41.7 mm. Cable length: 2 m
