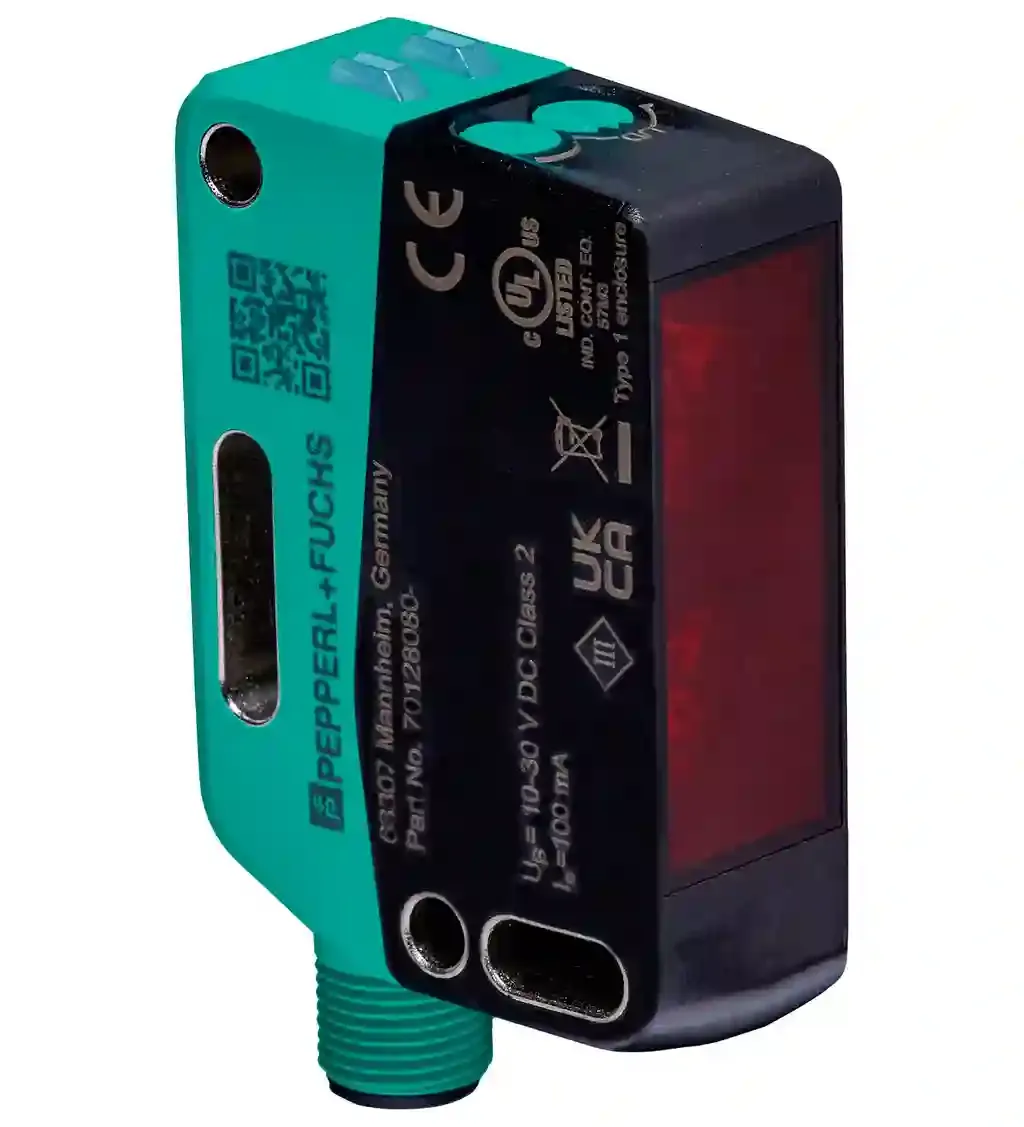

Pepperl Fuchs OBR17M-R202-E5-V1

Retroreflective sensor. Medium design with versatile mounting options, Degree of protection IP67, Mounting on full metal sockets, Very bright, highly visible light spot, Highly visible LEDs for Power ON and switching state. Effective detection range: 0 … 17 m. Reflector distance: 0.02 … 17 m. Threshold detection range: 20 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Polarization filter: yes. Diameter of the light spot: approx. 500 mm at a distance of 17 m. Opening angle: 2 °. Ambient light limit: EN 60947-5-2 : 60000 Lux. MTTFd: 876 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on – power onflashing (4 Hz) – short circuit. Function indicator: Yellow LED:Permanently lit – light path clearPermanently off – object detectedFlashing (4 Hz) – insufficient operating reserve Flashing (8 Hz) – fault detected, the outputs maintain the status. Control elements: Light-on/dark-on changeover switch. Control elements: sensitivity adjustment. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 30 mA at 24 V Operating voltage. Protection class: III. Switching type: The switching type of the sensor is adjustable. The default setting is:Q – Pin4: PNP normally open / dark-on. Signal output: 1 PNP, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 … 60 °C (-22 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: 4-pin, M12 x 1 connector. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 55 g. Dimensions: . Height61.9 mmWidth20 mmDepth41.7 mm: . Height: 61.9 mm. Width: 20 mm. Depth: 41.7 mm
