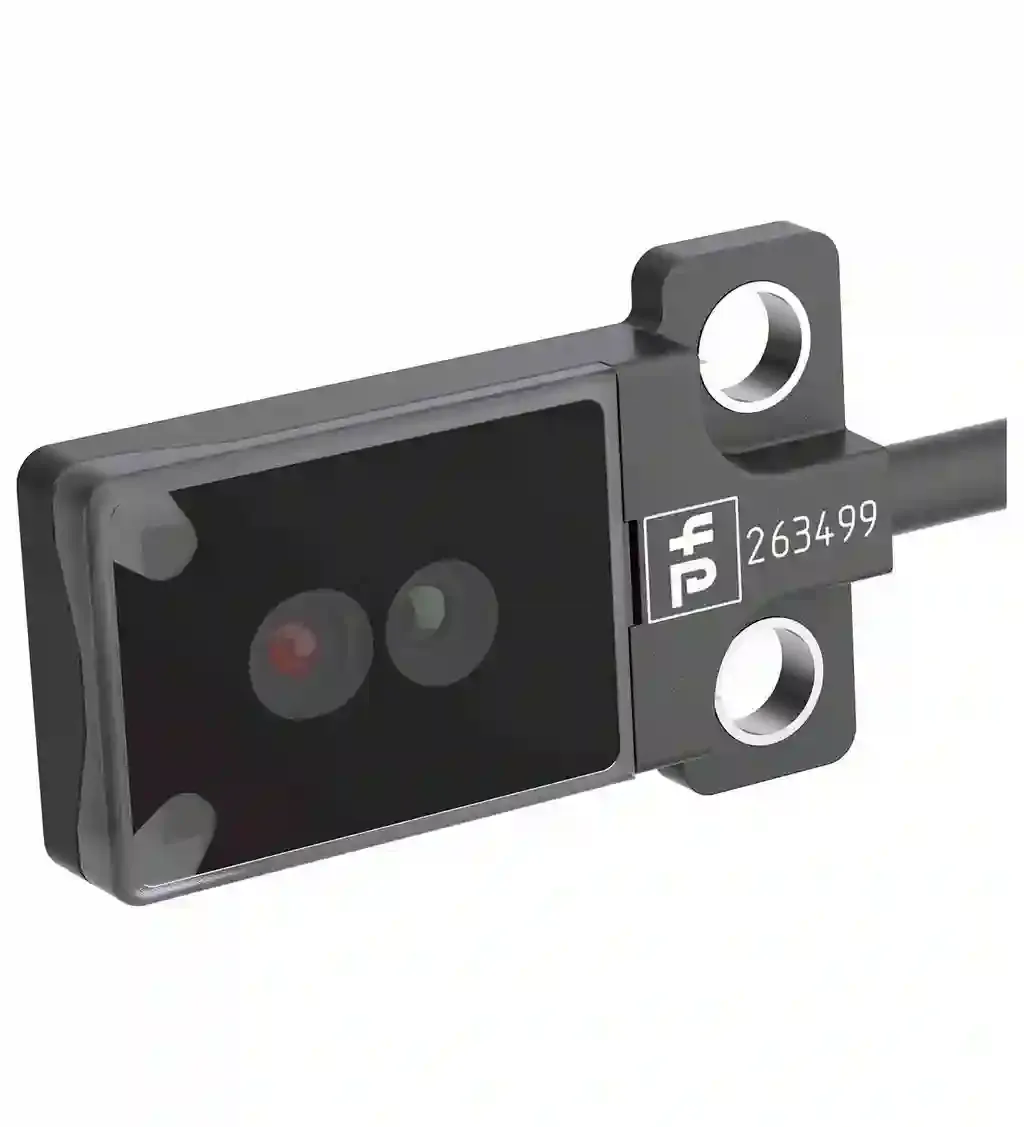

Pepperl Fuchs OBR1500-R3F-E1-0,2M-V31-L

Laser retroreflective sensor. Retroreflective sensor with polarization filter, Very flat design for direct mounting without mounting bracket, DuraBeam Laser Sensors – durable and employable like an LED, Glare protected with polarization filter, Very bright, highly visible light spot. Effective detection range: 0 … 1500 mm. Reflector distance: 60 … 1500 mm. Threshold detection range: 1800 mm. Reference target: H40 reflector. Light source: LASER LIGHT. Light type: modulated visible red light , 680 nm. Polarization filter: yes. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length680 nmBeam divergence> 5 mradPulse lengthapprox. 3 µsRepetition rateapprox. 16.6 kHzmax. pulse energy8 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 680 nm. Beam divergence: > 5 mrad. Pulse length: approx. 3 µs. Repetition rate: approx. 16.6 kHz. max. pulse energy: 8 nJ. Angle deviation: approx. 0.5 °. Object size: typ. starts from 1.5 mm. Diameter of the light spot: approx. 25 mm at a distance of 1500 mm. Opening angle: approx. 1 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 800 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted. Operating voltage: 12 … 24 V. No-load supply current: < 10 mA. Protection class: III. Switching type: NC contact / light-on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 50 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: approx. 2 kHz. Response time: 250 µs. Product standard: EN 60947-5-2. Laser safety: EN 60825-1:2007. UL approval: E87056 , cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. FDA approval: IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Ambient temperature: -10 … 60 °C (14 … 140 °F). Storage temperature: -20 … 70 °C (-4 … 158 °F). Degree of protection: IP67. Connection: 200 mm fixed cable with 4-pin, M8x1 connector. Material: . HousingPC (Polycarbonate) and Stainless steelOptical facePMMACablePUR: . Housing: PC (Polycarbonate) and Stainless steel. Optical face: PMMA. Cable: PUR. Mass: approx. 10 g. Tightening torque, fastening screws: 1 Nm. Dimensions: . Height25.5 mmWidth16 mmDepth4.1 mm: . Height: 25.5 mm. Width: 16 mm. Depth: 4.1 mm. Cable length: 200 mm
