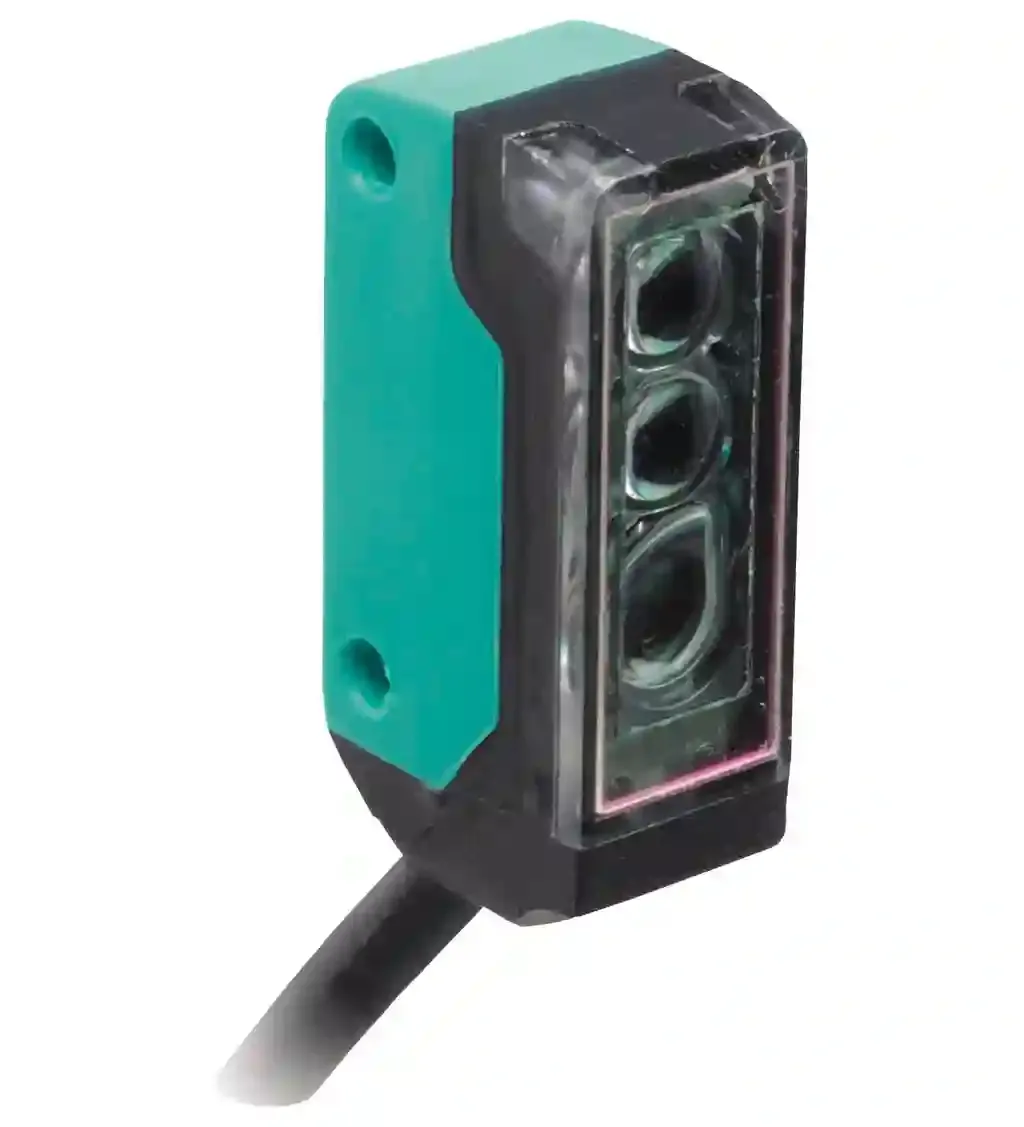

Pepperl Fuchs OBR1000-R2-E3-0,2M-V31-P

Retroreflective sensor. Retroreflective sensor for standard applications, miniature design, polarization filter, 1000 mm detection range, red light, light on, PNP output, 200 mm fixed cable with plug M8, 4-pin, Ultra-small housing design, 45° cable outlet for maximum mounting freedom under extremely tight space constraints, Integrated polarization filter allows the detection of reflective objects, Extremely long detection range paves the way for new applications. Effective detection range: 0 … 1 m. Reflector distance: 40 … 1000 mm. Threshold detection range: 1.4 m. Reference target: H40 reflector. Light source: LED. Light type: modulated visible red light , 630 nm. Polarization filter: yes. Angle deviation: approx. 2 °. Diameter of the light spot: approx. 60 mm at a distance of 800 mm. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 800 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted. Operating voltage: 10 … 30 V DC , class 2. No-load supply current: < 10 mA. Test input: Test of switching function at 0 V. Switching type: NC contact / light on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 50 mA. Voltage drop: ≤ 1.5 V DC. Switching frequency: approx. 800 Hz. Response time: 600 µs. Product standard: EN 60947-5-2. UL approval: cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 60 °C (-13 … 140 °F). Storage temperature: -30 … 70 °C (-22 … 158 °F). Degree of protection: IP67. Connection: 200 mm fixed cable with 4-pin, M8x1 connector. Material: . HousingPC/ABS and TPUOptical facePMMACablePUR: . Housing: PC/ABS and TPU. Optical face: PMMA. Cable: PUR. Installation: Fixing screws , 2 x M2 allen head screws included with delivery. Mass: approx. 20 g. Dimensions: . Height24 mmWidth7.5 mmDepth11.2 mm: . Height: 24 mm. Width: 7.5 mm. Depth: 11.2 mm. Cable length: 200 mm
