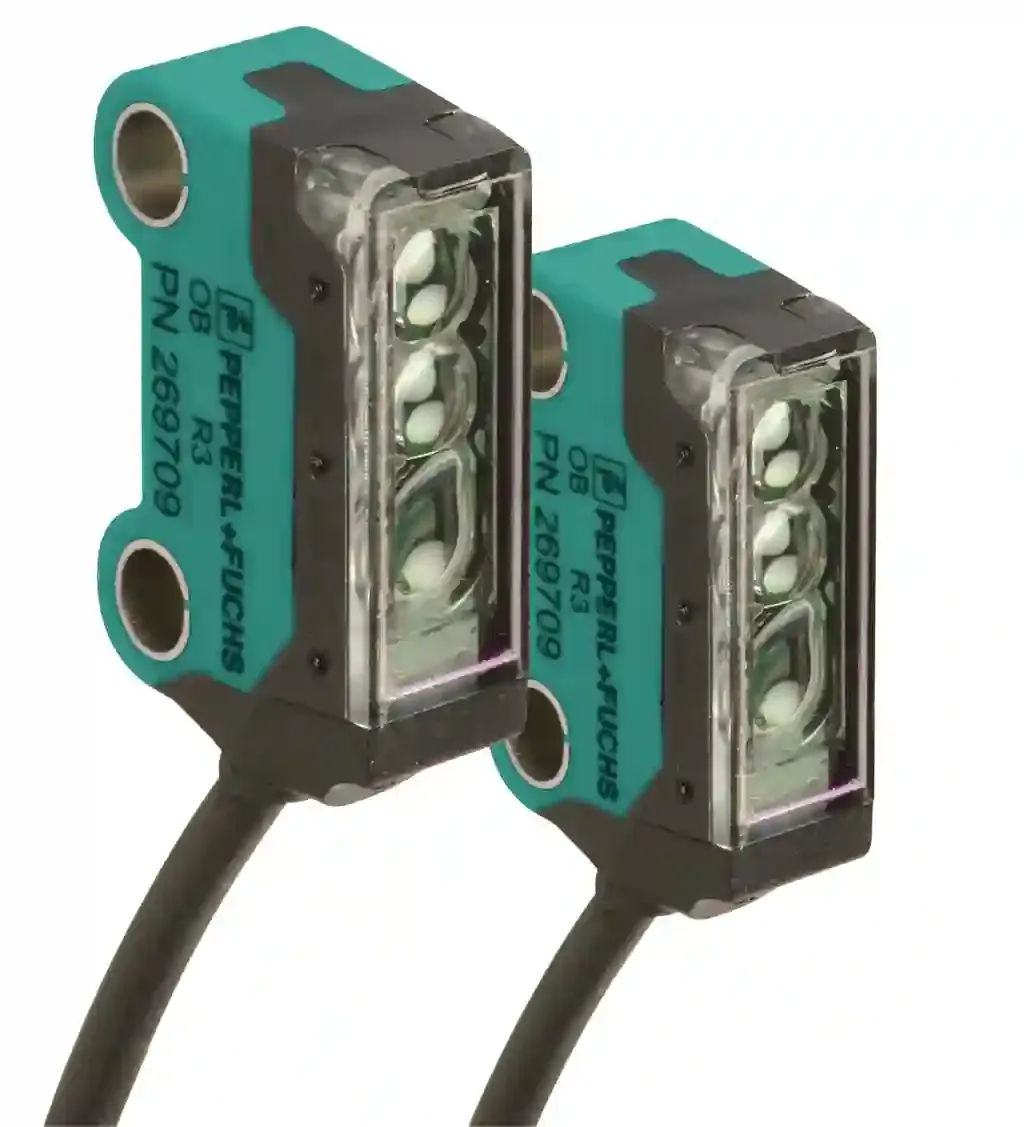

Pepperl Fuchs OBE2000-R3-SE0-P

Thru-beam sensor (pair). Thru-beam sensor for standard applications, miniature design, 2000 mm detection range, red light, dark on, NPN output, 2 m fixed cable, 45° cable outlet for maximum mounting freedom under extremely tight space constraints, Extremely large detection range in Long Range Mode, Option of switching to high precision mode for greater switching accuracy. Emitter: OBE2000-R3-S-P. Receiver: OBE2000-R3-E0-P. Effective detection range: Long range mode: 0 … 2 m High precision mode: 0 … 200 mm. Threshold detection range: Long range mode: 2.5 m High precision mode: 300 mm. Light source: LED. Light type: modulated visible red light , 630 nm. Angle deviation: approx. 2 °. Diameter of the light spot: Long range mode: 150 mm at a distance of 2000 mm High precision mode: 0.5 mm at a distance of 50 mm. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 806 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted. Operating voltage: 10 … 30 V DC , class 2. No-load supply current: Emitter: ≤ 11 mA Receiver: ≤ 8 mA. Control input: Emitter selection BK: not connected, Long Range mode BK: 0 V, High Precision Mode. Switching threshold: Teach-In input. Switching type: NO contact / dark on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 50 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: approx. 800 Hz. Response time: 600 µs. Product standard: EN 60947-5-2. UL approval: cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 60 °C (-13 … 140 °F). Storage temperature: -30 … 70 °C (-22 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC/ABS and TPUOptical facePCCablePUR: . Housing: PC/ABS and TPU. Optical face: PC. Cable: PUR. Mass: approx. 20 g per sensor. Dimensions: . Height26 mmWidth7.5 mmDepth13.8 mm: . Height: 26 mm. Width: 7.5 mm. Depth: 13.8 mm. Cable length: 2 m
