Pepperl Fuchs OBE12M-R101-S2EP-IO-0,3M-V31

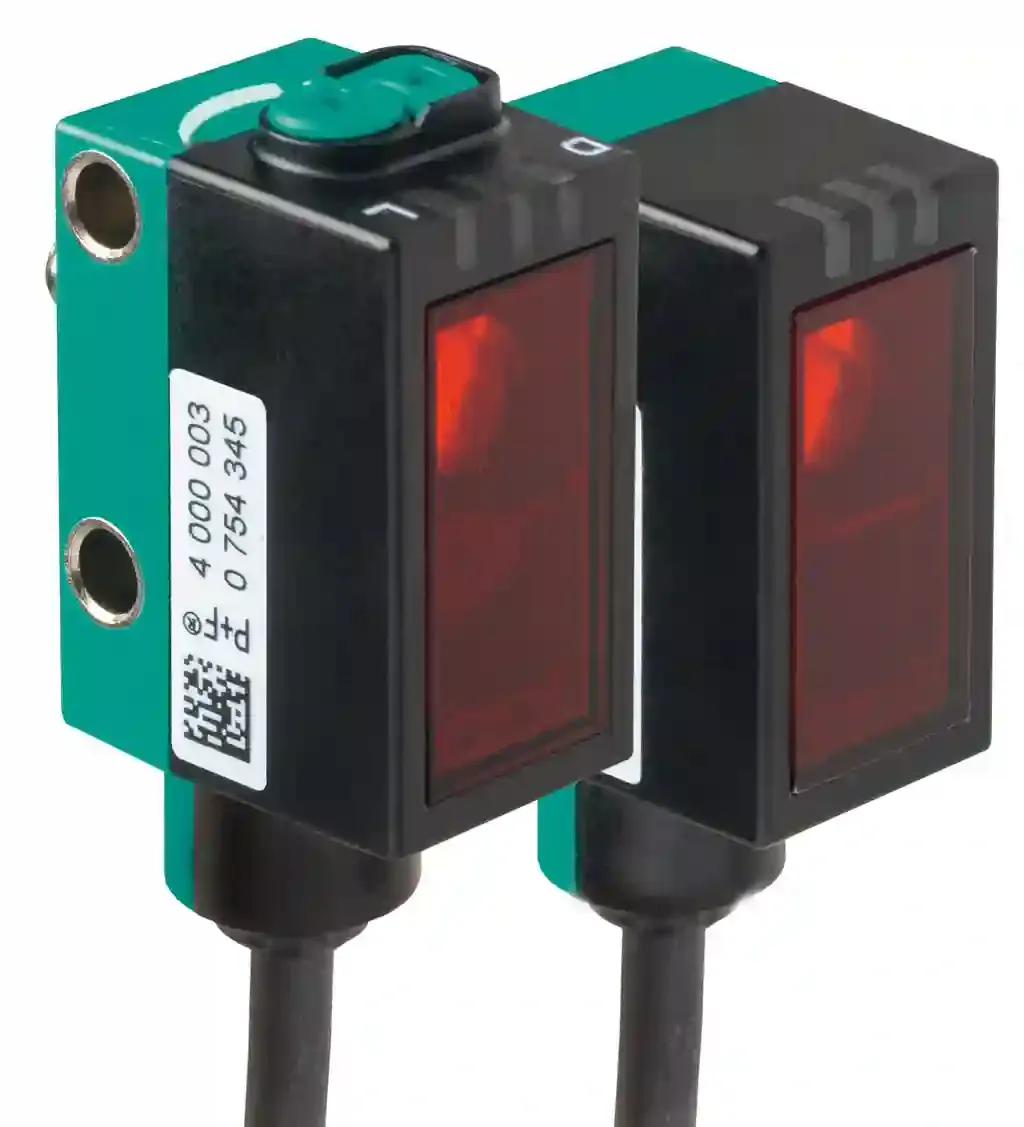

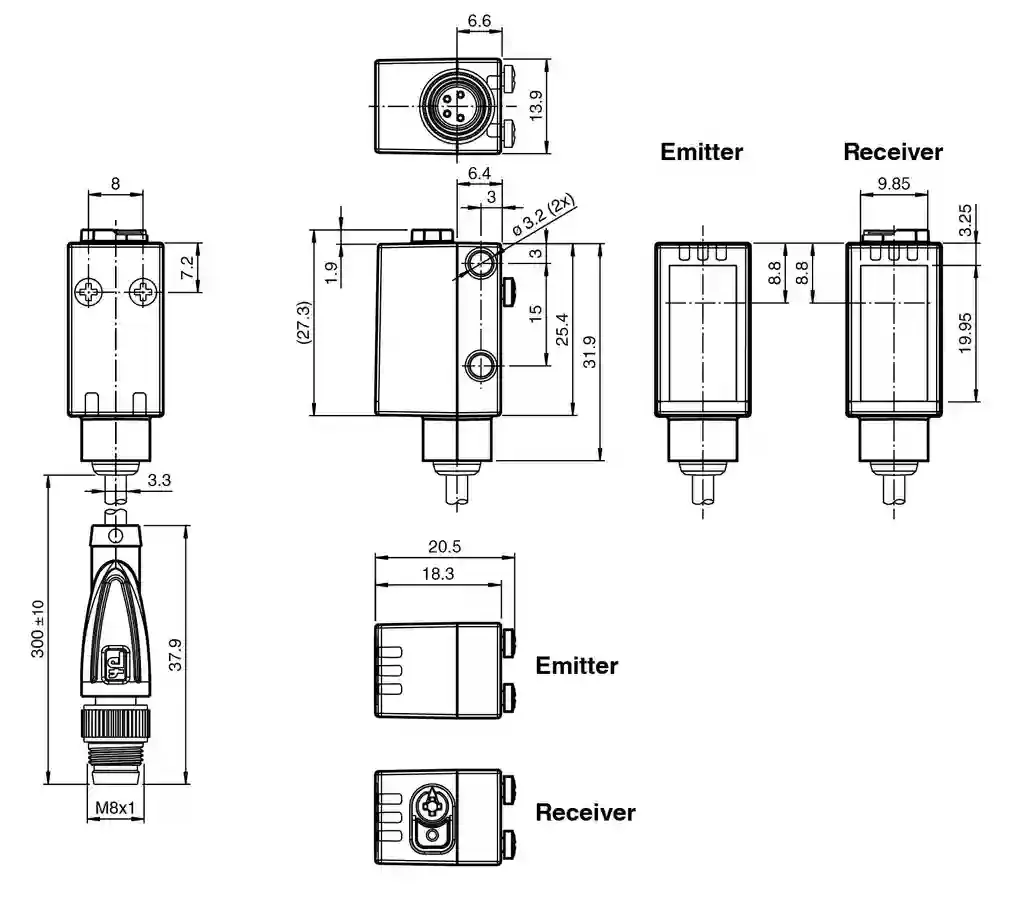

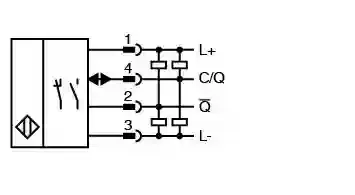

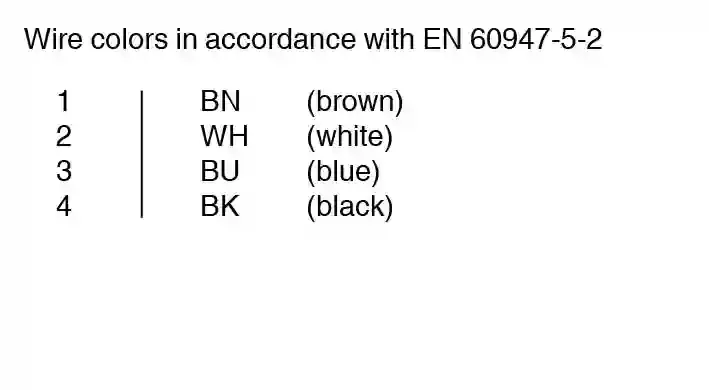

Thru-beam sensor (pair). Miniature design with versatile mounting options, IO-Link interface for service and process data, Various frequencies for avoiding mutual interference (cross-talk immunity), Extended temperature range-40 °C … 60 °C, High degree of protection IP69K. Emitter: OBE12M-R101-S-IO-0,3M-V31. Receiver: OBE12M-R101-2EP-IO-0,3M-V31. Effective detection range: 0 … 12 m. Threshold detection range: 15 m. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Diameter of the light spot: approx. 65 mm at a distance of 1 m. Opening angle: 3.7 °. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 462 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:constantly on – power onflashing (4Hz) – short circuitflashing with short break (1 Hz) – IO-Link mode. Function indicator: Yellow LED:Permanently lit – light path clearPermanently off – object detectedFlashing (4 Hz) – insufficient operating reserve. Control elements: Receiver: light/dark switch. Control elements: Receiver: sensitivity adjustment. Parameterization indicator: IO link communication: green LED goes out briefly (1 Hz). Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: Emitter: ≤ 14 mA Receiver: ≤ 13 mA at 24 V supply voltage. Protection class: III. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Device ID: Emitter: 0x110401 (1115137)Receiver: 0x110301 (1114881). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: Emitter:Process data output: 2 BitReceiver:Process data input: 2 BitProcess data output: 2 Bit. SIO mode support: yes. Compatible master port type: A. Test input: emitter deactivation at +UB. Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Directive conformity: . EMC Directive 2004/108/ECEN 60947-5-2:2007+A1:2012: . EMC Directive 2004/108/EC: EN 60947-5-2:2007+A1:2012. Standard conformity: . Product standardEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012StandardsUL 60947-5-2: 2014 IEC 61131-9:2013 EN 62471:2008 EN 61131-9:2013: . Product standard: EN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012. Standards: UL 60947-5-2: 2014 IEC 61131-9:2013 EN 62471:2008 EN 61131-9:2013. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 … 60 °C (-40 … 140 °F) , cable, fixed installation -25 … 60 °C (-13 … 140 °F) , movable cable not appropriate for conveyor chains. Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67 / IP69 / IP69K. Connection: fixed cable 300 mm with M8 x 1 male connector; 4-pin. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: Emitter: approx. 10 g receiver: approx. 10 g. Dimensions: . Height33.8 mmWidth13.9 mmDepth18.3 mm: . Height: 33.8 mm. Width: 13.9 mm. Depth: 18.3 mm. Cable length: 0.3 m
