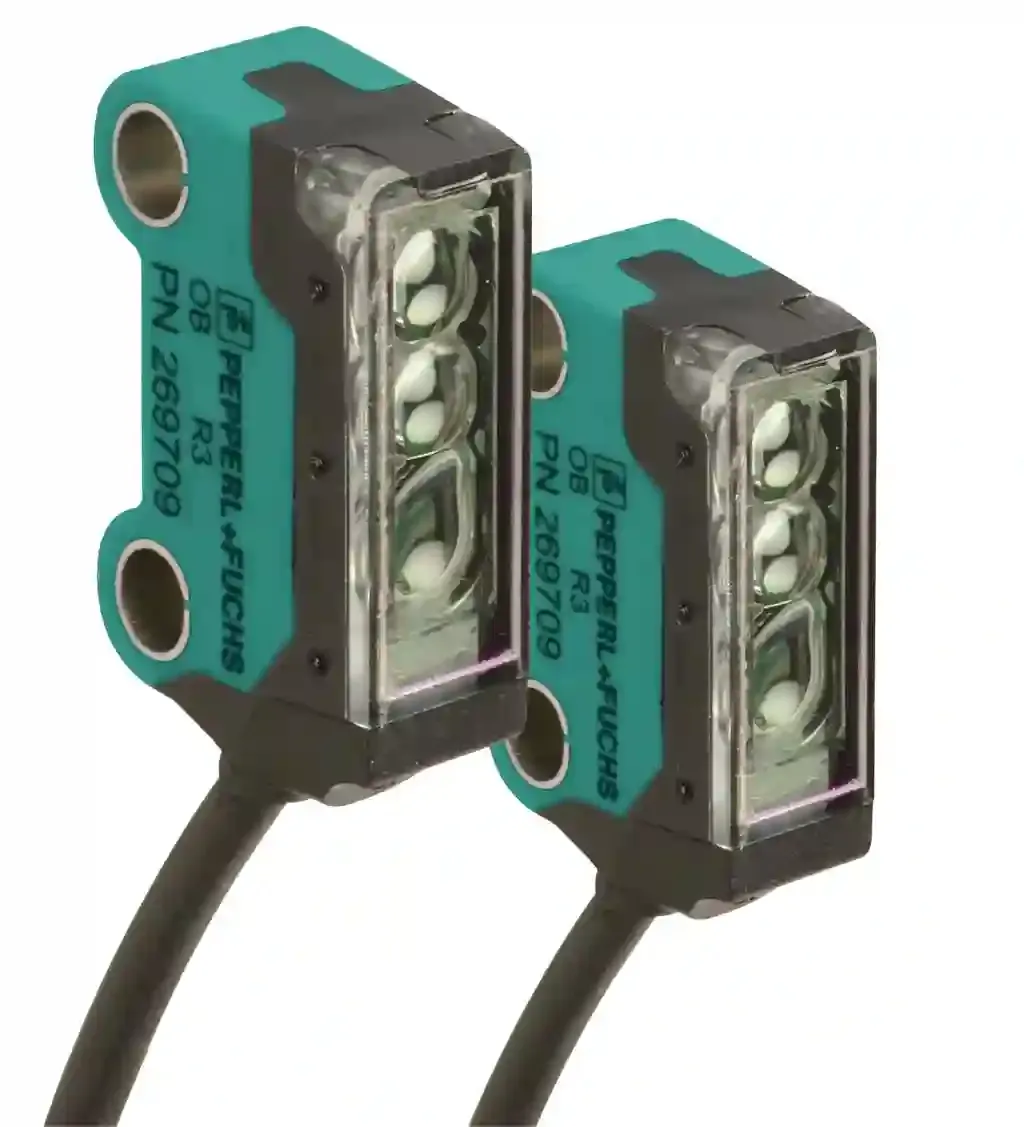

Pepperl Fuchs OBE1000-R3-SE0-P-L

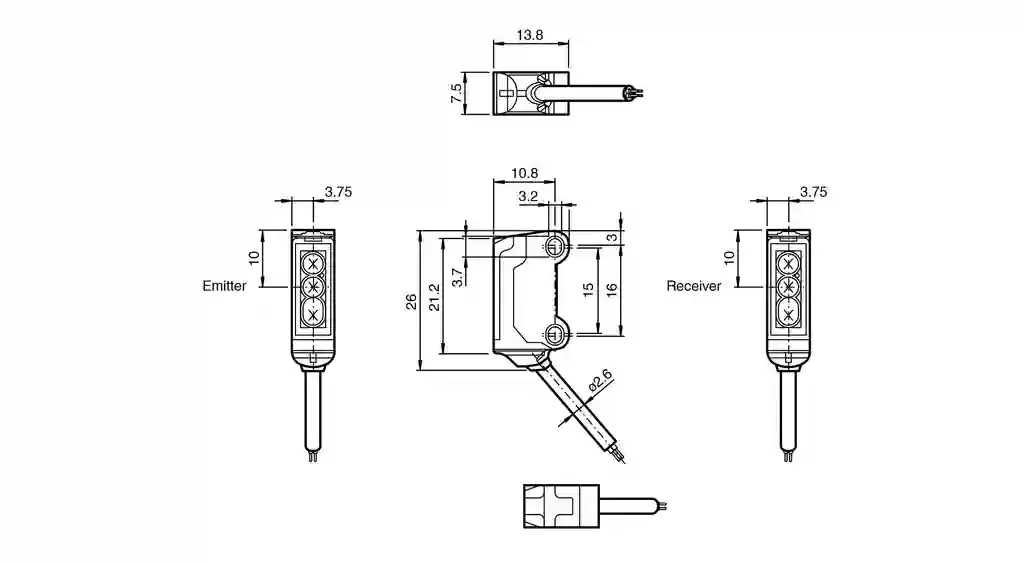

Thru-beam sensor (pair). Laser thru-beam sensor, ultra-small design with M3 mounting, 1000 mm detection range, dark on, NPN output, 2 m fixed cable, Ultra-small housing design, DuraBeam Laser Sensors – durable and employable like an LED, 45° cable outlet for maximum mounting freedom under extremely tight space constraints. Emitter: OBE10M-R3-S-P-L. Receiver: OBE1000-R3-E0-P-L. Effective detection range: 0 … 1 m. Threshold detection range: 1.5 m. Light source: laser diode. Light type: modulated visible red light , 680 nm. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length680 nmBeam divergence> 5 mradPulse lengthapprox. 2 µsRepetition rateapprox. 16.6 kHzmax. pulse energy9.5 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 680 nm. Beam divergence: > 5 mrad. Pulse length: approx. 2 µs. Repetition rate: approx. 16.6 kHz. max. pulse energy: 9.5 nJ. Diameter of the light spot: approx. 3 mm at a distance of 1000 mm. Opening angle: approx. 0.5 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 : 30000 Lux. MTTFd: 806 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted. Operating voltage: 12 … 24 V. No-load supply current: Emitter: ≤ 10 mA Receiver: ≤ 8 mA. Protection class: III. Test input: Test of switching function at 0 V. Switching threshold: Teach-In input. Switching type: NO contact / dark on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 50 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: approx. 2 kHz. Response time: 250 µs. Product standard: EN 60947-5-2. Laser safety: EN 60825-1:2007. UL approval: E87056 , cULus Recognized, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. FDA approval: IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Ambient temperature: -20 … 60 °C (-4 … 140 °F). Storage temperature: -30 … 70 °C (-22 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC/ABS and TPUOptical facePCCablePUR: . Housing: PC/ABS and TPU. Optical face: PC. Cable: PUR. Mass: approx. 20 g per sensor. Dimensions: . Height26 mmWidth7.5 mmDepth13.8 mm: . Height: 26 mm. Width: 7.5 mm. Depth: 13.8 mm. Cable length: 2 m
