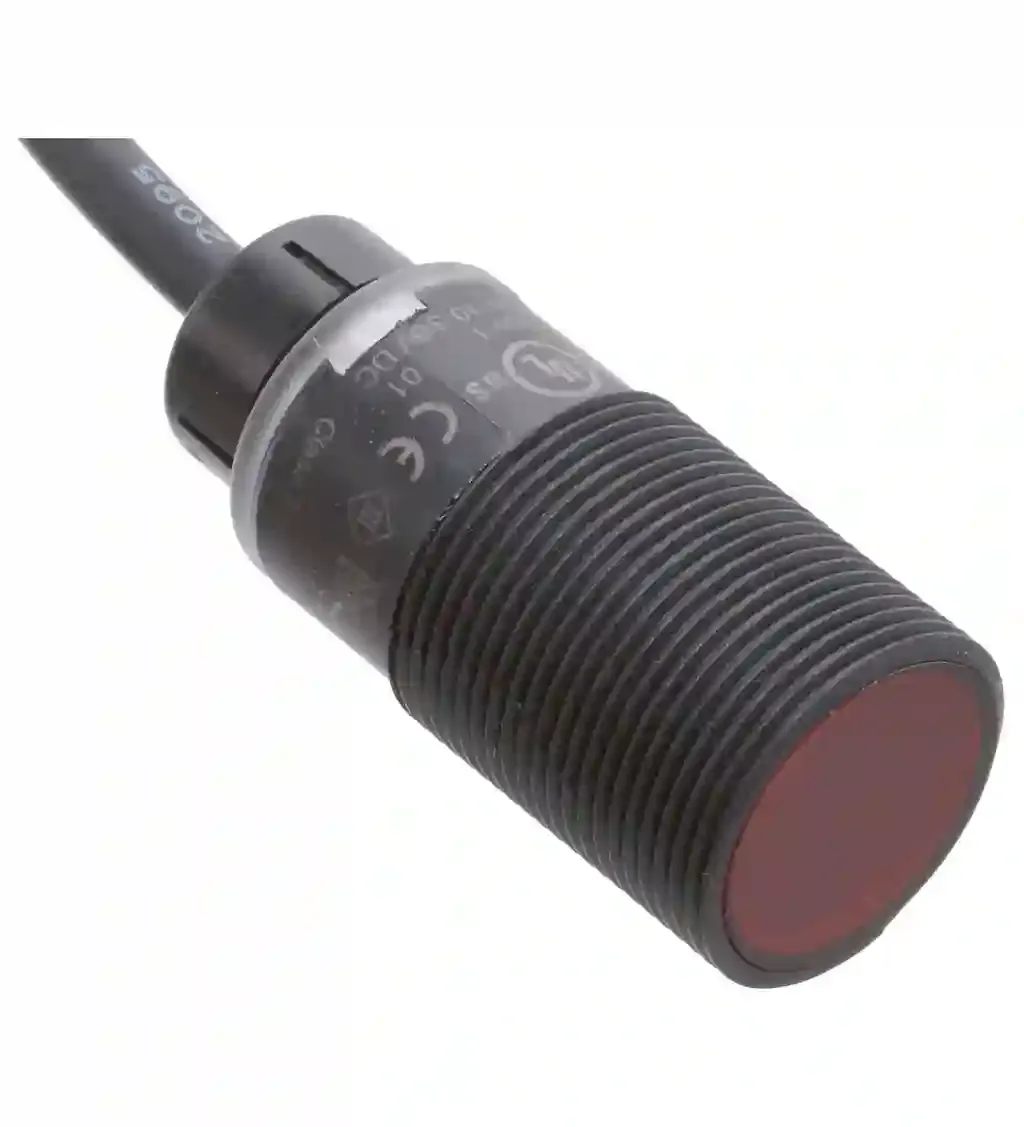

Pepperl Fuchs OBD600-18GK40-E0

Diffuse mode sensor. Diffuse mode sensor, Short design in M18 plastic housing, Operating distance adjustable, Not sensitive to ambient light, Degree of protection IP67, High operating distance. Detection range: 0 … 600 mm. Detection range min.: 0 … 30 mm. Detection range max.: 0 … 600 mm. Adjustment range: 30 … 600 mm. Reference target: standard white 200 mm X 200 mm. Light source: LED. Light type: modulated visible red light. Diameter of the light spot: approx. 40 mm at 600 mm. Opening angle: approx. 2.6 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 20000 Lux. Hysteresis: < 15 %. MTTFd: 1289 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on – power onflashing (4 Hz) – short circuit. Function indicator: LED yellow:constantly on – object detectedconstantly off – object not detected. Control elements: sensitivity adjustment. Operating voltage: 10 … 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA. Protection class: III. Switching type: Q – Pin4: NPN normally open / light-on. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 … 60 °C (-40 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMACablePVC: . Housing: PC (Polycarbonate). Optical face: PMMA. Cable: PVC. Mass: approx. 54 g. Dimensions: . Length40 mmDiameter18 mmThread sizeM18: . Length: 40 mm. Diameter: 18 mm. Thread size: M18
