Pepperl Fuchs NRN75-FP-A2-C-P3-V1

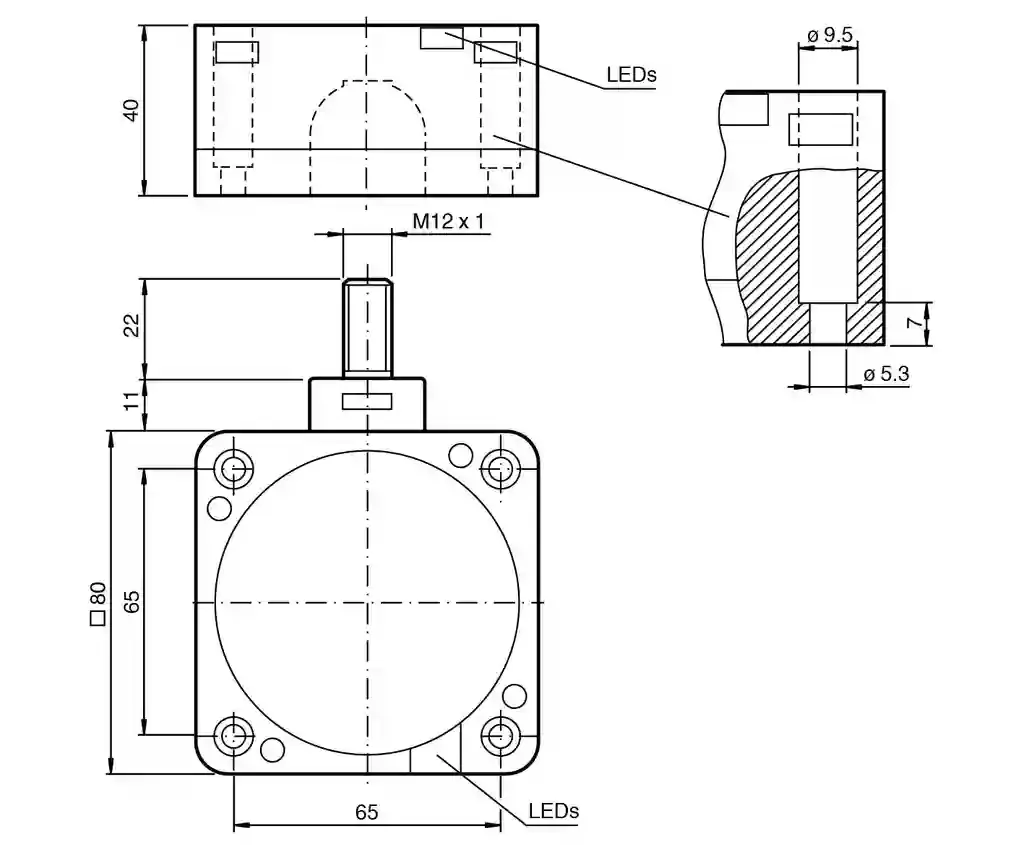

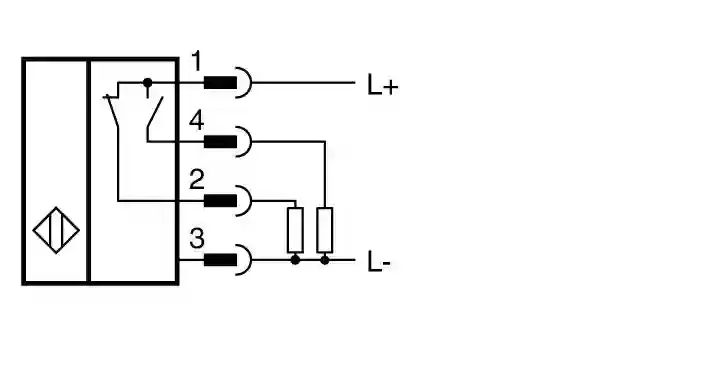

Inductive sensor. Reduction factor 1, magnetic field resistant, Switching function: complementary, Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Ambient temperature: -25 … 70 °C (-13 … 158 °F) , Connection type: Connector plug, Housing material: PBT/metal, Degree of protection: IP68, Threading: M12 x 1. Switching function: complementary. Output type: PNP. Rated operating distance: 75 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 55 mm. Reduction factor rAl: 1. Reduction factor rCu: 1. Reduction factor r304: 1. Reduction factor rSt37: 1. Output type: 4-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 1 Hz. Hysteresis: typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Temperature drift: ± 10 % at 0 … 50 °C (32 … 122 °F) ± 20 % at -25 … 0 °C (-13 … 32 °F) and 50 … 70 °C (122 … 158 °F). Rated insulation voltage: 50 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 300 ms. Constant magnetic field: 5 mT. Alternating magnetic field: 5 mT. Tuning-out: typ. 75 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 824 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: Connector plug. Housing material: PBT/metal. Sensing face: PBT, PTFE coated. Housing base: PBT. Degree of protection: IP68. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height40 mmWidth80 mmLength80 mm: . Height: 40 mm. Width: 80 mm. Length: 80 mm
