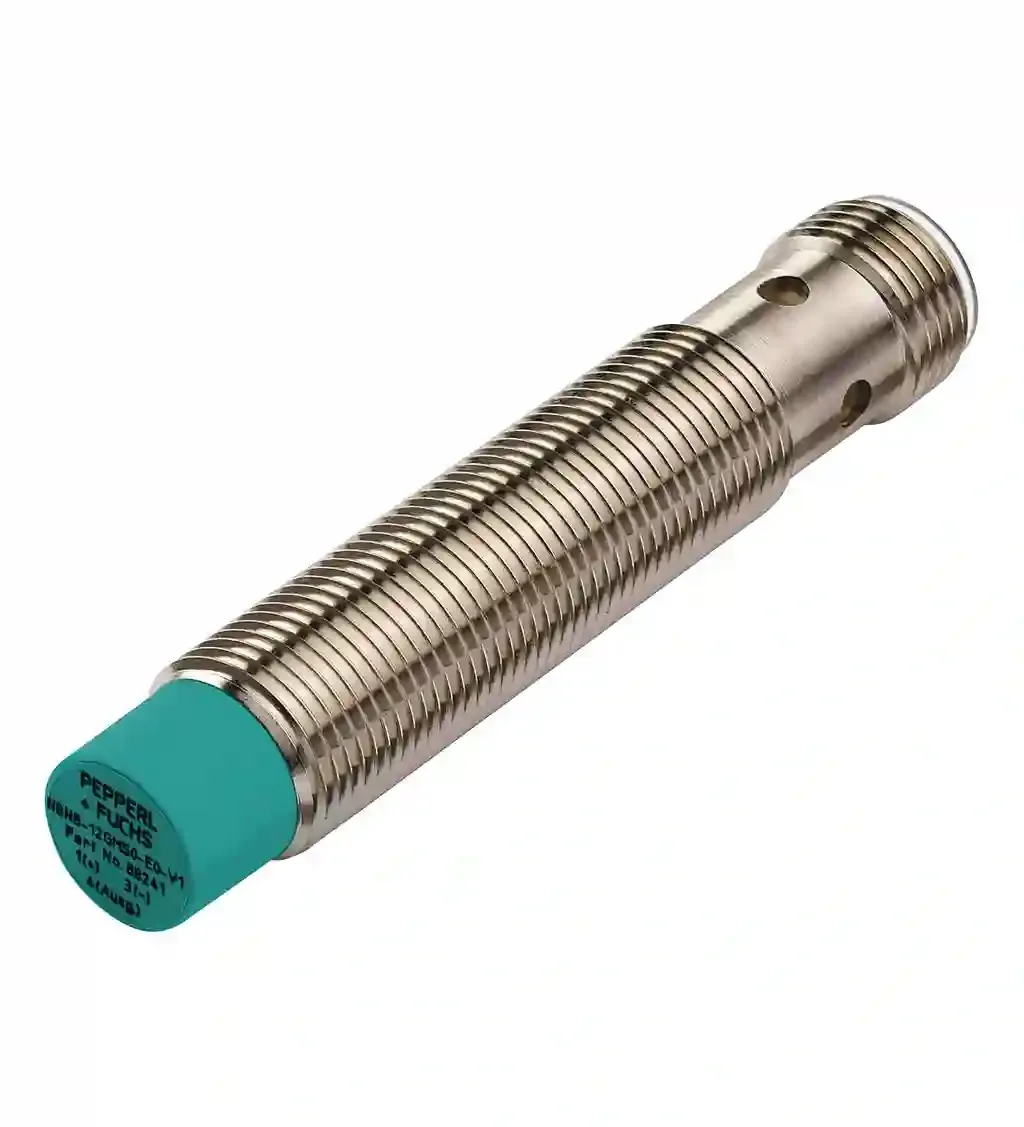

Pepperl Fuchs NRN10-12GS40-E2-IO-V1

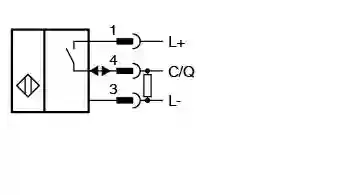

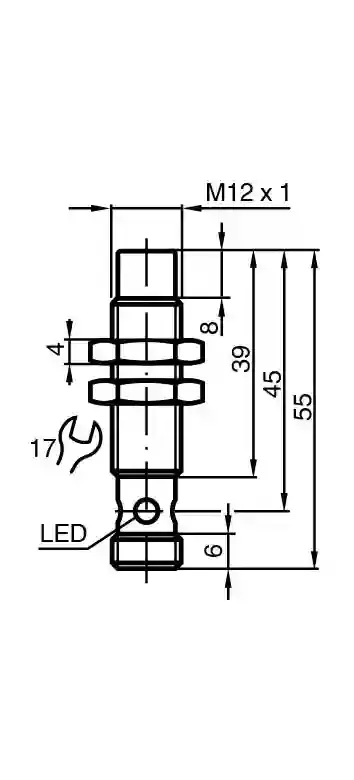

Inductive sensor. Reduction factor 1, magnetic field resistant, Switching function: Normally open/closed (NO/NC) programmable, Output type: PNP, Rated operating distance: 10 mm (factory setting), Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 … 30 V DC, Switching frequency: 0 … 1300 Hz (switch point mode) 0 … 80 Hz (window mode, switch point mode with stability alarm), Type of voltage: DC. Switching function: Normally open/closed (NO/NC) programmable. Output type: PNP. Rated operating distance: 10 mm (factory setting). Near operating distance: 8 mm (can be activated by software). Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 8.1 mm. Reduction factor rAl: 1. Reduction factor rCu: 1. Reduction factor r304: 1. Reduction factor rSt37: 1. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 1300 Hz (switch point mode) 0 … 80 Hz (window mode, switch point mode with stability alarm). Hysteresis: typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 0.5 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA typ. 60 µA at 25 °C. No-load supply current: ≤ 15 mA. Time delay before availability: max. 150 ms. Constant magnetic field: 200 mT. Alternating magnetic field: 200 mT. Status indicator: Multihole-LED, yellow. MTTFd: 362 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Device ID: 0x201104 (2101508). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: Process data input (control system side): 2 Bit Process data output (control system side): none. SIO mode support: yes. Compatible master port type: A. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Protection class: II. Rated insulation voltageUi60 VRated impulse withstand voltageUimp800 V: Ui. Rated insulation voltage: 60 V. Rated impulse withstand voltage: 800 V. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Mass: 24 g. Dimensions: . Length55 mmDiameter12 mm: . Length: 55 mm. Diameter: 12 mm. Default setting: operating mode = switch point mode with stability alarm switching function = Normally open (NO) switching distance = 10 mm. Scope of delivery: 2 self locking nuts in scope of delivery
