Pepperl Fuchs NRB2-8GM40-E2-C-V1

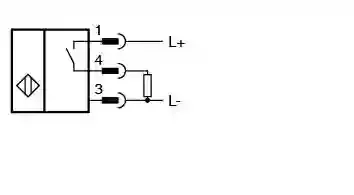

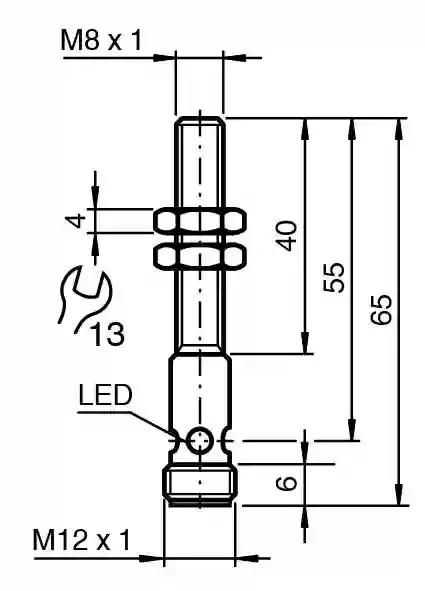

Inductive sensor. Reduction factor 1, magnetic field resistant, Weld immune proximity sensors, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: Brass, PTFE coated, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 1.62 mm. Reduction factor rAl: 1. Reduction factor rCu: 1. Reduction factor r304: 1. Reduction factor rSt37: 1. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 1000 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: 0 … 100 mA. Off-state current: 0 … 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 15 mA. Constant magnetic field: 200 mT. Alternating magnetic field: 200 mT. Switching state indicator: Multihole-LED, yellow. MTTFd: 1010.5 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: Brass, PTFE coated. Sensing face: LCP , black. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Dimensions: . Length40 mmDiameter8 mm: . Length: 40 mm. Diameter: 8 mm
