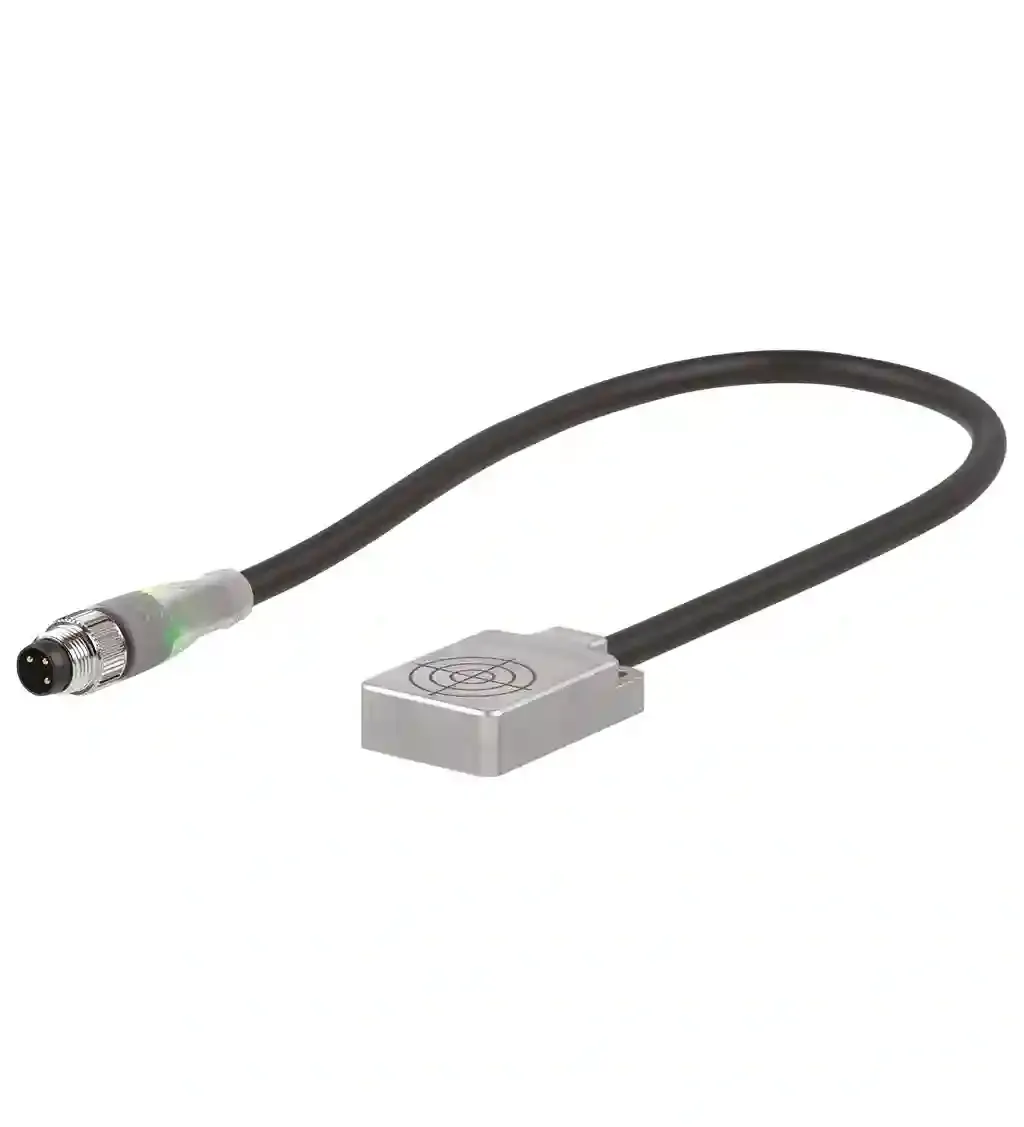

Pepperl Fuchs NMB6-F104M-E2-NFE-200MM-V3

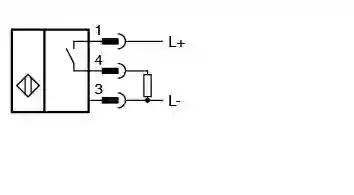

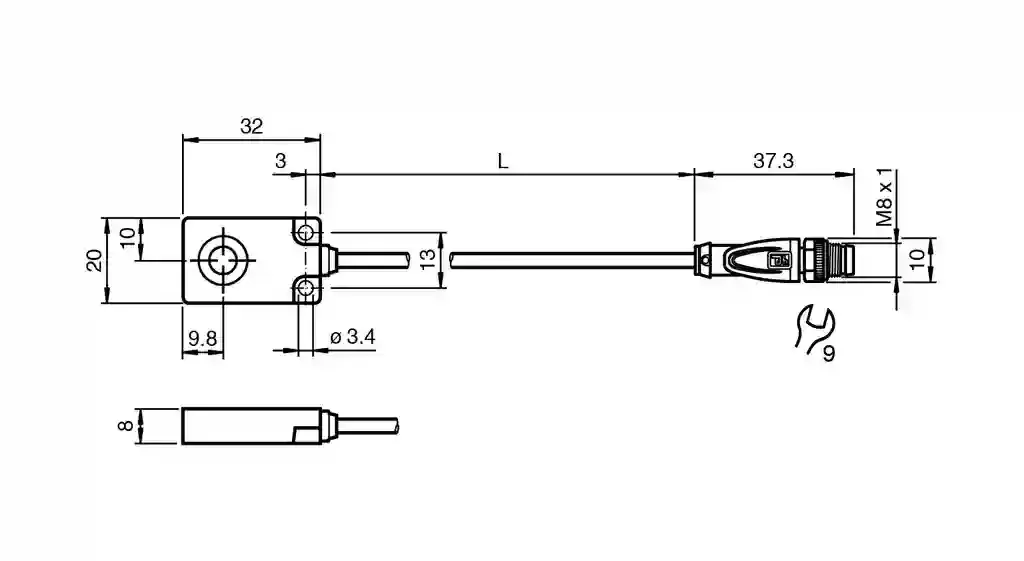

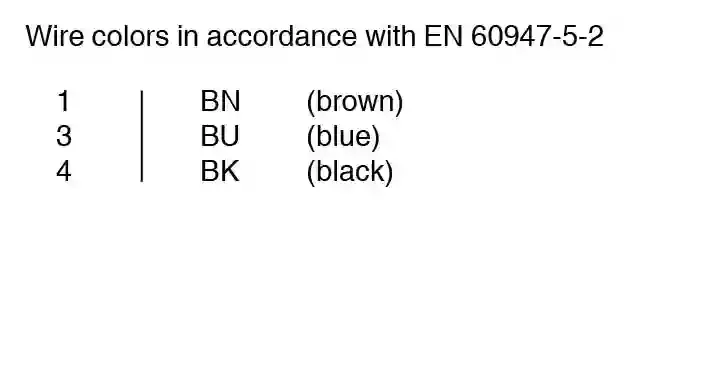

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output type: 3-wire, Series: Rectangular type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: Stainless steel 1.4305 / AISI 303 , Degree of protection: IP67, Threading: M8 x 1, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 6 mm. Installation: flush. Assured operating distance: 0 … 4.86 mm. Actuating element: Nonferrous targets. Reduction factor rAl: 1. Reduction factor rCu: 1.1. Reduction factor r304: 0. Reduction factor rSt37: 0. Reduction factor rBrass: 0.9. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 20 Hz. Hysteresis: 5 … 15 typ. 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Voltage drop: ≤ 2 V. Operating current: ≤ 100 mA. Current consumption: ≤ 22 mA. Off-state current: ≤ 10 µA. Operation indicator: Dual LEDGreen: powerYellow: output. Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: fixed cable with plug. Housing material: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Connector: . ThreadingM8 x 1Tightening torque≤ 0.4 NmNumber of pins3: . Threading: M8 x 1. Tightening torque: ≤ 0.4 Nm. Number of pins: 3. Cable: . Cable diameter4.3 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL200 mm: . Cable diameter: 4.3 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 200 mm. Dimensions: . Height8 mmWidth20 mmLength32 mm: . Height: 8 mm. Width: 20 mm. Length: 32 mm
