Pepperl Fuchs NMB6-F104M-E2-NFE

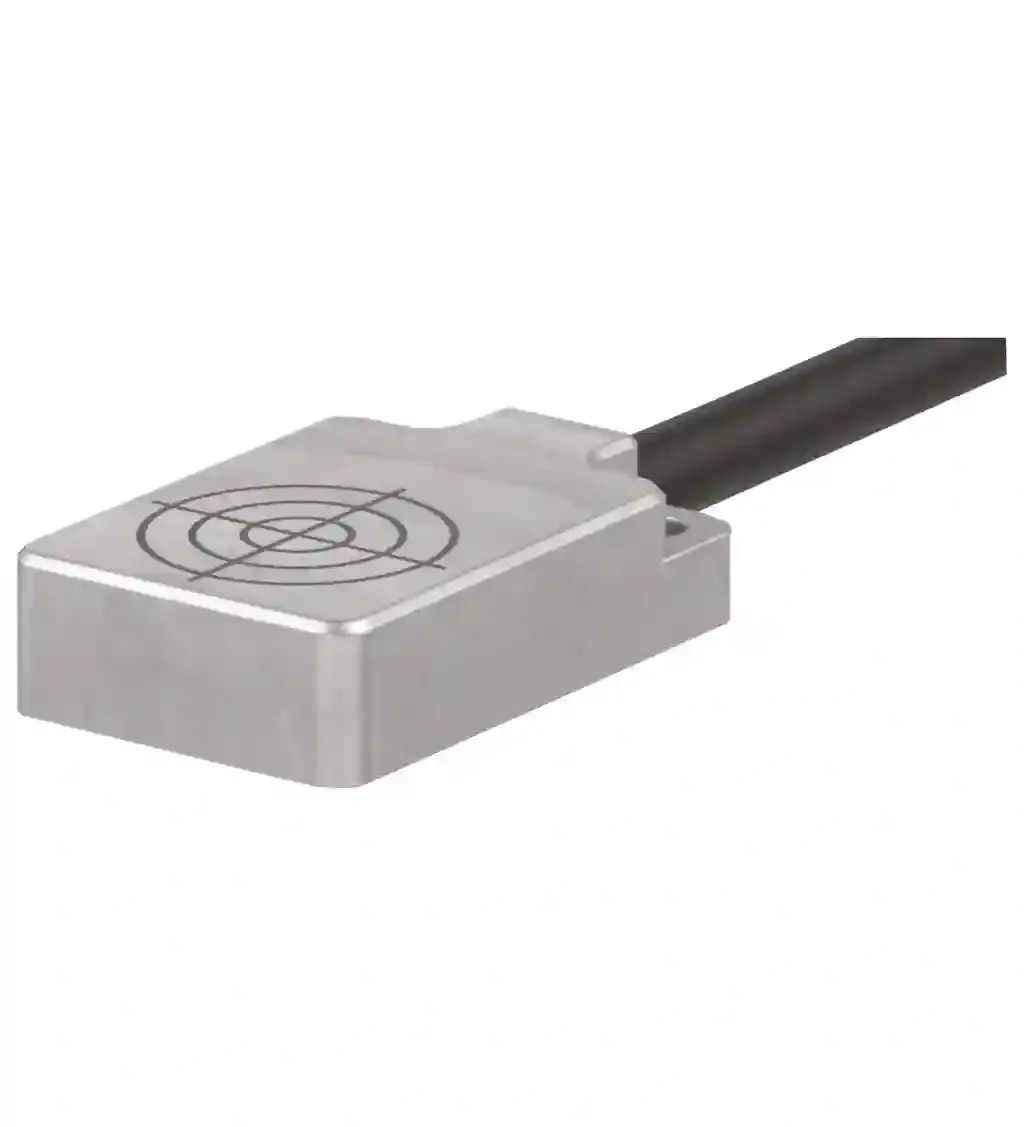

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output type: 3-wire, Series: Rectangular type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303 , Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 6 mm. Installation: flush. Assured operating distance: 0 … 4.86 mm. Actuating element: Nonferrous targets. Reduction factor rAl: 1. Reduction factor rCu: 1.1. Reduction factor r304: 0. Reduction factor rSt37: 0. Reduction factor rBrass: 0.9. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 20 Hz. Hysteresis: 5 … 15 typ. 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Voltage drop: ≤ 2 V. Operating current: ≤ 100 mA. Current consumption: ≤ 10 mA. Off-state current: ≤ 10 µA. Operation indicator: LED red: Output ( rear visible ). Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Height8 mmWidth20 mmLength32 mm: . Height: 8 mm. Width: 20 mm. Length: 32 mm
