Pepperl Fuchs NMB3-8GM23-Z9-C-850MM-V1

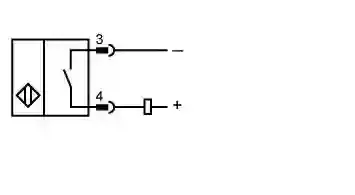

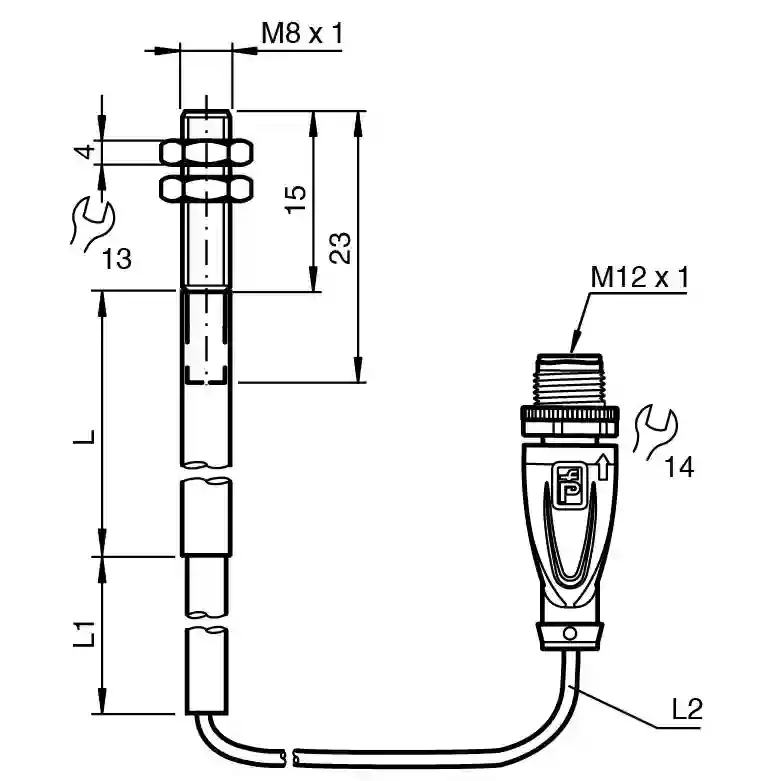

Inductive sensor. Metal face proximity sensors, metal face, Weld immune proximity sensors, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 6 … 30 V DC, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: Xylan coated – Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1, Material: POC. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 3 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 2.43 mm. Actuating element: Ferrous targets. Reduction factor rAl: 0.3. Reduction factor r304: 0.8. Output type: 2-wire. Operating voltage: 6 … 30 V DC. Switching frequency: 5 Hz. Hysteresis: 5 … 15 typ. 10 %. Reverse polarity protection: reverse polarity-conductive. Short-circuit protection: pulsing. Voltage drop: < 3 V. Operating current: 2 … 100 mA. Off-state current: < 500 µA. Switching state indicator: LED, red. Mag. Field strength, AC fields: 250 mT. Mag. Field strength, DC fields: 250 mT. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CSA approval: cCSAus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: fixed cable with plug. Housing material: Xylan coated – Stainless steel 1.4305 / AISI 303. Sensing face: Xylan coated – Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Connector: . ThreadingM12 x 1Tightening torque≤ 0.6 NmNumber of pins3: . Threading: M12 x 1. Tightening torque: ≤ 0.6 Nm. Number of pins: 3. Cable: . Cable diameter4.8 mm ± 0.2 mmMaterialPOCColororangeNumber of cores4Core cross section0.34 mm2LengthL500 mm further length specifications: L1 = 50 mm L2 = 300 mm: . Cable diameter: 4.8 mm ± 0.2 mm. Material: POC. Color: orange. Number of cores: 4. Core cross section: 0.34 mm2. Length: 500 mm further length specifications: L1 = 50 mm L2 = 300 mm. Mass: 58 g. Dimensions: . Length23 mmDiameter8 mm: . Length: 23 mm. Diameter: 8 mm
