Pepperl Fuchs NMB2-12GM75-Z0-C-FE-V1

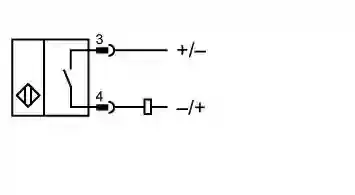

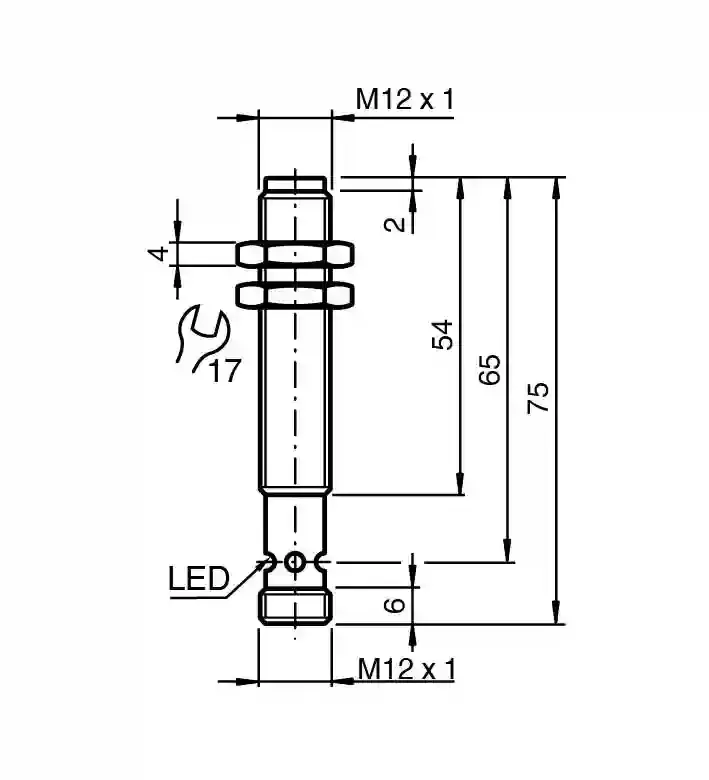

Inductive sensor. Metal face proximity sensors, metal face, Weld immune proximity sensors, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 6 … 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: Xylan coated – Stainless steel 1.4305 / AISI 303. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 1.62 mm. Actuating element: Ferrous targets. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.75. Reduction factor rSt37: 1. Reduction factor rBrass: 0. Output type: 2-wire. Operating voltage: 6 … 30 V DC. Switching frequency: 0 … 5 Hz. Hysteresis: 3 … 15 typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Short-circuit protection: no. Voltage drop: ≤ 5.5 V DC. Operating current: 2 … 100 mA. Off-state current: ≤ 800 µA. Switching state indicator: Multihole-LED, yellow. Mag. Field strength, AC fields: 250 mT. Mag. Field strength, DC fields: 250 mT. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: Connector plug. Housing material: Xylan coated – Stainless steel 1.4305 / AISI 303. Sensing face: Xylan coated – Stainless steel 1.4305 / AISI 303. Degree of protection: IP67 / IP68 / IP69K – cordset dependent according to cable specification. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Mass: 35 g. Dimensions: . Length75 mmDiameter12 mm: . Length: 75 mm. Diameter: 12 mm
