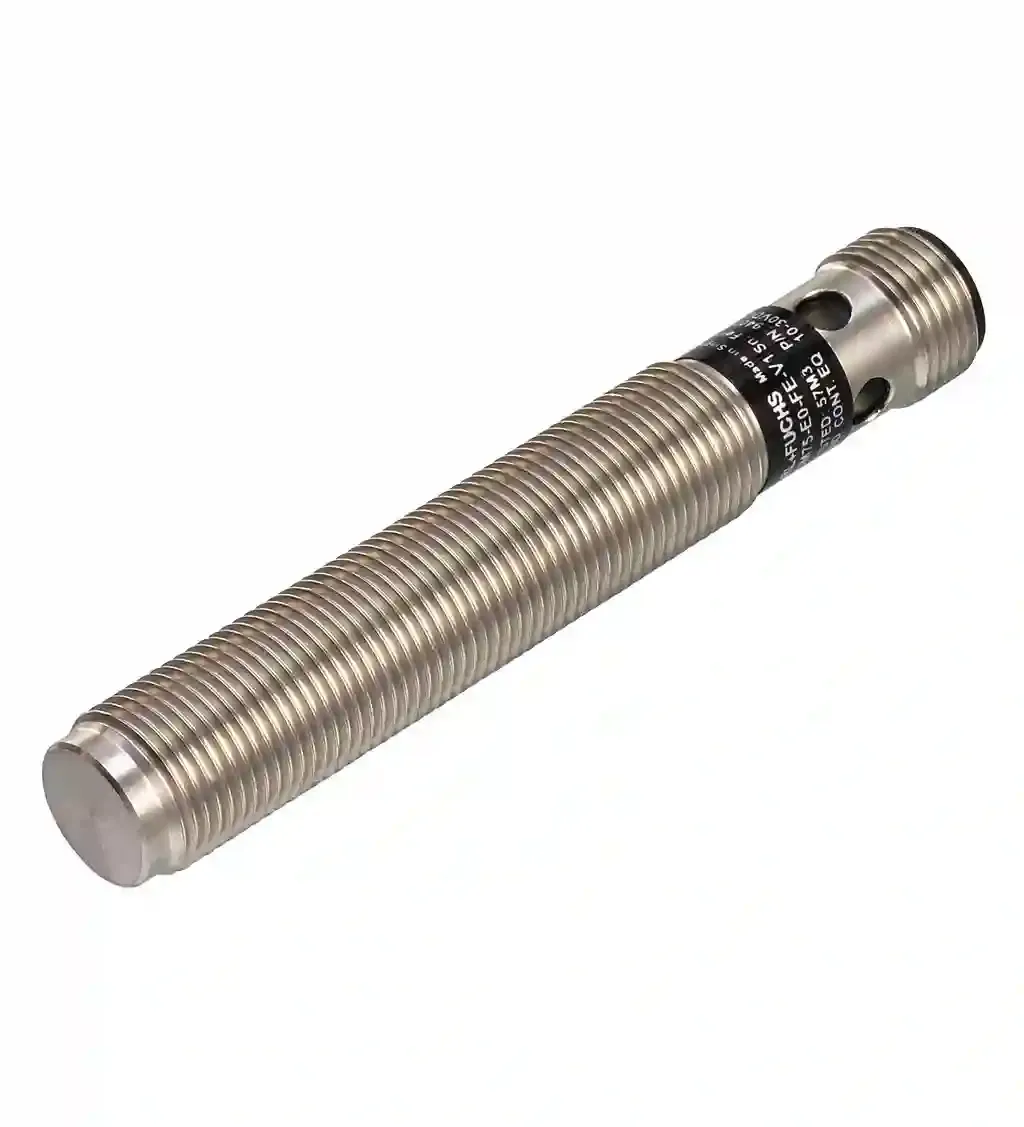

Pepperl Fuchs NMB2-12GM65-E2-FE-V1
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, C…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67 / IP68 / IP69K – cordset dependent according to cable specification, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 1.62 mm. Actuating element: Ferrous targets. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.25. Reduction factor r316Ti: 0.1. Reduction factor rSt37: 1. Reduction factor rBrass: 0. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 100 Hz. Hysteresis: 3 … 15 typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V DC. Operating current: ≤ 200 mA For a temperature range above 50°C, the permissible operating current IL ≤ 150 mA. Current consumption: < 14 mA. Off-state current: ≤ 10 µA. MTTFd: 990 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: 4-way dual LEDGreen: powerYellow: output. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 … 70 °C (-40 … 158 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67 / IP68 / IP69K – cordset dependent according to cable specification. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Length65 mmDiameter12 mm: . Length: 65 mm. Diameter: 12 mm
Specification
General specifications
| Switching function | Normally open (NO) |
|---|---|
| Output type | PNP |
| Rated operating distance | 2 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 1.62 mm |
| Actuating element | Ferrous targets |
| Reduction factor rAl | 0 |
| Reduction factor rCu | 0 |
| Reduction factor r304 | 0.25 |
| Reduction factor r316Ti | 0.1 |
| Reduction factor rSt37 | 1 |
| Reduction factor rBrass | 0 |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 30 V DC |
|---|---|
| Switching frequency | 100 Hz |
| Hysteresis | 3 ... 15 typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2 V DC |
| Operating current | ≤ 200 mA For a temperature range above 50°C, the permissible operating current IL ≤ 150 mA |
| Current consumption | < 14 mA |
| Off-state current | ≤ 10 µA |
Functional safety related parameters
| MTTFd | 990 a |
|---|---|
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | 4-way dual LEDGreen: powerYellow: output |
|---|
Compliance with standards and directives
| Standard conformity | |
|---|---|
| StandardsEN IEC 60947-5-2 | |
| Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
|---|---|
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
|---|
Mechanical specifications
| Connection type | Connector plug |
|---|---|
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP67 / IP68 / IP69K - cordset dependent according to cable specification |
| Connector | |
| ThreadingM12 x 1Number of pins4 | |
| Threading | M12 x 1 |
| Number of pins | 4 |

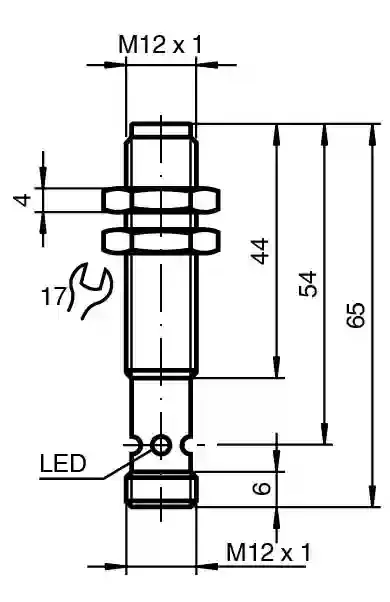

| Dimensions | |
| Length65 mmDiameter12 mm | |
| Length | 65 mm |
| Diameter | 12 mm |
