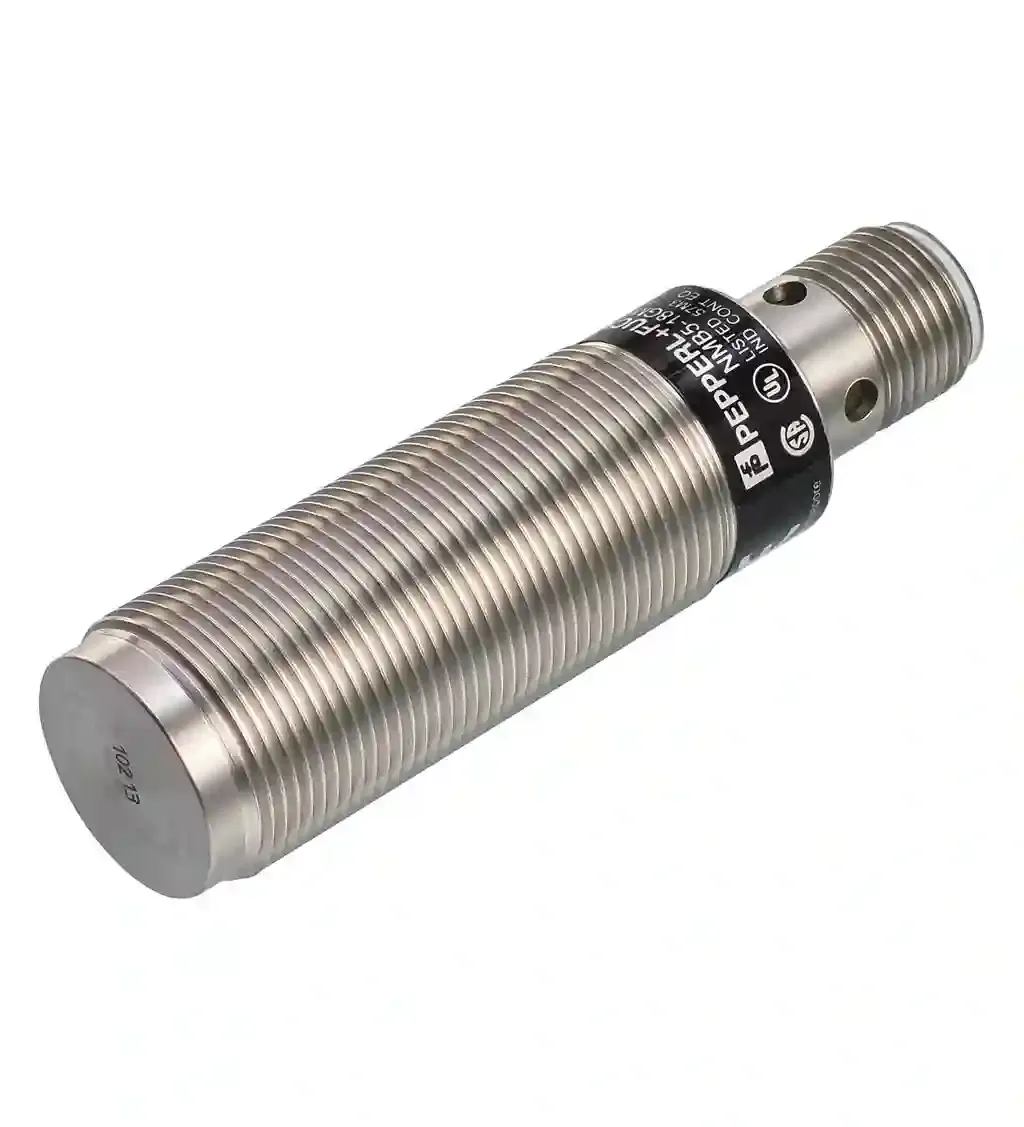

Pepperl Fuchs NMB10-18GM65-E0-V1
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: NPN, Installation: flush (Requirements: see drawing below), Output polarity: DC, Output…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: NPN, Installation: flush (Requirements: see drawing below), Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 10 mm. Installation: flush (Requirements: see drawing below). Output polarity: DC. Assured operating distance: 0 … 8.1 mm. Actuating element: Ferrous and nonferrous targets. Reduction factor rAl: 0.4. Reduction factor rCu: 0.25. Reduction factor r304: 0.85. Reduction factor rSt37: 1. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 240 Hz. Hysteresis: 3 … 15 typ. 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: ≤ 200 mA. Off-state current: 10 µA. No-load supply current: ≤ 15 mA. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 847 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Length65 mmDiameter18 mm: . Length: 65 mm. Diameter: 18 mm
Specification
General specifications
| Switching function | Normally open (NO) |
|---|---|
| Output type | NPN |
| Rated operating distance | 10 mm |
| Installation | flush (Requirements: see drawing below) |
| Output polarity | DC |
| Assured operating distance | 0 ... 8.1 mm |
| Actuating element | Ferrous and nonferrous targets |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.25 |
| Reduction factor r304 | 0.85 |
| Reduction factor rSt37 | 1 |

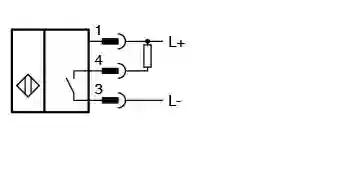

| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 30 V DC |
|---|---|
| Switching frequency | 0 ... 240 Hz |
| Hysteresis | 3 ... 15 typ. 10 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2 V |
| Operating current | ≤ 200 mA |
| Off-state current | 10 µA |
| No-load supply current | ≤ 15 mA |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
Functional safety related parameters
| MTTFd | 847 a |
|---|---|
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity | |
|---|---|
| StandardsEN IEC 60947-5-2 | |
| Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
|---|---|
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
|---|
Mechanical specifications
| Connection type | Connector plug |
|---|---|
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP67 |
| Connector | |
| ThreadingM12 x 1Number of pins4 | |
| Threading | M12 x 1 |
| Number of pins | 4 |

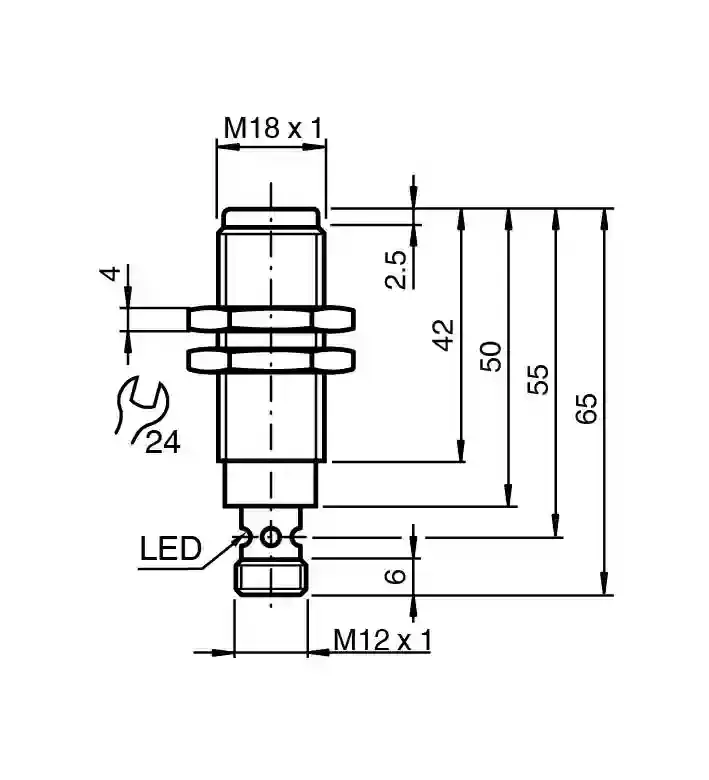

| Dimensions | |
| Length65 mmDiameter18 mm | |
| Length | 65 mm |
| Diameter | 18 mm |
