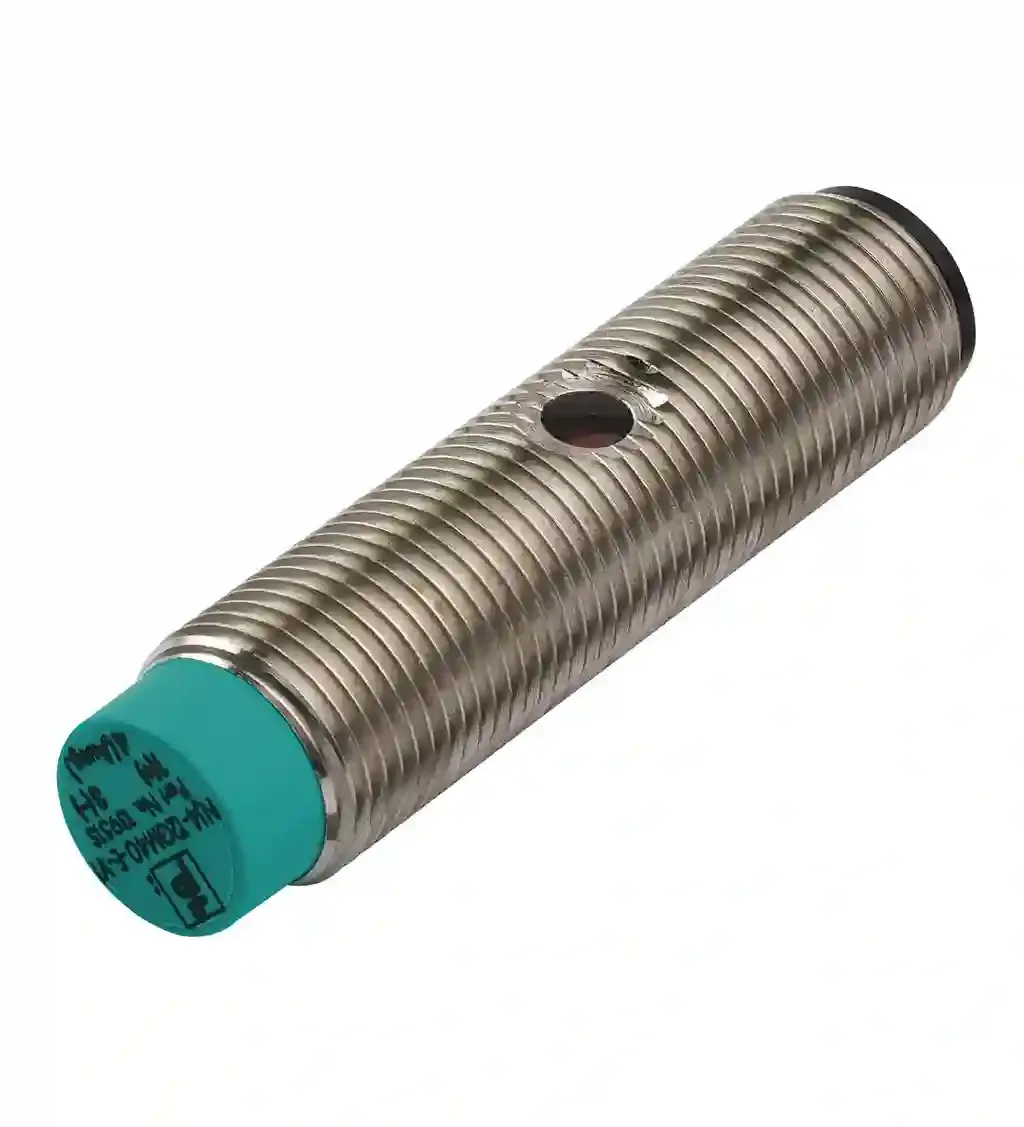

Pepperl Fuchs NJ4-12GM40-E3-V1

Inductive sensor. Switching function: Normally closed (NC), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally closed (NC). Output type: PNP. Rated operating distance: 4 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 3.24 mm. Actual operating distance: 3.6 … 4.4 mm typ.. Reduction factor rAl: 0.45. Reduction factor rCu: 0.4. Reduction factor r304: 0.75. Output type: 3-wire. Operating voltage: 10 … 60 V. Switching frequency: 0 … 2000 Hz. Hysteresis: 1 … 10 % typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Voltage drop at IL: . Voltage drop IL = 100 mA, switching element onUd1.2 … 2.5 V: Ud. Voltage drop IL = 100 mA, switching element on: 1.2 … 2.5 V. Operating current: 0 … 200 mA. No-load supply current: ≤ 9 mA. Time delay before availability: ≤ 20 ms. Switching state indicator: LED, yellow. MTTFd: 750 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm. Scope of delivery: 2 self locking nuts in scope of delivery
