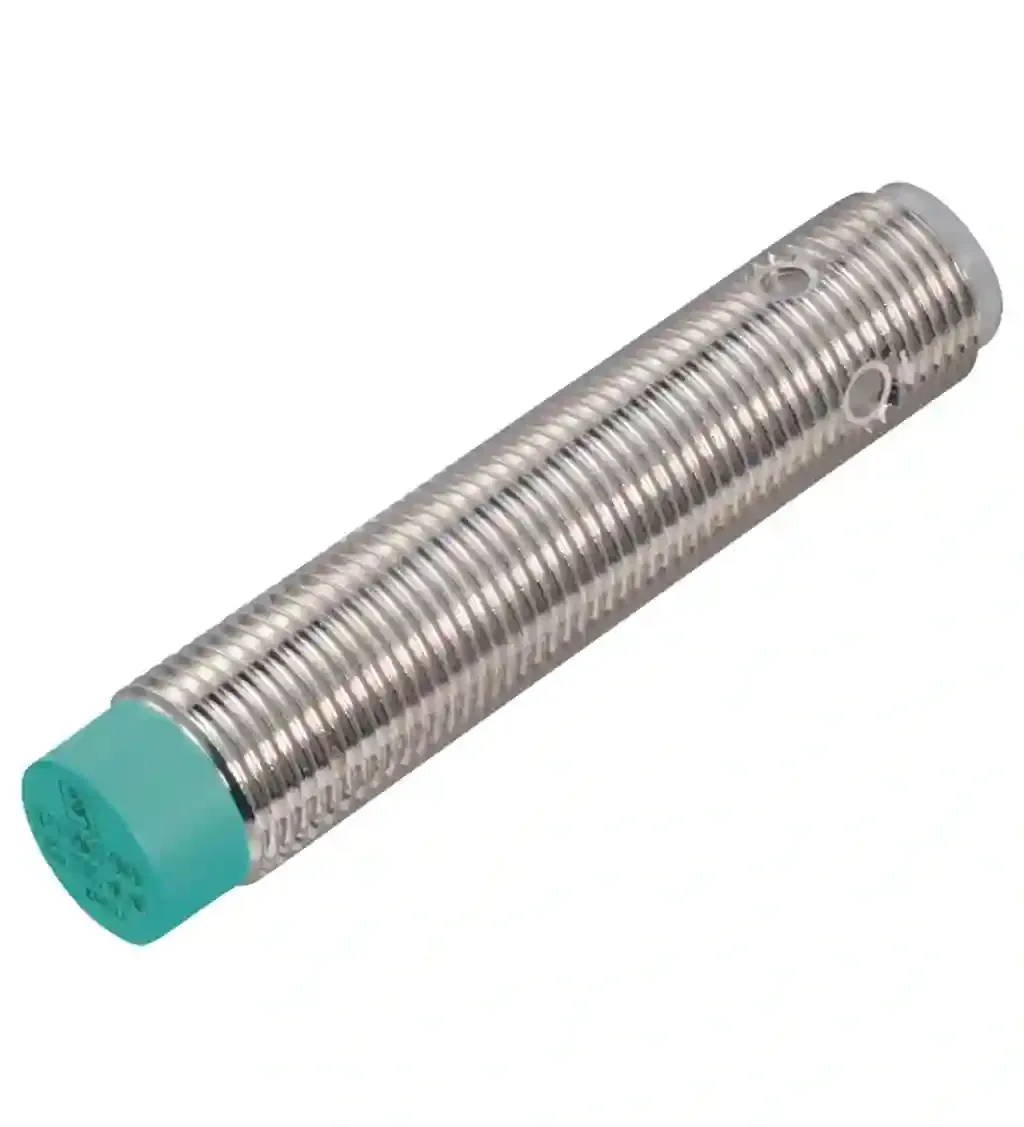

Pepperl Fuchs NEN10-12GM50-E2-V1

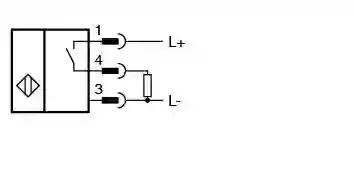

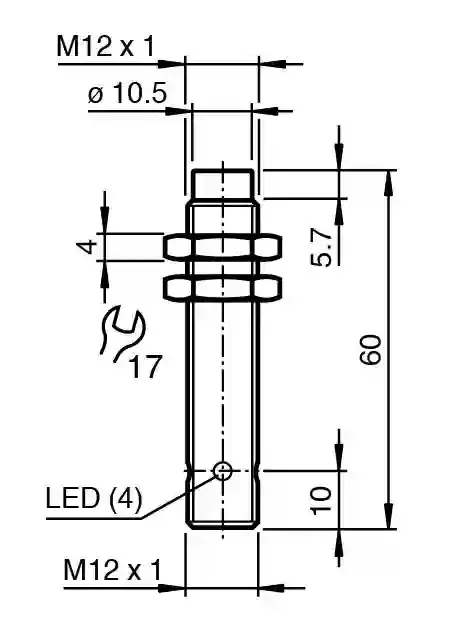

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 10 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 8.1 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 30 mm x 30 mm x 1 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.4. Reduction factor r304: 0.75. Reduction factor rBrass: 0.45. Output type: 3-wire. Installation conditions: . Ain steel 1.0037 (St37): 10 mmB12 mmC30 mmF42 mm: . A: in steel 1.0037 (St37): 10 mm. B: 12 mm. C: 30 mm. F: 42 mm. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 600 Hz. Hysteresis: 0.06 … 1 mm. Reverse polarity protection: yes. Short-circuit protection: pulsing. Overload resistance: yes. Wire breakage protection: yes. Surge suppression: yes. Ripple: 10 %. Voltage drop: ≤ 2 V. Repeat accuracy: 0.3 mm. Operating current: 0 … 200 mA , above 70°C max. 150 mA. Off-state current: ≤ 10 µA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 50 ms. Switching state indicator: LED, yellow. MTTFd: 1740 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 85 °C (-13 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Mass: 20 g. Dimensions: . Length60 mmDiameter12 mm: . Length: 60 mm. Diameter: 12 mm. Tightening torque: ≤ 10 Nm
