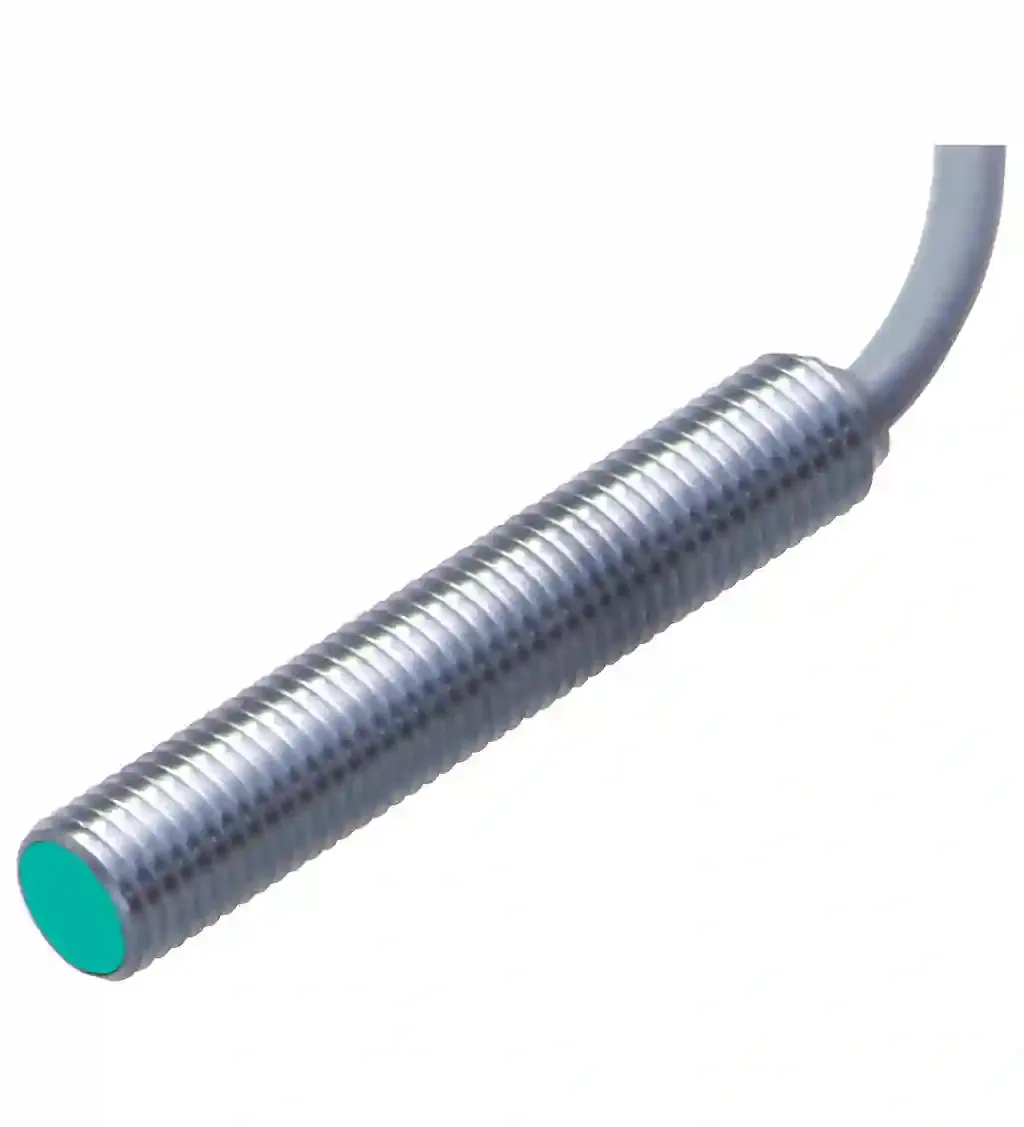

Pepperl Fuchs NEB4-8GM45-E2

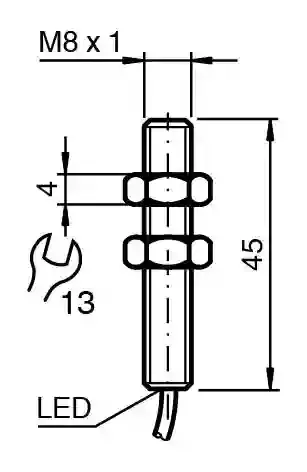

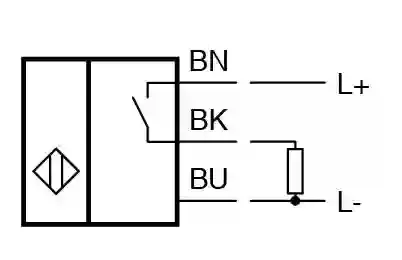

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: quasi flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: chromium plated brass, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 4 mm. Installation: quasi flush. Output polarity: DC. Assured operating distance: 0 … 3.24 mm. Reduction factor rAl: 0.25. Reduction factor rCu: 0.22. Reduction factor r304: 0.65. Output type: 3-wire. Operating voltage: 10 … 30 V. Switching frequency: 0 … 500 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.1 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 10 mA. Switching state indicator: LED, yellow. MTTFd: 311 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CSA approval: cCSAus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: cable. Housing material: chromium plated brass. Sensing face: PBT. Degree of protection: IP67. Cable: . MaterialPURCore cross section0.14 mm2LengthL2 m: . Material: PUR. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length45 mmDiameter8 mm: . Length: 45 mm. Diameter: 8 mm
