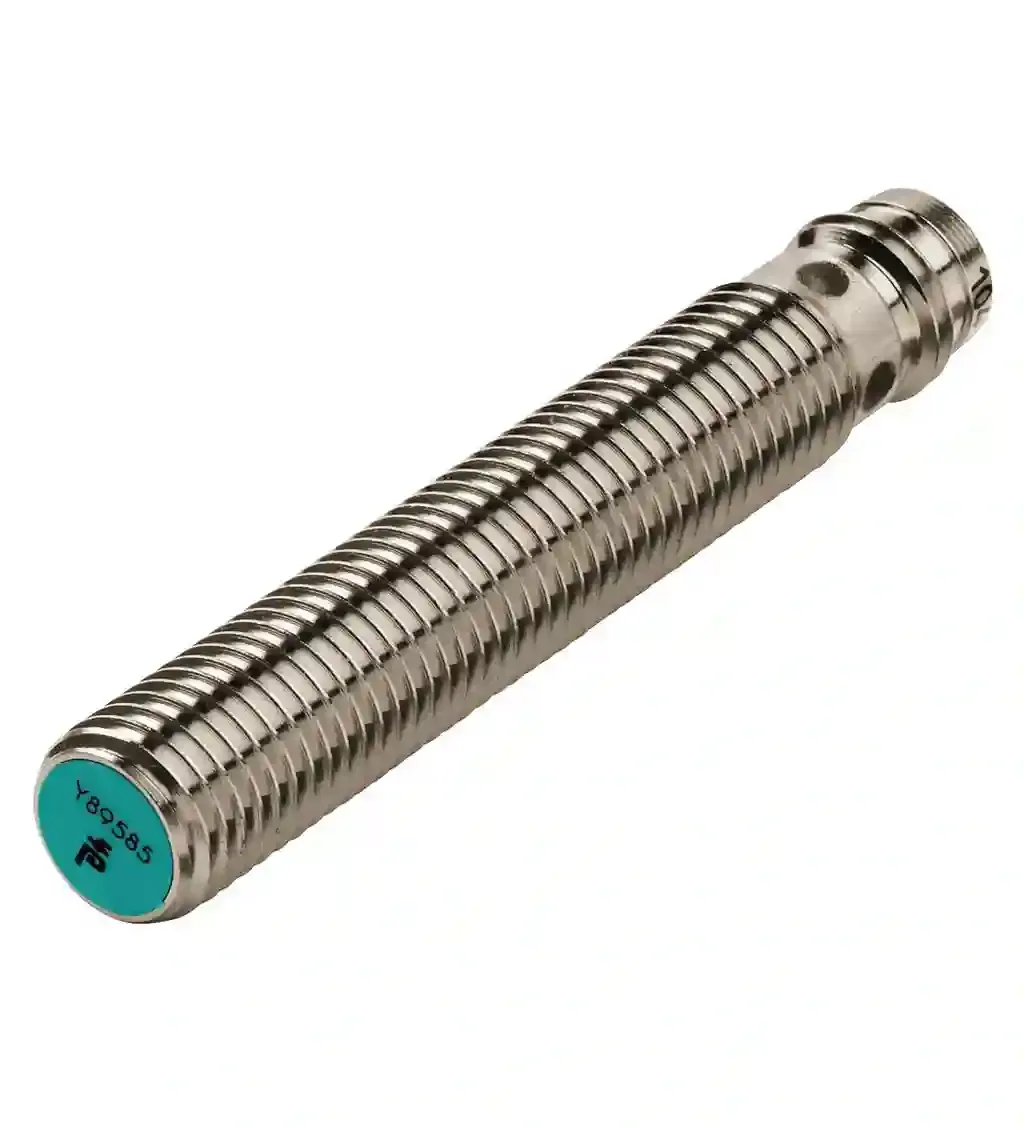

Pepperl Fuchs NEB3-8GM40-E1-V3

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP65 / IP66 / IP67, Threading: M8 x 1. Switching function: Normally closed (NC). Output type: NPN. Rated operating distance: 3 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 2.43 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 9 mm x 9 mm x 1 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.4. Reduction factor r304: 0.75. Reduction factor rBrass: 0.5. Output type: 3-wire. Operating voltage: 5 … 30 V. Switching frequency: 0 … 3500 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 … 100 mA. Off-state current: 0 … 0.2 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 100 ms. Switching state indicator: Multihole-LED, yellow. MTTFd: 960 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: LCP. Degree of protection: IP65 / IP66 / IP67. Connector: . ThreadingM8 x 1Number of pins3: . Threading: M8 x 1. Number of pins: 3. Dimensions: . Length55 mmDiameter8 mm: . Length: 55 mm. Diameter: 8 mm. Scope of delivery: 2 hex nuts included
