Pepperl Fuchs NCB50-FP-E2-P1

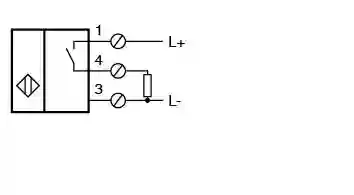

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 … 60 V DC, Type of voltage: DC, Connection type: screw terminals, Housing material: PBT, Degree of protection: IP68. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 50 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 40.5 mm. Reduction factor rAl: 0.38. Reduction factor rCu: 0.35. Reduction factor r304: 0.83. Output type: 3-wire. Operating voltage: 10 … 60 V DC. Switching frequency: 0 … 80 Hz. Hysteresis: typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 300 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 940 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: screw terminals. Information for connection: A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %. Core cross section: up to 2.5 mm2. Minimum core cross-sectionwithout wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2Maximum core cross-sectionwithout wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2: . Minimum core cross-section: without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2. Maximum core cross-section: without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2. Housing material: PBT. Sensing face: PBT. Housing base: PBT. Degree of protection: IP68. Dimensions: . Height40 mmWidth84 mmLength84 mm: . Height: 40 mm. Width: 84 mm. Length: 84 mm
