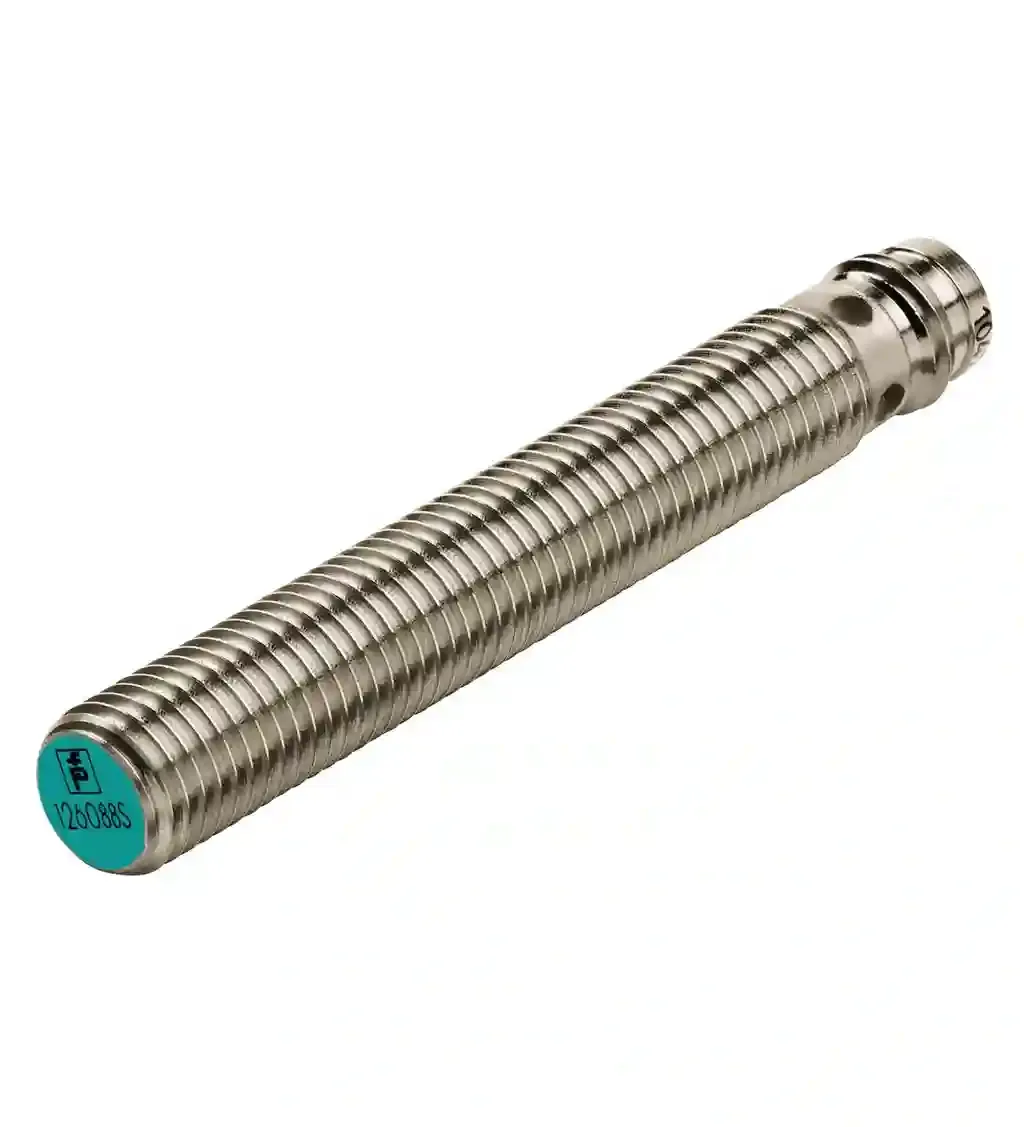

Pepperl Fuchs NCB1,5-8GM50-Z0-V3

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M8 x 1. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 1.21 mm. Actual operating distance: 1.35 … 1.65 mm typ.. Reduction factor rAl: 0.22. Reduction factor rCu: 0.16. Reduction factor r304: 0.64. Output type: 2-wire. Operating voltage: 5 … 60 V. Switching frequency: 0 … 1200 Hz. Hysteresis: 1 … 10 % typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Short-circuit protection: pulsing. Voltage drop: ≤ 5 V. Operating current: 2 … 100 mA. Lowest operating current: 2 mA. Off-state current: 0 … 0.5 mA typ.. Switching state indicator: LED, yellow. MTTFd: 1476 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 100 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: LCP. Degree of protection: IP67. Connector: . ThreadingM8 x 1Number of pins3: . Threading: M8 x 1. Number of pins: 3. Dimensions: . Length50 mmDiameter8 mm: . Length: 50 mm. Diameter: 8 mm
