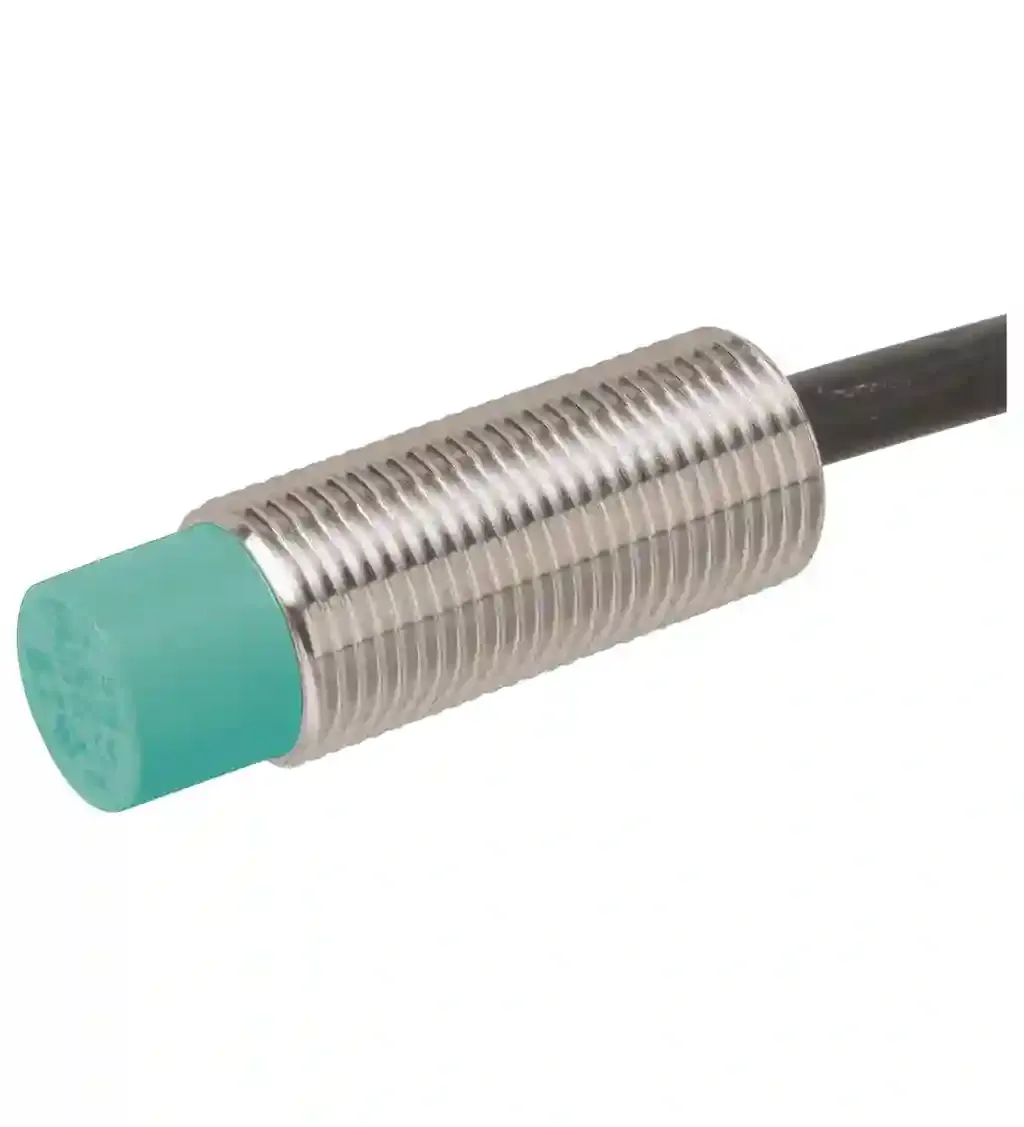

Pepperl Fuchs NBN7-12GM50-E1-M

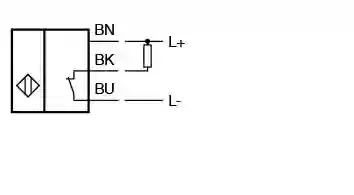

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Ambient temperature: -40 … 85 °C (-40 … 185 °F) , Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP68 / IP69K, Material: PUR. Switching function: Normally closed (NC). Output type: NPN. Rated operating distance: 7 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 5.67 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.35. Reduction factor r304: 0.7. Reduction factor rBrass: 0.5. Output type: 3-wire. Operating voltage: 5 … 60 V. Switching frequency: 0 … 1500 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Inductive overvoltage protection: yes. Surge suppression: yes. Voltage drop: ≤ 2 V. Rated insulation voltage: 60 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 7 mA. Time delay before availability: ≤ 200 ms. Switching state indicator: LED, yellow. MTTFd: 1183 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CSA approval: cCSAus Listed, General Purpose, Class 2 Power Source. CCC approval: Certified by China Compulsory Certification (CCC). E1 Type approval: 10R-06. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP68 / IP69K. Cable: . Wire end ferrulesyesCable diameter6 mm ± 0.2 mmBending radius> 6 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6 mm ± 0.2 mm. Bending radius: > 6 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.75 mm2. Length: 2 m. Mass: 120 g. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm
