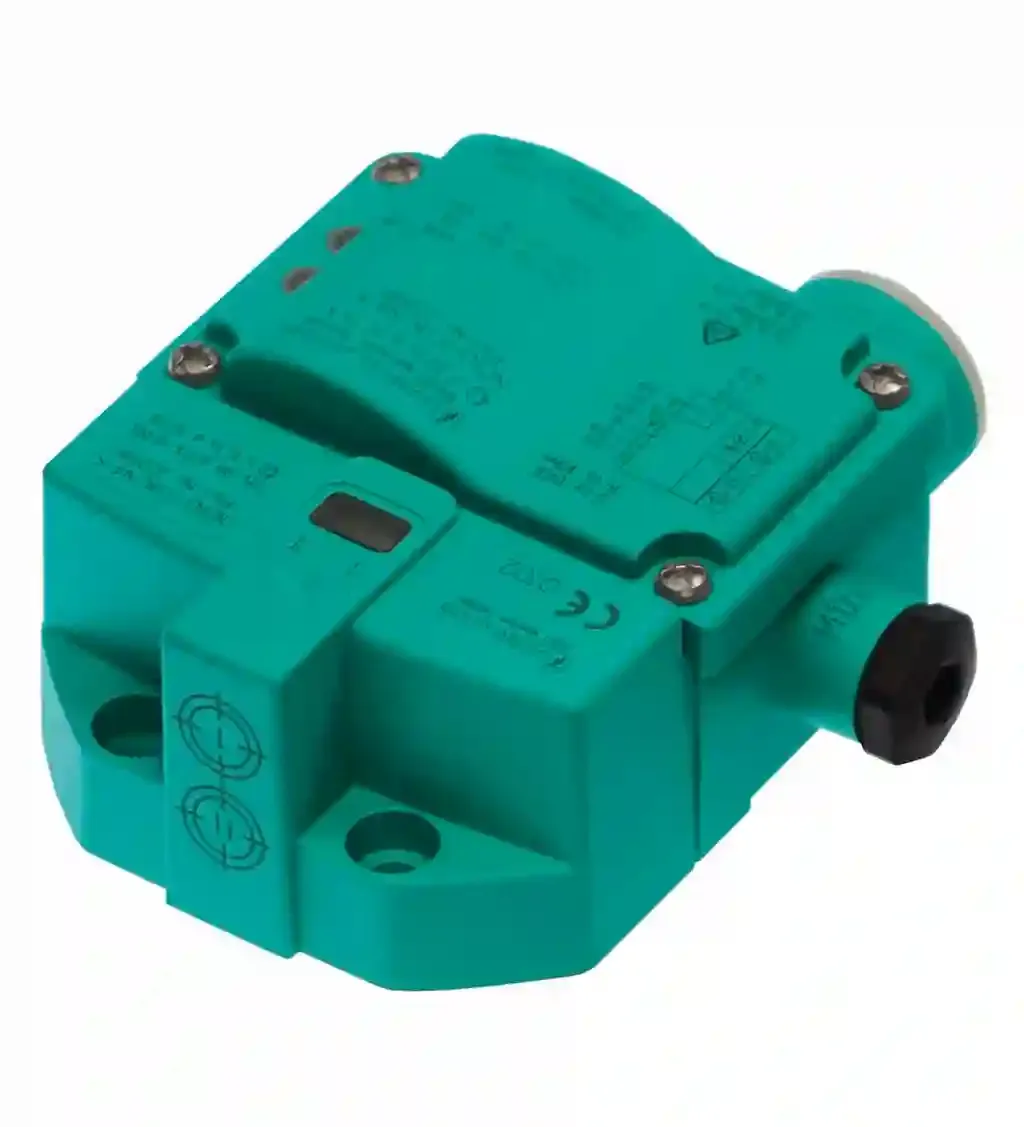

Pepperl Fuchs NBN3-F31K-E8-K

Inductive sensor. Valve position detection, Solenoid valve output, Switching function: 2 x normally open (NO), Output type: PNP, Installation: flush mountable, Output polarity: DC, Output type: 4-wire, Construction type: Dual sensor, Series: Dual sensor, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection (system side): Cage tension spring terminals, Housing material: PBT, Degree of protection: IP67. Switching function: 2 x normally open (NO). Output type: PNP. Rated operating distance: 3 mm. Installation: flush mountable. Output polarity: DC. Assured operating distance: 0 … 2.43 mm. Actual operating distance: 2.7 … 3.3 mm typ.. Reduction factor rAl: 0.5. Reduction factor rCu: 0.4. Reduction factor r304: 1. Reduction factor rSt37: 1.2. Output type: 4-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 500 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: all connections. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 … 100 mA. Off-state current: 0 … 0.5 mA typ. 0.1 µA. No-load supply current: ≤ 25 mA. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Valve status indicator: LED, yellow. MTTFd: 780 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Voltage: max. 32 V DC. Current: max. 240 mA. Short-circuit protection: no. Reverse polarity protection: yes, with reversed output LED is out of function, therfore more power for solenoid valve. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection (system side): Cage tension spring terminals. Core cross section (system side): 1.5/2.5 mm2 flexible/rigid. Connection (valve side): Cage tension spring terminals. Core cross section (valve side): 1.5/2.5 mm2 flexible/rigid. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Tightening torque, fastening screws: ≤ 5 Nm. Tightening torque, housing screws: 1 Nm. Tightening torque, cable gland: M20 x 1.5 ; max. 7 Nm M12 x 1.5 ; max. 1.5 Nm. Dimensions: . Height35.5 mmWidth65 mmLength77.5 mm: . Height: 35.5 mm. Width: 65 mm. Length: 77.5 mm
