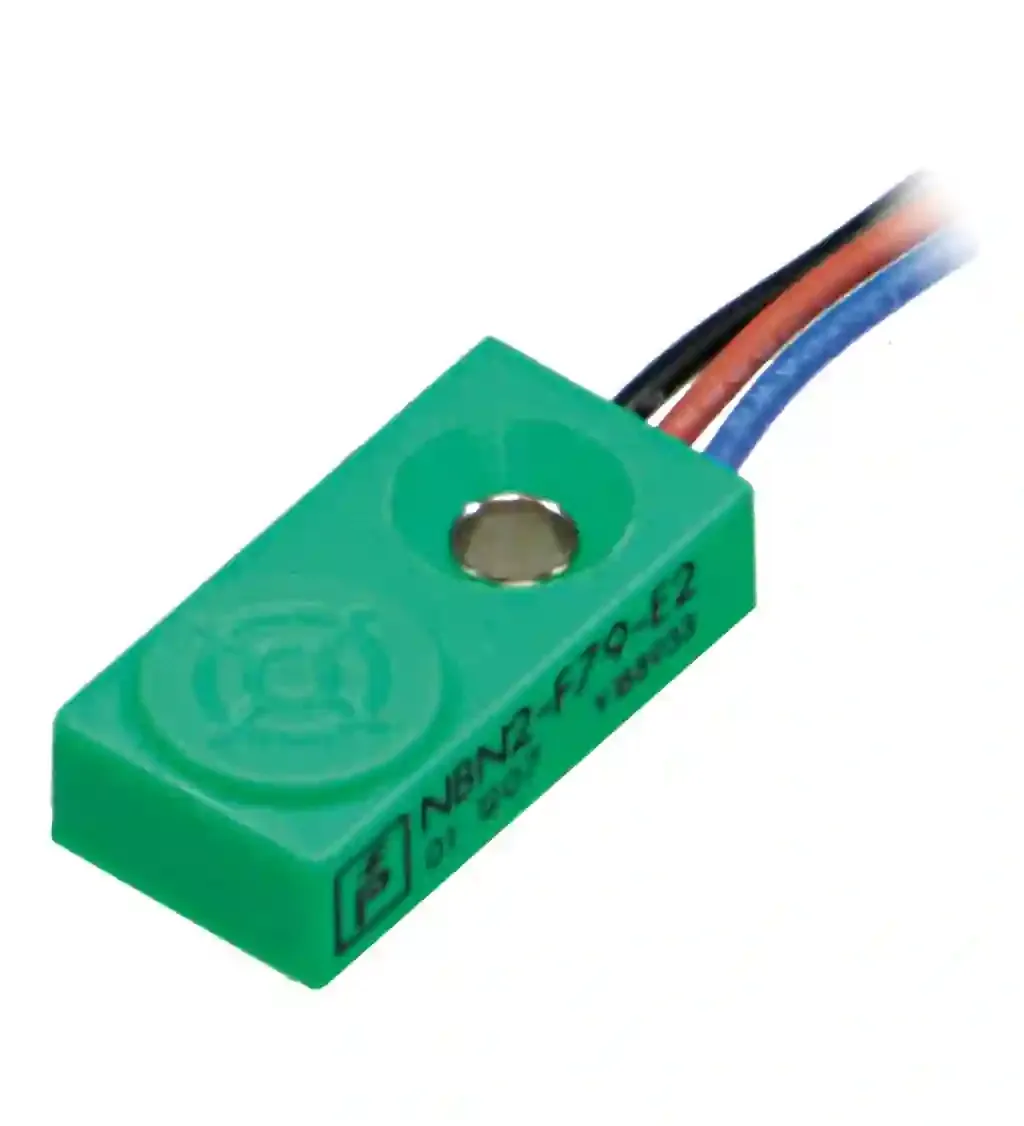

Pepperl Fuchs NBN2-F79-E2-Y188930

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 5 V -5% +10%, Type of voltage: DC, Connection type: flexible leads PVC , 200 mm , twisted, Housing material: PA, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 1.8 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.2. Reduction factor r304: 0.7. Output type: 3-wire. Operating voltage: 5 V -5% +10%. Switching frequency: 0 … 800 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: no. Short-circuit protection: pulsing. Voltage drop: ≤ 1.5 V. Operating current: 0 … 100 mA. Off-state current: ≤ 10 µA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 20 ms. MTTFd: 4830 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 5 V DC Output Switching Current: 100 mA. Ambient temperature: 15 … 35 °C (59 … 95 °F). Connection type: flexible leads PVC , 200 mm , twisted. Connection assembly: Molex socket housing 51021-0300 Molex crimp 50058-8000. Core cross section: 0.08 mm2. Housing material: PA. Sensing face: PA. Degree of protection: IP67. Dimensions: . Height4.7 mmWidth8 mmLength16 mm: . Height: 4.7 mm. Width: 8 mm. Length: 16 mm
