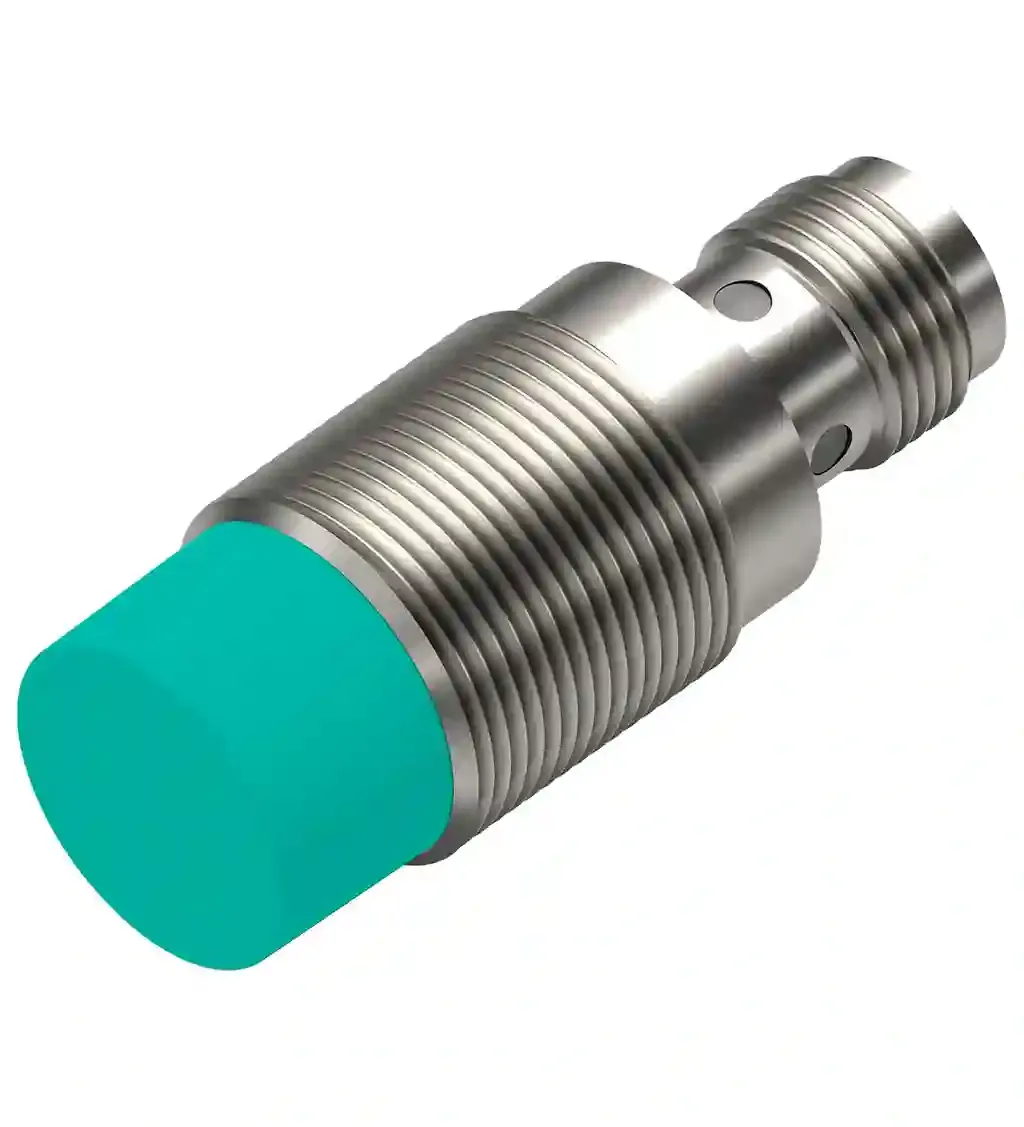

Pepperl Fuchs NBN12-18GM30-A0-V1

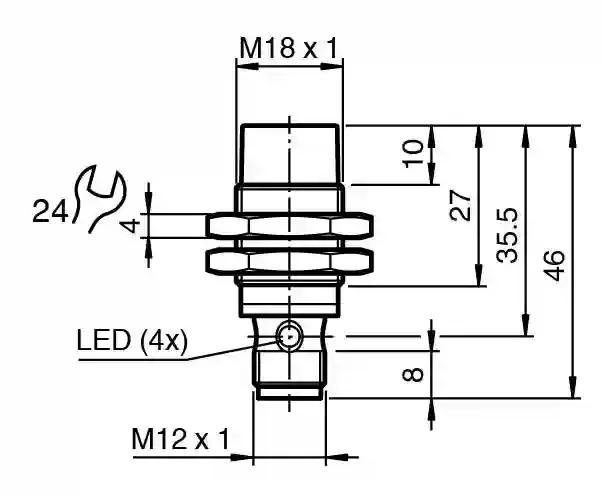

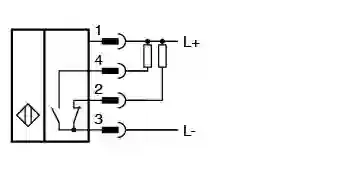

Inductive sensor. Extended temperature range, Switching function: complementary, Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass , white bronze coated, Degree of protection: IP65 / IP66 / IP67 / IP68, Threading: M12 x 1. Switching function: complementary. Output type: NPN. Rated operating distance: 12 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 9.72 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 36 mm x 36 mm x 1 mm. Reduction factor rAl: 0.49. Reduction factor rCu: 0.46. Reduction factor r304: 0.75. Reduction factor rBrass: 0.55. Output type: 4-wire. Operating voltage: 6 … 36 V. Switching frequency: 0 … 1300 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 1 V. Operating current: 0 … 200 mA. Off-state current: max. 150 µA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 10 ms. Switching state indicator: Multihole-LED, yellow. MTTFd: 1188 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. PWIS conformity: VDMA 24364-A1/B2/C1/T100°C-W. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Protection class: II. Rated insulation voltageUi36 VRated impulse withstand voltageUimp500 V: Ui. Rated insulation voltage: 36 V. Rated impulse withstand voltage: 500 V. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 36 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Marine approval: DNVGL TAA00003AK. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug. Housing material: brass , white bronze coated. Sensing face: PBT , green. Degree of protection: IP65 / IP66 / IP67 / IP68. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 44 g. Dimensions: . Length46 mmDiameter18 mm: . Length: 46 mm. Diameter: 18 mm. Mounting: with nuts, M18. Tightening torque: ≤ 30 Nm. Scope of delivery: 2 self locking nuts in scope of delivery
