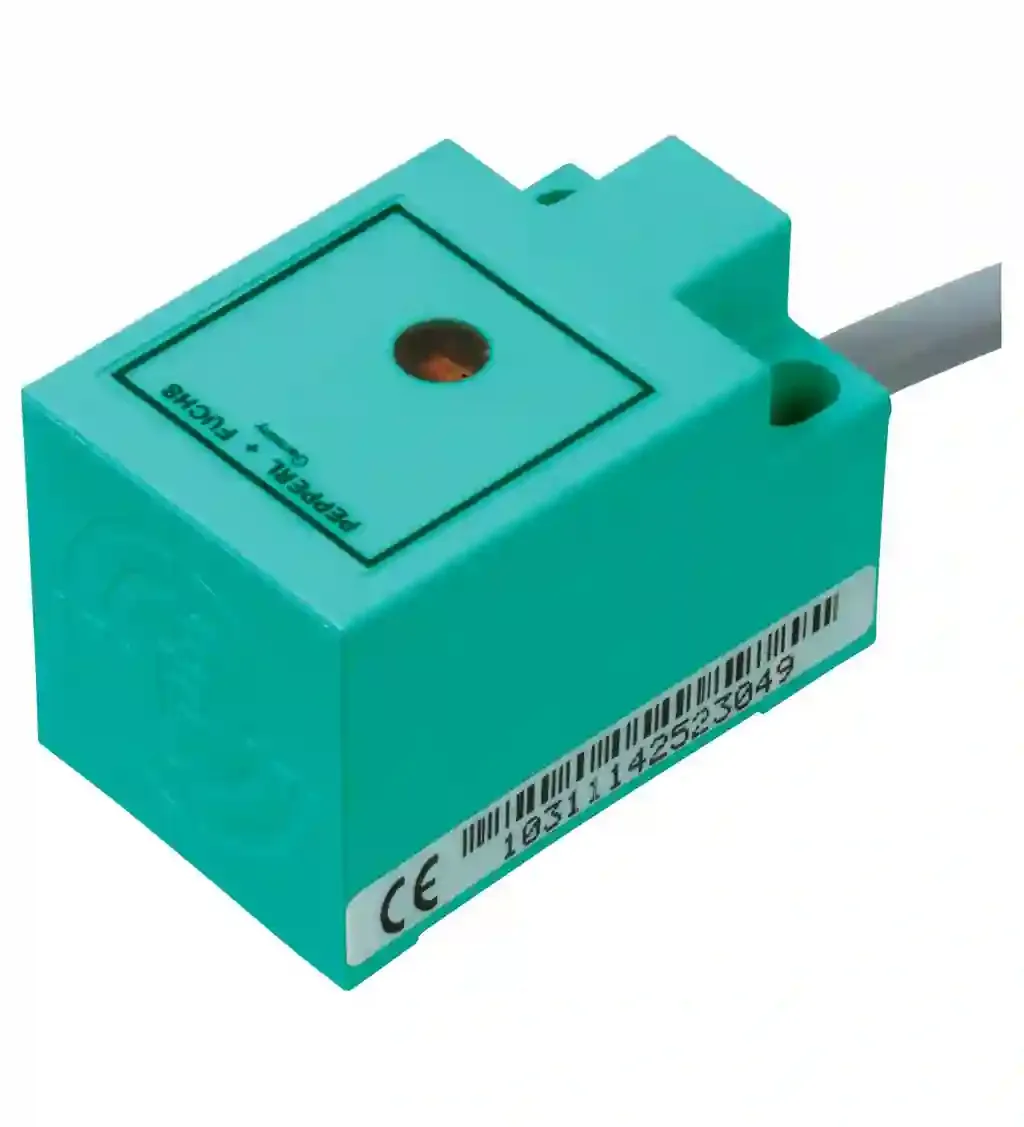

Pepperl Fuchs NBN10-F10-E0

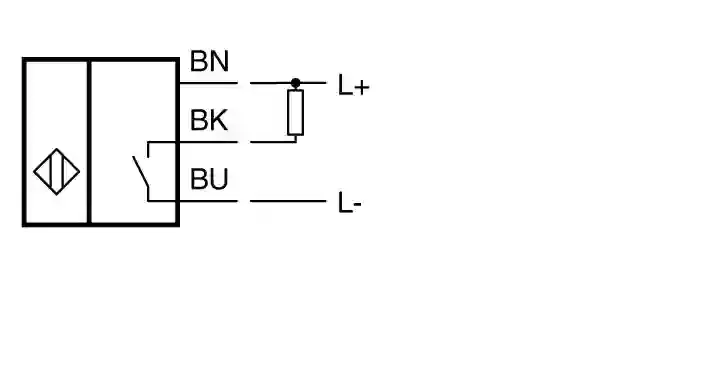

Inductive sensor. Switching function: Normally open (NO), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 10 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 … 8.1 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.2. Reduction factor r304: 0.6. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 500 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 … 100 mA. Off-state current: 0 … 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 15 mA. Switching state indicator: LED, yellow. MTTFd: 3178 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Height25.5 mmWidth25 mmLength38.5 mm: . Height: 25.5 mm. Width: 25 mm. Length: 38.5 mm
