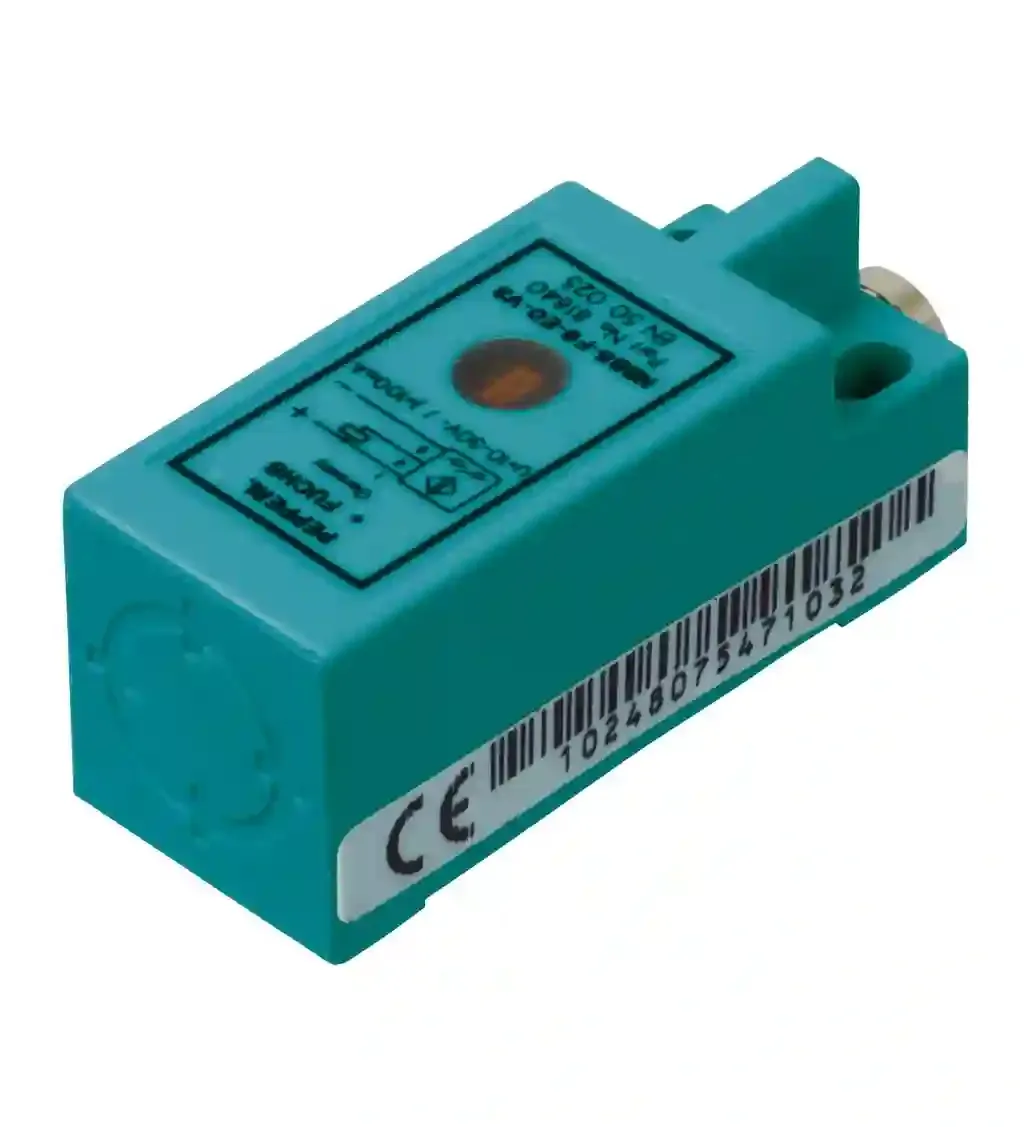

Pepperl Fuchs NBB5-F9-E2-V3

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: Connector plug 8 mm 3-pin , with snap locking, Housing material: PBT, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 4.05 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.2. Reduction factor r304: 0.6. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 500 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 … 150 mA. Off-state current: 0 … 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 15 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 150 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: Connector plug 8 mm 3-pin , with snap locking. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Dimensions: . Height16.5 mmWidth16 mmLength38.5 mm: . Height: 16.5 mm. Width: 16 mm. Length: 38.5 mm
