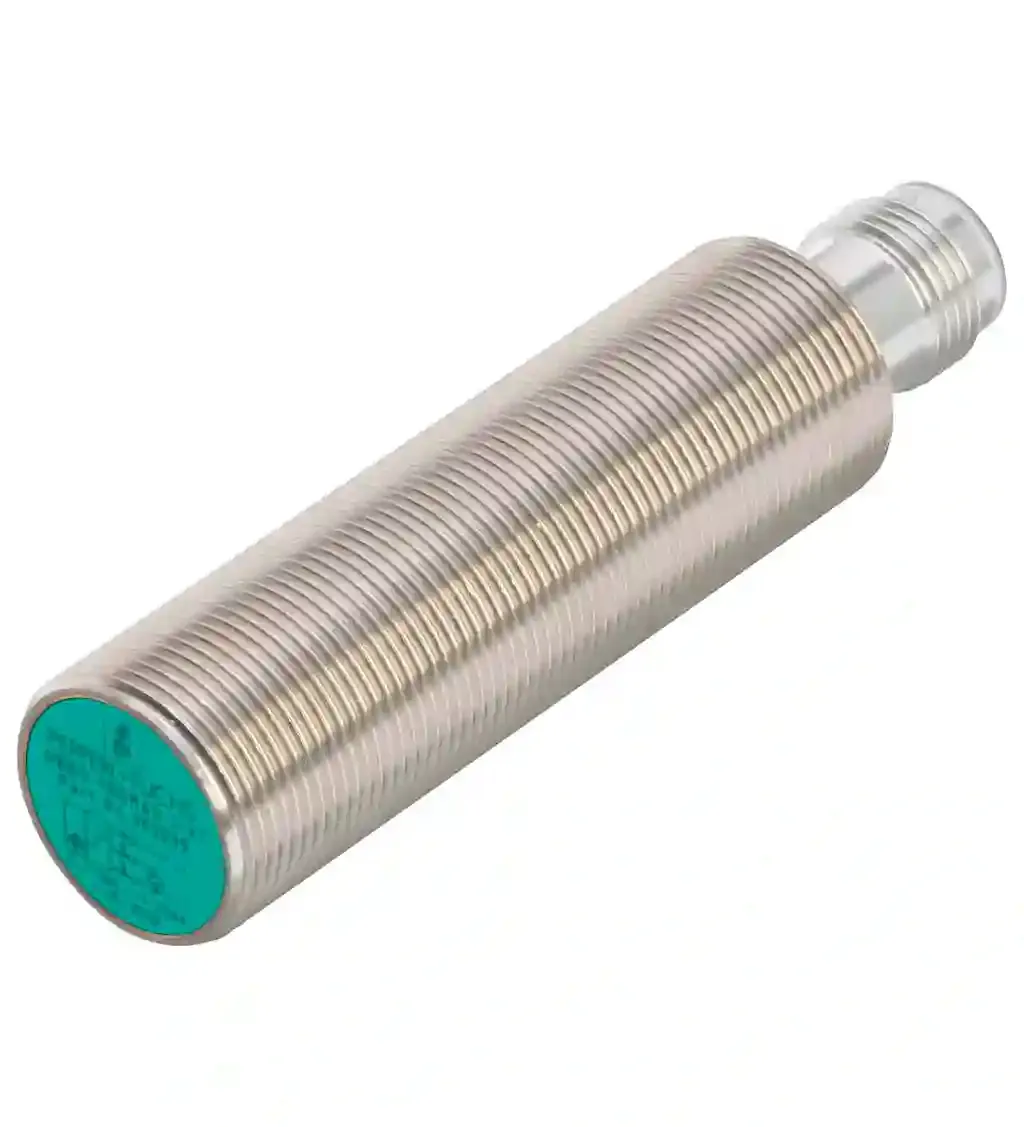

Pepperl Fuchs NBB5-18GM60-I3-V1

Inductive analog sensor. Output type: Analog current output, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 … 30 V DC typ. 20 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, nickel-plated, Degree of protection: IP67, Threading: M12 x 1. Output type: Analog current output. Installation: flush. Output polarity: DC. Measuring range: 1 … 5 mm. Output type: 3-wire. Operating voltage: 10 … 30 V DC typ. 20 V DC. Reverse polarity protection: yes. Repeat accuracy: 0 … 80 µm. No-load supply current: ≤ 12 mA. Output type: 0 … 20 mA. Slope of output characteristic: 5 mA / mm. Linearity error: ≤ ± 5 % of full-scale value. Load resistor: ≤ 1000 Ω typ. 500 Ω. Rate of current rise: . 0 … 20 mAmax. 38.9 A/s20 … 0 mAmax. 13.9 A/s: . 0 … 20 mA: max. 38.9 A/s. 20 … 0 mA: max. 13.9 A/s. Recovery time: 1 … 10 ms , typ. 5 ms. Adjustment tolerance zero point: ≤ ± 5 % of full-scale value. Temperature drift: ≤ ± 0.15 %/K of full-scale value. Residual ripple: ± 125 µA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: Connector plug. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins3: . Threading: M12 x 1. Number of pins: 3. Dimensions: . Length75 mmDiameter18 mm: . Length: 75 mm. Diameter: 18 mm
