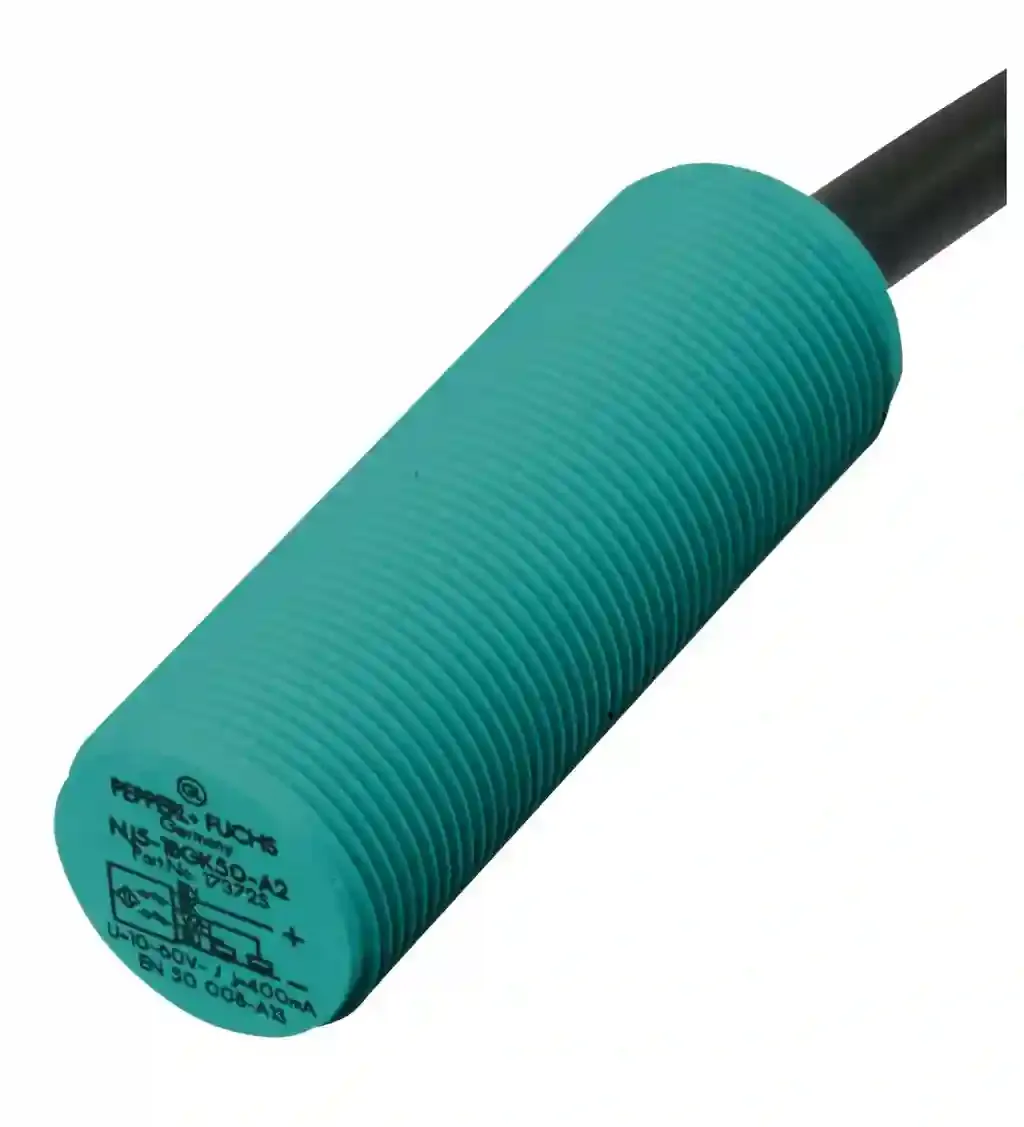

Pepperl Fuchs NBB5-18GK50-E2-10M

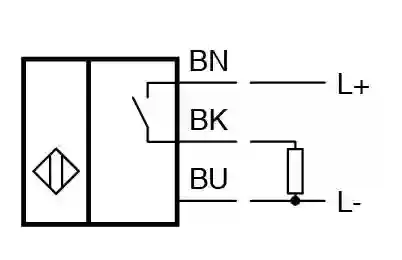

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP68 / IP69K, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 4.05 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.25. Reduction factor r304: 0.7. Reduction factor rSt37: 1. Output type: 3-wire. Operating voltage: 10 … 30 V. Switching frequency: 0 … 1000 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 15 mA. Switching state indicator: LED, yellow. MTTFd: 1894 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP68 / IP69K. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.34 mm2LengthL10 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Length: 10 m. Dimensions: . Length50 mmDiameter18 mm: . Length: 50 mm. Diameter: 18 mm. Note: use only delivered nuts
