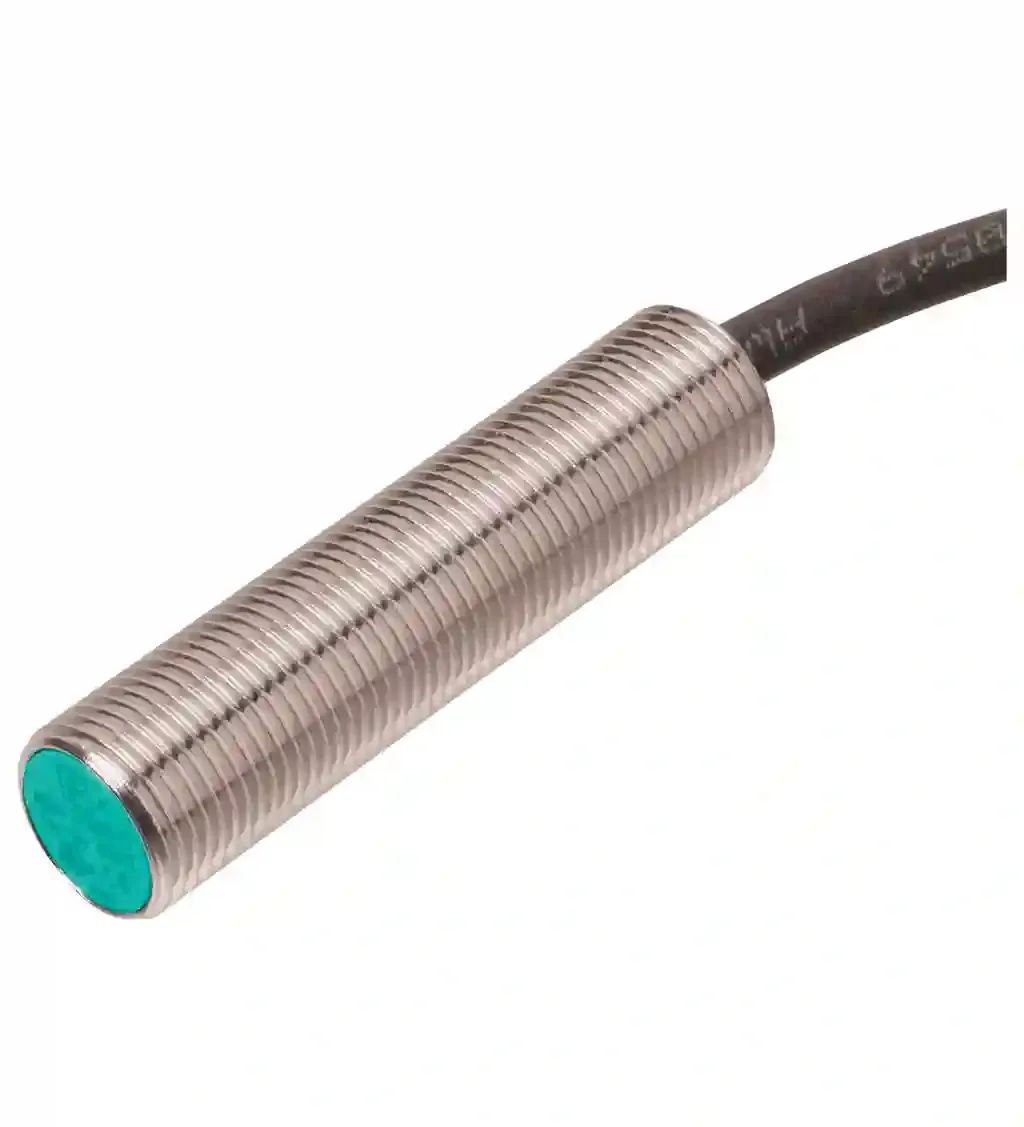

Pepperl Fuchs NBB4-12GM50-E0-M

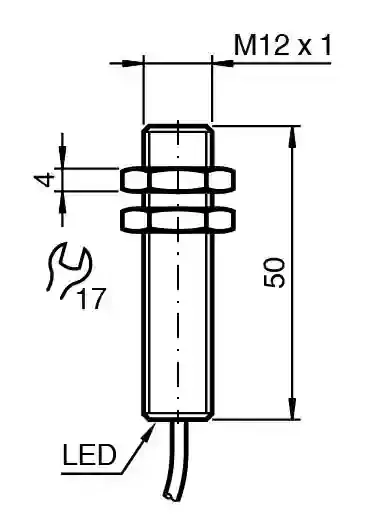

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Ambient temperature: -40 … 85 °C (-40 … 185 °F) , Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP68 / IP69K, Material: PUR. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 4 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 3.24 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.35. Reduction factor r304: 0.75. Reduction factor rBrass: 0.45. Output type: 3-wire. Operating voltage: 5 … 60 V. Switching frequency: 0 … 2500 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Inductive overvoltage protection: yes. Surge suppression: yes. Voltage drop: ≤ 2 V. Rated insulation voltage: 60 V. Operating current: 0 … 200 mA. Off-state current: 0 … 0.5 mA typ. 6 µA at 25 °C. No-load supply current: ≤ 7 mA. Time delay before availability: ≤ 200 ms. Switching state indicator: LED, yellow. MTTFd: 1175 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CSA approval: cCSAus Listed, General Purpose, Class 2 Power Source. CCC approval: Certified by China Compulsory Certification (CCC). E1 Type approval: 10R-06. Ambient temperature: -40 … 85 °C (-40 … 185 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: cable. Core cross section: 3 x 0.75 mm2. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP68 / IP69K. Cable: . Cable diameter6 mm ± 0.2 mmBending radius> 6 x cable diameter , movable installationMaterialPURColorblackLengthL2 m: . Cable diameter: 6 mm ± 0.2 mm. Bending radius: > 6 x cable diameter , movable installation. Material: PUR. Color: black. Length: 2 m. Mass: 120 g. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm
