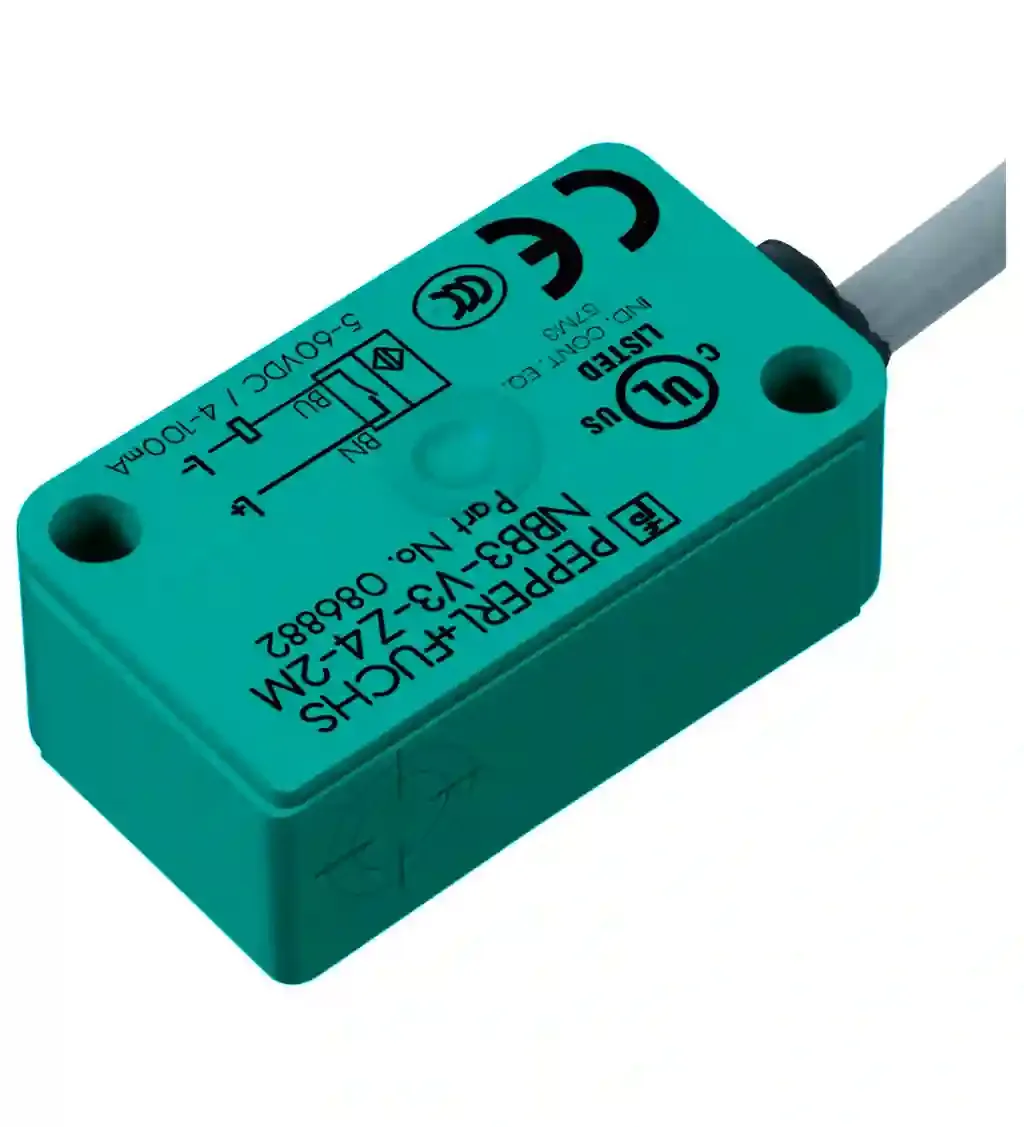

Pepperl Fuchs NBB3-V3-Z4

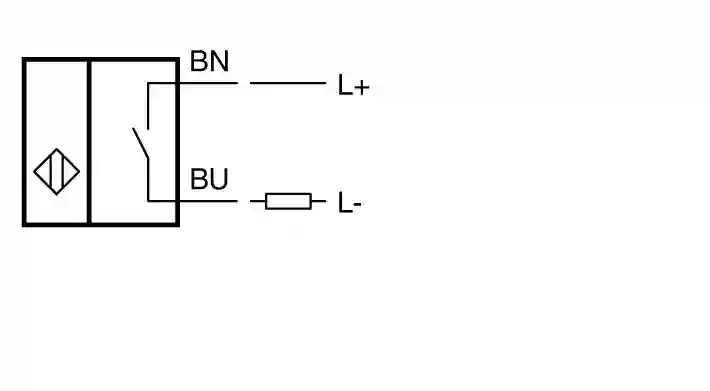

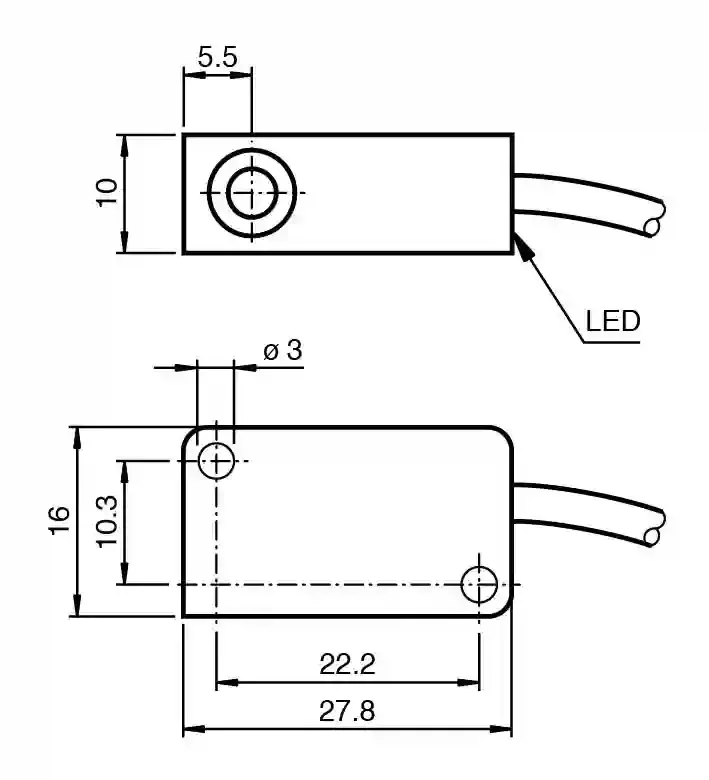

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 5 … 60 V DC, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 3 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 2.4 mm. Actual operating distance: 2.7 … 3.3 mm typ.. Reduction factor rAl: 0.45. Reduction factor rCu: 0.35. Reduction factor r304: 0.8. Reduction factor rBrass: 0.5. Output type: 2-wire. Operating voltage: 5 … 60 V DC. Switching frequency: 0 … 2000 Hz. Hysteresis: typ. 0.2 mm. Reverse polarity protection: reverse polarity protected. Short-circuit protection: no. Inductive overvoltage protection: yes. Voltage drop: ≤ 4 V. Voltage drop at IL: . Voltage drop IL = 10 mA, switching element onUd3.4 … 3.9 V typ. 3.6 V: Ud. Voltage drop IL = 10 mA, switching element on: 3.4 … 3.9 V typ. 3.6 V. Operating current: 4 … 100 mA. Lowest operating current: 4 mA. Off-state current: 0.4 … 0.55 mA typ. 0.46 mA. Time delay before availability: ≤ 1 ms. Switching state indicator: LED, yellow. Tightening torque, fastening screws: 0.4 Nm. MTTFd: 1552 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 100 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 … 85 °C (-13 … 185 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores2Core cross section0.14 mm2LengthL130 mm: . Wire end ferrules: yes. Cable diameter: 3 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 2. Core cross section: 0.14 mm2. Length: 130 mm. Mass: 7.5 g. Dimensions: . Height10.2 mmWidth27.8 mmLength16 mm: . Height: 10.2 mm. Width: 27.8 mm. Length: 16 mm
