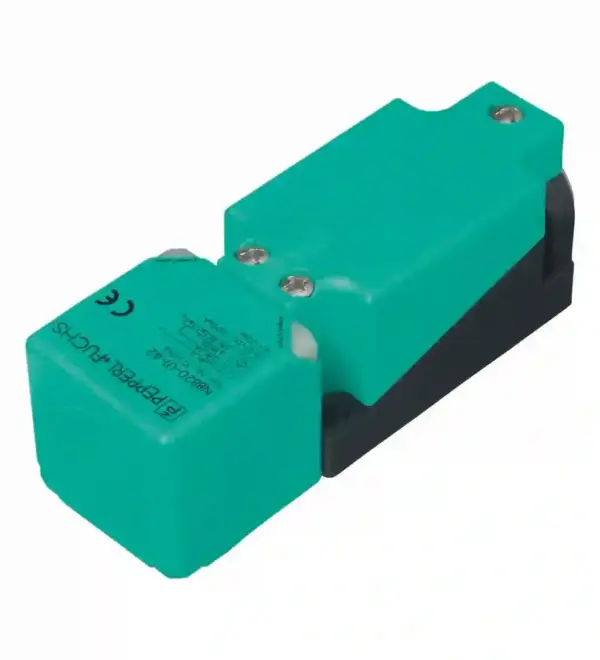

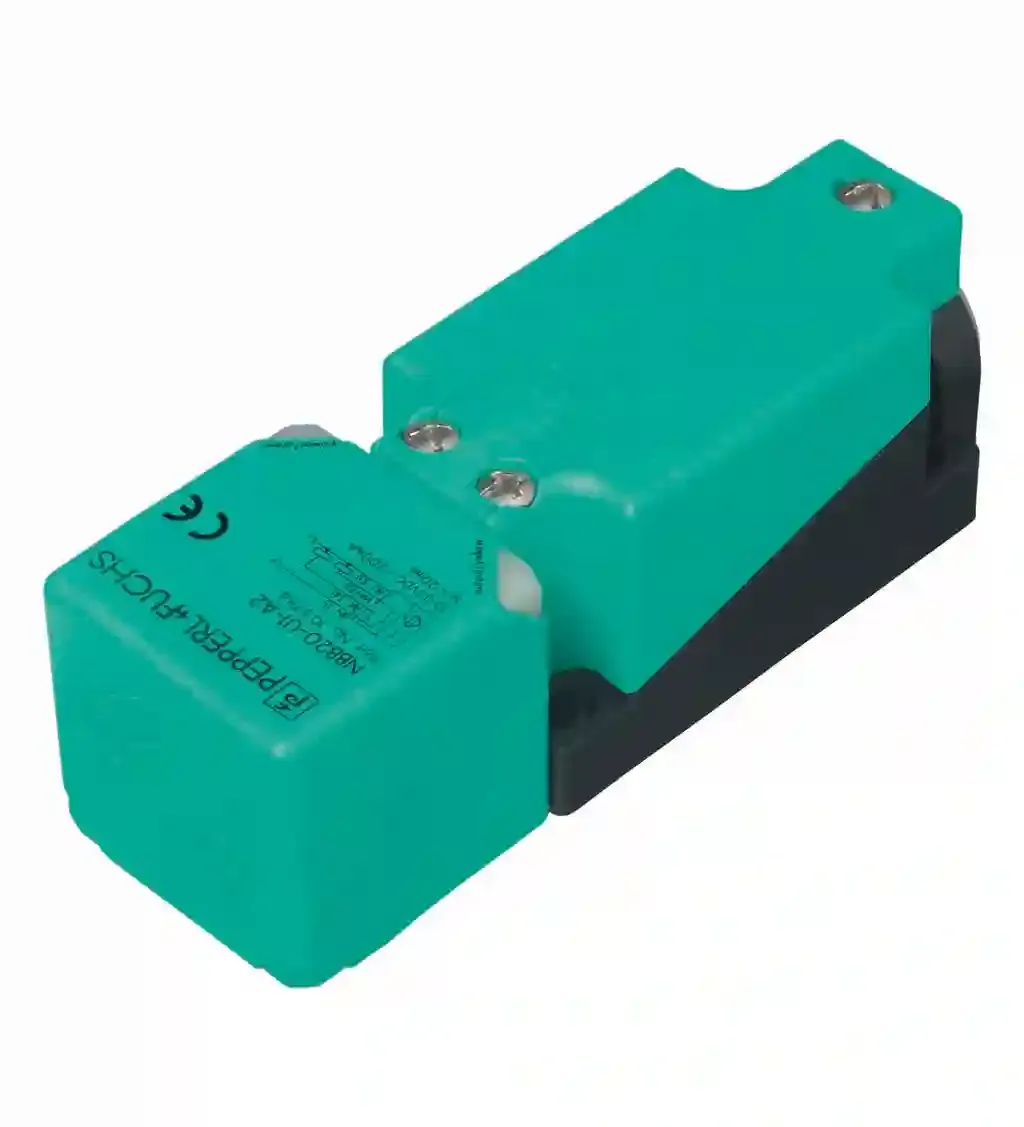

Pepperl Fuchs NBB20-U1-Z2

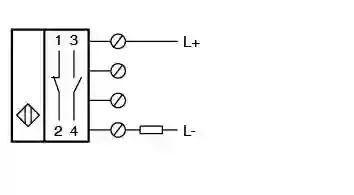

Inductive sensor. Switching function: Normally open/closed (NO/NC), Output type: Two-wire, Installation: flush, Output polarity: DC, Output type: 2-wire, Construction type: VariKont ®, Series: VariKont ®, Operating voltage: 5 … 60 V DC, Type of voltage: DC, Connection type: screw terminals, Housing material: PA/metal with epoxy powder coating, Degree of protection: IP68 / IP69K. Switching function: Normally open/closed (NO/NC). Output type: Two-wire. Rated operating distance: 20 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 … 16.2 mm. Actual operating distance: 18 … 22 mm typ. 20 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.3. Reduction factor r304: 0.7. Output type: 2-wire. Operating voltage: 5 … 60 V DC. Switching frequency: 0 … 250 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Short-circuit protection: yes. Voltage drop: ≤ 5 V. Voltage drop at IL: . Voltage drop IL = 100 mA, switching element onUd… 5 V: Ud. Voltage drop IL = 100 mA, switching element on: … 5 V. Operating current: 2 … 200 mA. Off-state current: 0 … 0.5 mA. Switching state indicator: 2 LED, yellow. MTTFd: 1162 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 … 85 °C (-13 … 185 °F). Connection type: screw terminals. Information for connection: A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %. Core cross section: up to 2.5 mm2. Minimum core cross-sectionwithout wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2Maximum core cross-sectionwithout wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2: . Minimum core cross-section: without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2. Maximum core cross-section: without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2. Housing material: PA/metal with epoxy powder coating. Sensing face: PA. Housing base: plastic. Degree of protection: IP68 / IP69K. Mass: 225 g. Dimensions: . Height40 mmWidth40 mmLength118 mm: . Height: 40 mm. Width: 40 mm. Length: 118 mm. Note: Tightening torque: 1.8 Nm (housing)
